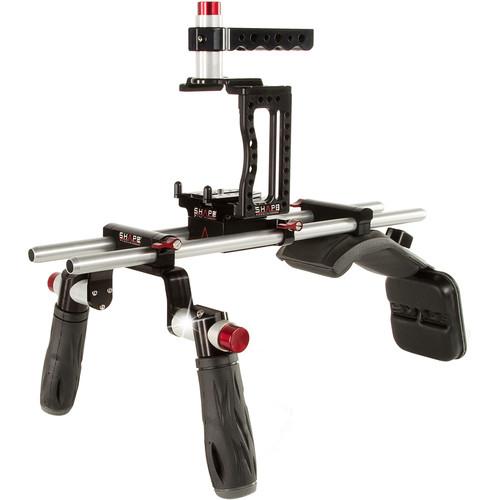

User Manual for SHAPE XC10SM XC10 Camera Cage with Shoulder Mount Kit Click to enlarge the picture
Contents of the user manual for the SHAPE XC10SM XC10 Camera Cage with
- Product category: Camcorder Supports & Rigs SHAPE
- Brand: SHAPE
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SHAPE Camcorder Supports & Rigs
|
User manual for the SHAPE XC10SM XC10 Camera Cage with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SHAPE product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SHAPE user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SHAPE product will considerably shorten its lifespan!
|
Product description The XC10SM XC10 Camera Cage with Shoulder Mount Kit from SHAPE features the XC10 Camera Cage, Quick Handle with Rod Bloc, Mini Composite Shoulder Pad, Back Pad, and two 18” 15mm rods. This kit is designed for using the Canon XC10 camera on the shoulder.The cage allows for access to all the controls and ports on the camera. It also includes a black knob to secure and protect the HDMI cable. The cage features 1/4"-20 and 3/8"-16 threaded holes for attaching accessories, and the included top handle also has threaded holes. With push-button technology, this cage allows fast and easy 360° rotation adjustment with one push of the button. The top of the cage also allows access to the hot shoe on the camera. Built using CNC machined aluminum, this cage is strong and durable. The cage also features a quick release plate which allows for fast removal of the camera from the baseplate and cage. The quick release plate is balanced for the optical center of the camera.The Quick Handle with Rod Bloc features two independent handles that can rotate 360°. The push-button technology allows the handle to rotate on the push of the button. You can achieve precise positioning by sliding the Quick Handle along the included 18" 15mm rods and securing the handles by tightening the single red knob on the rod bloc.The included Mini Composite Shoulder Pad is suitable for switching rapidly from a camera rig to a tripod without having to remove the shoulder pad. It is padded for comfort and can remain on the rig permanently. This kit also includes the Back Pad, which is powder coated for a professional look and is padded on one side to offer comfort and stability. The position of the Back Pad can be adjusted to suit your body type with a vertical adjustment of 2" and a horizontal adjustment range of 360°. Canon XC10 Cage with Quick Release Baseplate - Top handle with push-button technology
- Features 1/4"-20 and 3/8"-16 threaded holes for connecting accessories
- CNC machined aluminum body for durability
Quick Handle with Rod Bloc - Compatible with 15mm rods
- Single red knob for fast and easy adjustment
- Quick release handgrips, with three points of adjustment
- Ergonomic handles with rubber handgrips for stability and precision
- Spring loaded push-button technology for fast adjustment
- Individual rotation on a 360° axis
- CNC machined parts and hard anodized aluminum for resistance
- Stainless steel locking mechanism for durability
Mini Composite Shoulder Pad - Single red knob for fast, easy adjustment
- Features a 1/4"-20 threaded hole at the back
- Hard anodized aluminum for resistance
Back Pad - Padded on one side for comfort
- Features two 1/4"-20 threaded holes
- Supports SHAPE box attachment
- Easy attachment and removal
- Hard anodized aluminum for resistance
UPC: 629266004883 In the Box SHAPE XC10SM XC10 Camera Cage with Shoulder Mount Kit XC10 Camera Cage Quick Handle + Rod Block Mini Composite Shoulder Pad Back Pad 15mm Rods (18", Pair) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SHAPE XC10SM XC10 Camera Cage with Shoulder Mount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSHAPE XC10 Specs | For Use with | Canon XC10 camera (not included) | | Dimensions | Maximum Length: 24" (61 cm)
Height: 14.5" (36.8 cm)
Width: 12" (30.5 cm) for the handle and 4" (10.2 cm) | | Weight | 5.4 lb (2.4 kg) | | | | Package Weight | 5.8 lb | | Box Dimensions (LxWxH) | 21.0 x 7.5 x 4.6" |
