User Manual for Sharp AQUOS BOARD PN-C605B 60" Interactive Display System Click to enlarge the picture
Contents of the user manual for the Sharp AQUOS BOARD PN-C605B 60" Interactive
- Product category: Digital Whiteboards Sharp
- Brand: Sharp
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sharp Digital Whiteboards
|
User manual for the Sharp AQUOS BOARD PN-C605B 60" Interactive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sharp product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sharp user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sharp product will considerably shorten its lifespan!
|

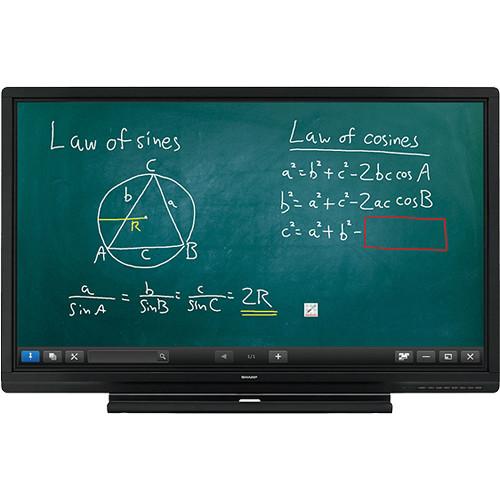

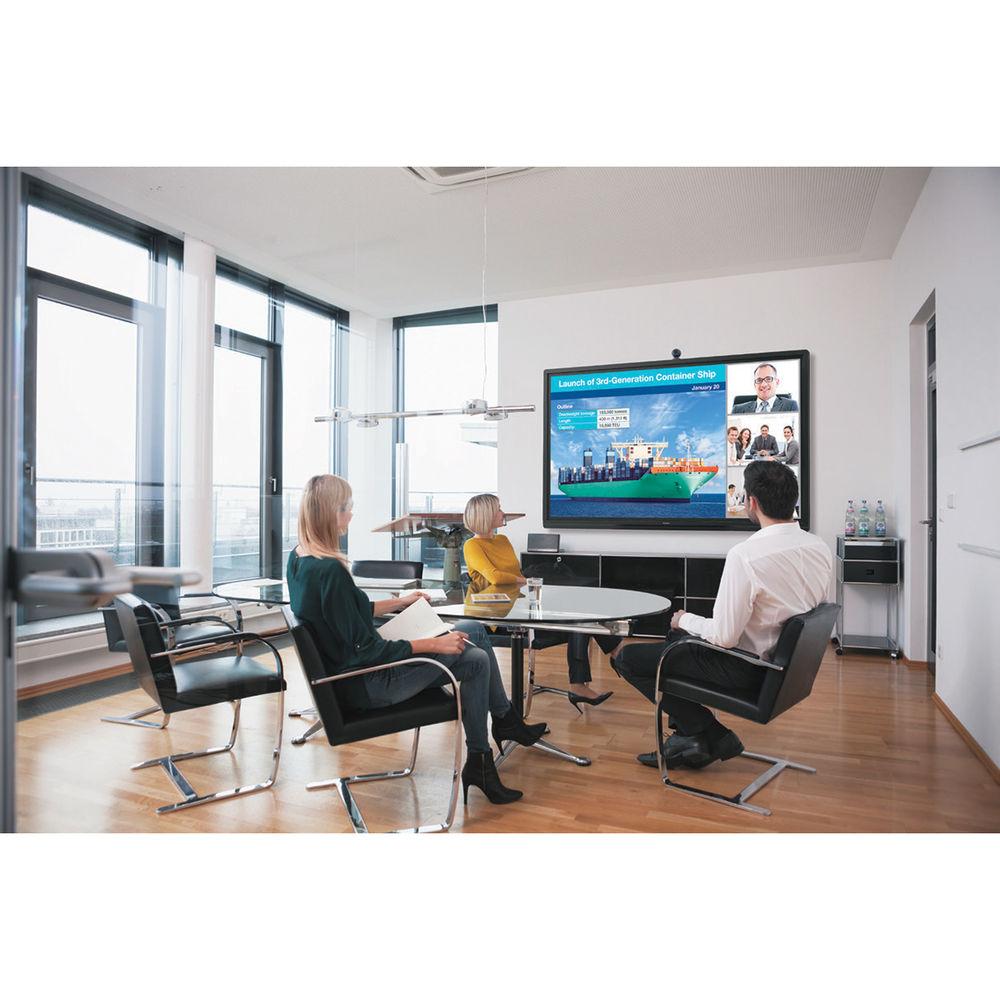

Product description Make your meetings, classrooms, and web-conferences more engaging and interactive with the Sharp AQUOS BOARD PN-C605B 60" Interactive Display System. With a full HD resolution of 1920 x 1080, the display ensures that detailed text and images are reproduced vividly and accurately. The AQUOS BOARD can recognize 10 touch points and allows up to four users to write at the same time. Two built-in speakers let you hear audio accompanying videos or other content. - User-Friendly SHARP Pen Software
- The easy-to-launch SHARP Pen Software user interface incorporates a menu comprising smartly arranged icons that provide easy access to pen settings and other useful functions. In overlay mode, you can write onscreen annotations or graphics directly onto photos, videos, Adobe PDFs, and common Microsoft Office files. Text and graphics written on the board can be stored in USB memory or sent directly via email to selected recipients. The software links smoothly with the PowerPoint application, enabling you to perform various control operations during slideshow presentations.
- MFP Connectivity
- Documents and images scanned from a compatible Sharp MFP can be imported directly to the SHARP Pen Software for display on the AQUOS BOARD interactive displays. For added convenience, image data shown onscreen, including notations, can be saved to a PC or sent directly to an MFP for printout.
- Handwriting Recognition
- SHARP Pen Software features a handwriting recognition function that converts selected onscreen handwriting into standard text. It can also recognize handwritten shapes such as circles, triangles, and straight lines, and automatically convert them into objects.
- SHARP Touch Viewer
- This Sharp software lets you easily view, manipulate, and annotate various kinds of files, including Microsoft files, PDFs, web pages, and image and video files. All of these can be displayed on the screen as "sheets." There's no need to open the respective applications, and you can present all the different files simultaneously in the same work area. The onscreen layouts of sheets can be stored for later retrieval, so you can easily restart a discussion where you left off.
- SHARP Display Connect
- This software is especially effective for communications with large audiences. By allowing the AQUOS BOARD interactive displays to share their onscreen content with up to 50 devices, and by enabling the exchange of files between those devices, SHARP Display Connect facilitates lively discussions and paperless meetings in both business and educational settings.
- Direct Bonding Technology
- With direct bonding technology, the interactive displays provide a consistent and natural feeling when you write on the screen. The LCD panel is bonded directly to the protective glass layer, thereby eliminating the air gap between them. This minimizes the parallax difference and reduces the reflection and refraction of light. As a result, onscreen touch and writing operations are smooth and the display looks natural and offers clear visibility.
- Minimize Glare and Fingerprints
- Protecting the glass screen is an anti-glare film that works to reduce glare and reflections and minimize fingerprint soiling. Even in brightly lit rooms, documents and teaching materials are easy to read.
- User-Focused Design
- Safe curved corners
Four removable carrying handles CUD compliant - Webcam Mounts
- A web camera can be attached easily to one of three mounting positions: one on the top-center of the frame, and one each on the left and right parts of the pen tray. This gives you flexibility when setting up a videoconferencing system.
UPC: 074000066533 In the Box Sharp AQUOS BOARD PN-C605B 60" Interactive Display System AC Power Cord Touch Pen Remote Control 2 x AAA Batteries 2 x Cable Clamps USB Cable Eraser Pen Tray and Mounting Screws Camera Mount and Screws Software CD 2 x Stand Hole Protection Covers Blank Sticker Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sharp AQUOS BOARD PN-C605B 60" Interactive Display System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

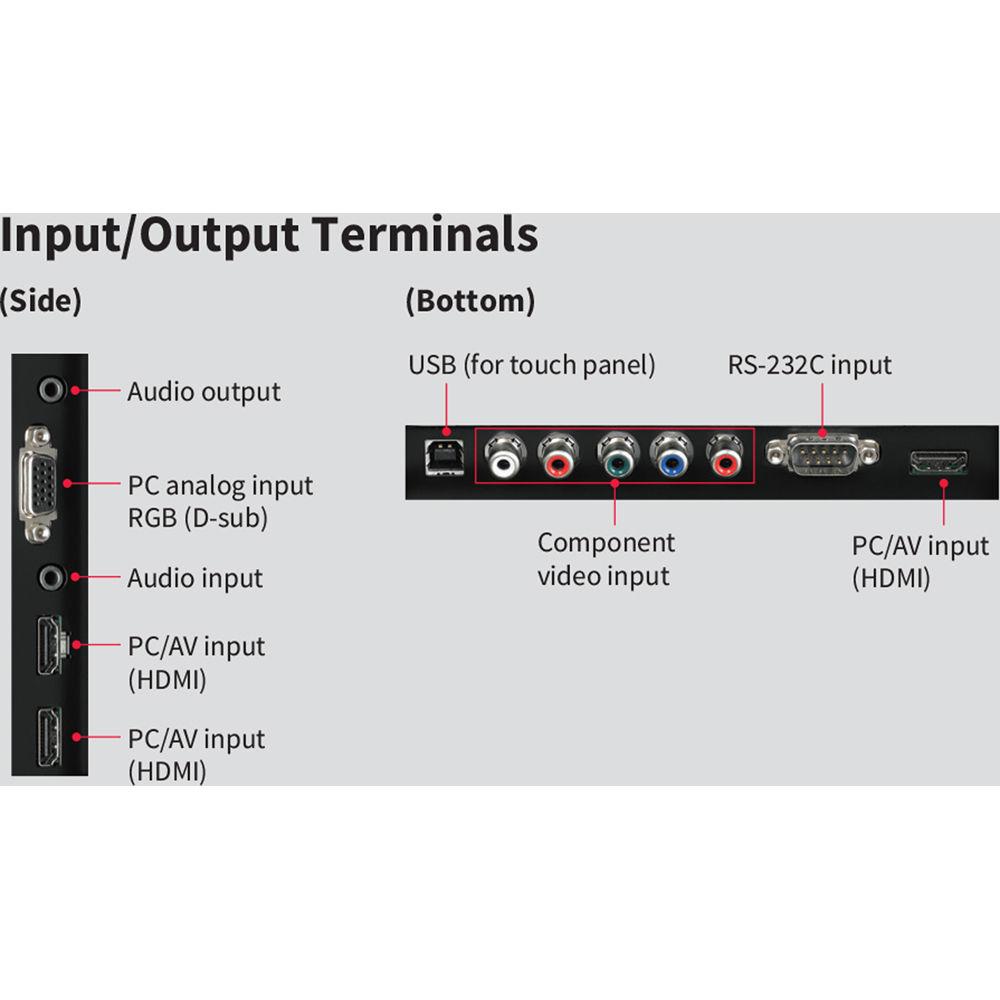

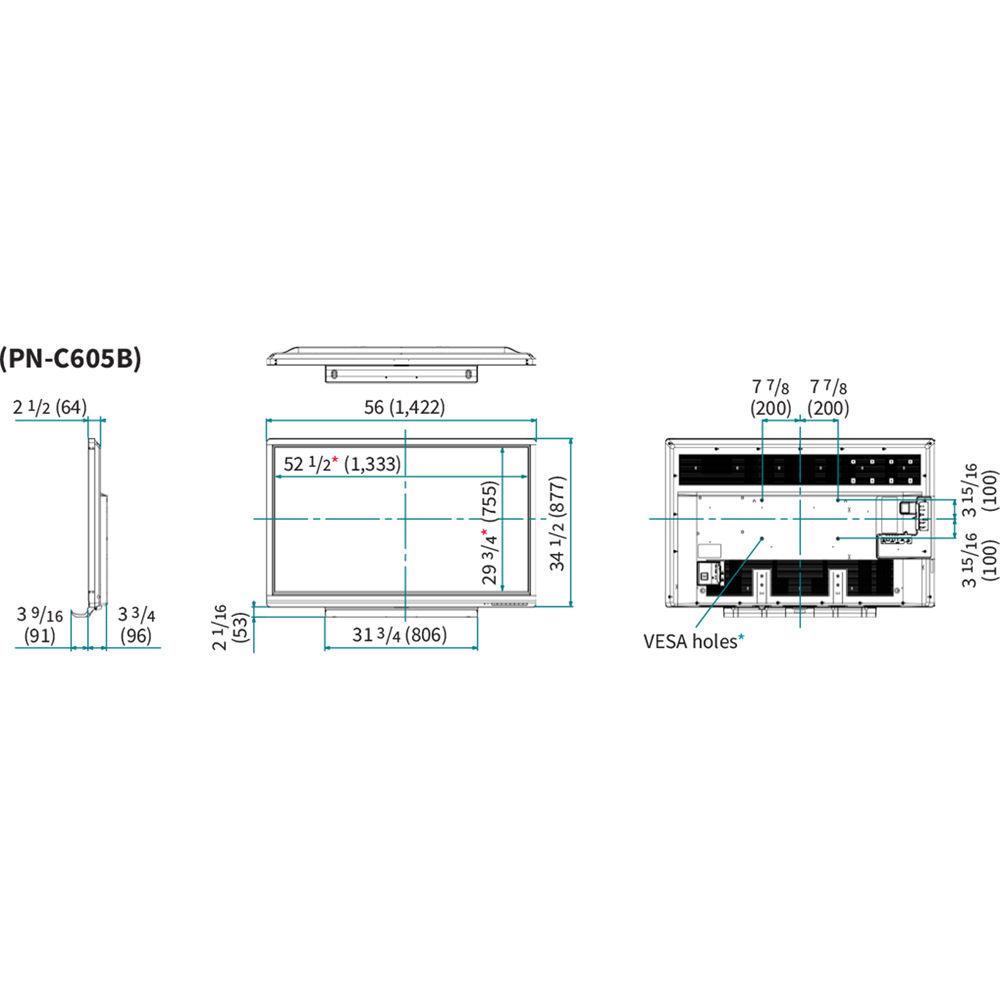

Technical parametersSharp AQUOS BOARD Specs | Installation | Landscape | Screen Size | 60.13" (152.7 cm) | LCD Type | UV²A LCD | Max Resolution | 1920 x 1080 pixels | Max. Display Color | 16.77 million colors | Pixel Pitch | 0.693 x 0.693 | Duty Cycle | 16 hours/day | Brightness | 350 cd/m² | Contrast Ratio | 5000:1 | Viewing Angle | 176 x 176° (CR≥10) | Active Screen Area | 52.38 x 29.44" (133.0 x 74.78 cm) | Response Time | 4 ms (gray to gray, average) | Backlight | LED, edge lit | Color System | Video: NTSC (3.58 MHz) / NTSC (4.43 MHz) / PAL / PAL60 / SECAM | | Touch Technology | IR (infrared blocking detection method) | PC Connection | Port: USB 2.0 Type-B | Power Supply | Supplied from USB port | Multi-Touch | 10 points | Glass | Thickness: Approx. 3.1 mm Shock Resistance: 51.1" (130 cm) | | Computer Input | Video: Analog RGB (0.7 Vp-p) 75 Ohms Synchronization: Horizontal/vertical separation (TTL: positive/negative) Plug & Play: VESA DDC2B | Inputs | 1 x 15-pin D-sub mini 3 x HDMI (HDCP and 1080p compatible, PC / AV signal compatible) 1 x 3.5 mm mini stereo phone jack 1 x RCA audio (L/R) 1 x RCA component/composite video 1 x RS-232C 9-pin D-sub | Output | 1 x 3.5mm mini stereo phone jack | Speaker Output | 10 W + 10 W | | Mounting | VESA (4 points), 400 x 200 mm, M6 screw | Power Supply | 100-240 VAC, 50/60 Hz | Power Consumption | 135 W | Operating Temperature | 41 to 95°F (5 to 35°C) | Operating Humidity | 20 to 80% RH (no condensation) | Dimensions | 56.00 x 3.75 x 34.50" (142.2 x 9.5 x 87.6 cm) | Weight | 94.8 lb (43 kg) | | Package Weight | 113.5 lb | Box Dimensions (LxWxH) | 61.0 x 39.0 x 10.0" |
