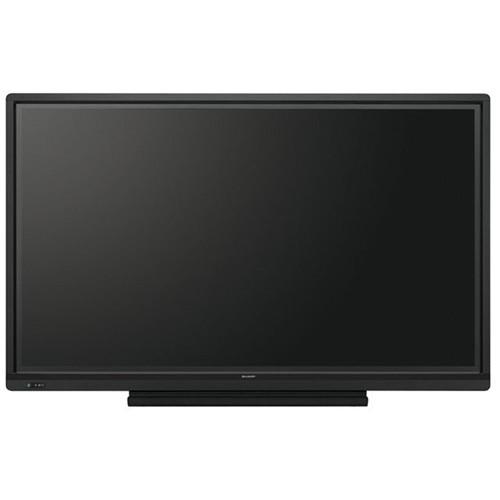

User Manual for Sharp AQUOS BOARD PN-L703B 70" Edge-Lit LED Backlight Interactive Display System Click to enlarge the picture
Contents of the user manual for the Sharp AQUOS BOARD PN-L703B 70" Edge-Lit
- Product category: Digital Whiteboards Sharp
- Brand: Sharp
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sharp Digital Whiteboards
|
User manual for the Sharp AQUOS BOARD PN-L703B 70" Edge-Lit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sharp product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sharp user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sharp product will considerably shorten its lifespan!
|
Product description Make your meetings, classrooms, and web-conferences more engaging and interactive with the Sharp AQUOS BOARD PN-L703B 70" Edge-Lit Interactive Display System. The AQUOS BOARD enables up to 50 people to collaborate on mobile devices such as PCs, tablets and smartphones. Up to four users can write at the same time. A 10-point touch screen supports multiple gestures and works with touch pens. Sharp Touch Display Link software (included) is used for multifaceted wireless communication. Simultaneous Writing - 10-point touch LCD panel allows up to 4 people to write on the screen at the same time using touch pens or fingers
- Participants can take an active part in meetings, brainstorming sessions, classroom interactions, and more
- Discussions and presentations become more interactive
User-Friendly Pen Software Interface - Using a touch pen, you can easily launch and display the Pen Software user interface, a menu that provide easy access to pen settings and functions
- Each touch pen has its own dedicated menu, which can be displayed even when up to 4 people are writing on the screen at the same time
- Supports 11 languages (English, German, Spanish, French, Italian, Dutch, Portuguese, Russian, Simplified Chinese, Traditional Chinese, and Japanese)
Smooth and Responsive Touch Pen - A pressure sensor at the tip of this slim and lightweight pen lets you write with high precision and with an effortless and uninterrupted flow
Handwriting Recognition - The LCD monitor features a handwriting recognition function for converting selected onscreen handwriting into standard text
- This function allows you to utilize onscreen content to make neat and legible minutes of your meetings
Touch-Operated OSD - Pressing the Touch Menu button displays an onscreen menu that lets you easily switch input sources, change volume level, or turn the touch-screen function on and off without using a remote controller
- Front-Mounted Speakers
- Two speakers (10W + 10W) are mounted low on the front of the LCD monitor to deliver clearer sound
Input/Output Terminals - The LED monitor comes standard-equipped with input/output terminals on the side and the bottom of the monitor to enable easy connection with a wide variety of equipment
- Array of terminals includes three HDMI ports, two D-Sub ports, two DisplayPort terminals (one input, one output), and two USB ports for use with the touchscreen
- One of the USB ports can be assigned to a regularly connected PC, such as a host PC used to operate the LCD; the other USB port facilitates temporary connection to another PC, such as the one used by a meeting participant. This allows easy PC connection without the need to switch the USB cable
Minimize Glare and Fingerprints - Protecting the screen is an anti-glare film that helps to reduce glare and reflections and minimize fingerprints on the glass
MFP Connectivity - Documents and images scanned from a color-scan-capable Sharp multi-function printer (MFP) can be imported directly to the Sharp Pen Software for display on the AQUOS BOARD system
- The image data shown onscreen, including notations, can be saved to a PC or sent directly to an MFP for printout
Touch Display Link Software - The software enables the following interactive functions on the AQUOS BOARD display and mobile devices connected via wireless LAN: Sharing of onscreen content, transfer of files, interactive onscreen writing and drawing, and remote control of the AQUOS BOARD display from mobile devices
- Up to 50 mobile devices can be connected simultaneously
- Files can be exchanged between mobile devices even if they are not connected to the AQUOS BOARD display
- Users can capture onscreen images and save them on their mobile devices to make personally annotated memos (personal memo)
- Touch Display Link also connects two AQUOS BOARD interactive display systems on the same network (intranet, VPN, etc.) to enable larger-scale interactive communications
UPC: 074000069589 In the Box Sharp AQUOS BOARD PN-L703B 70" Edge-Lit LED Backlight Interactive Display System AC Power Cord Remote Control Unit 2 x Battery (AA size) Blank Sticker 5 x Cable Clamp Camera Mount 9.8' USB Cable Eraser Pen Tray Touch Pen (without Function Button) Touch Display Link 2.0 Software CD-ROM Limited 3-Year Warranty on Parts, Labor, and Backlight Table of Contents
|
Upload User Manual
Have you got an user manual for the Sharp AQUOS BOARD PN-L703B 70" Edge-Lit LED Backlight Interactive Display System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSharp PN-L703B Specs | | | Screen Size (Diagonal) | 70" | | Active Area | 60.5 x 34" / 154 x 86 cm | | | | Touchscreen Technology | Infrared (IR) | | Multi-Touch Points | 10 | | Native Resolution | 1920 x 1080 | | Panel Type | Unspecified LCD | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 300 cd/m² | | Viewing Angle (H x V) | 160 x 160° | | Aspect Ratio | 16:9 | | Contrast Ratio | 3000:1 | | Response Time | 6 ms (GtG) | | Backlight Technology | Edge LED | | Pixels Per Inch (ppi) | .016203 ppi | | Video System | PAL / SECAM | | | | Input Ports | 1 x DisplayPort – Video
2 x 1/8" / 3.5 mm – Audio
2 x 15-Pin VGA – Video
3 x HDMI – Video | | Output Ports | 1 x 1/8" / 3.5 mm – Audio
1 x DisplayPort – Video | | USB Ports | 1 x USB (Version Unspecified) Type-A
2 x USB 2.0 Type-B | | | | Operating System Support | Windows | | | | Power Consumption | 185.0 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Glass Thickness | 0.1" / 3 mm | | Wall Mounting | 400 x 200mm | | Certifications | FCC, UL, cUL, as per Manufacturer | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Operating Humidity | 20 to 80% | | Dimensions | 64.8 x 39.8 x 3.7" / 165.0 x 101.0 x 9.4 cm | | Weight | 130 lb / 59 kg | | | | Package Weight | 154.3 lb | | Box Dimensions (LxWxH) | 73.0 x 44.0 x 11.0" |
