User Manual for Sharp PN-L401C AQUOS BOARD 39.5" Full HD LED Digital Signage Touchscreen Display Click to enlarge the picture
Contents of the user manual for the Sharp PN-L401C AQUOS BOARD 39.5" Full
- Product category: Commercial Monitors Sharp
- Brand: Sharp
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sharp Commercial Monitors
 |
User manual for the Sharp PN-L401C AQUOS BOARD 39.5" Full contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sharp product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sharp user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sharp product will considerably shorten its lifespan!
|

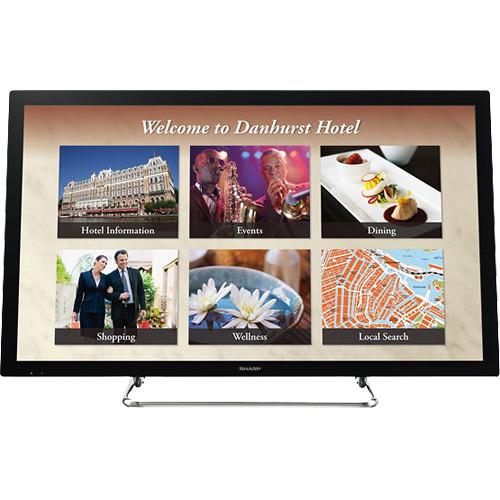

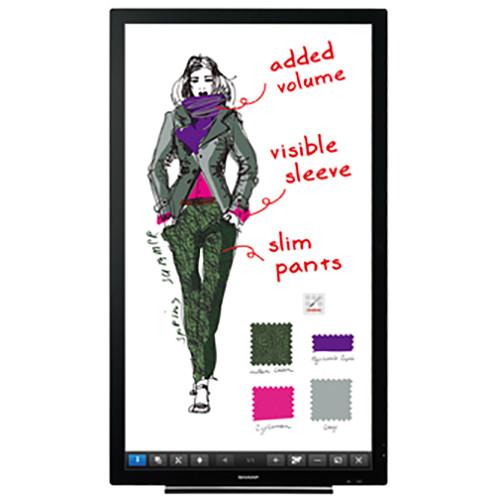

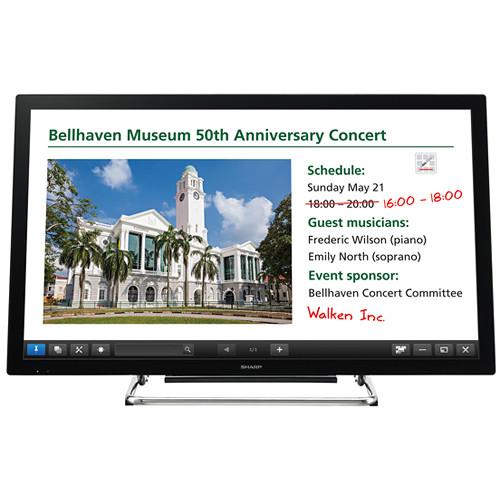

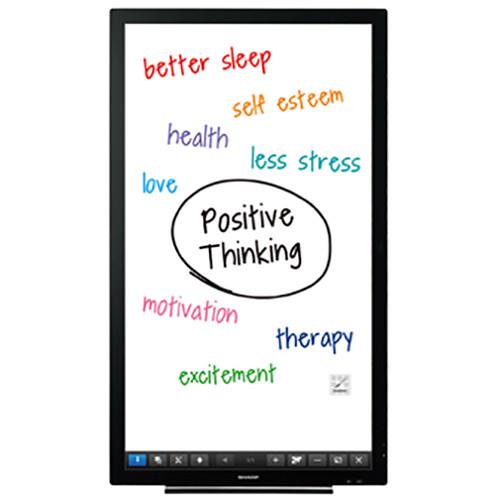

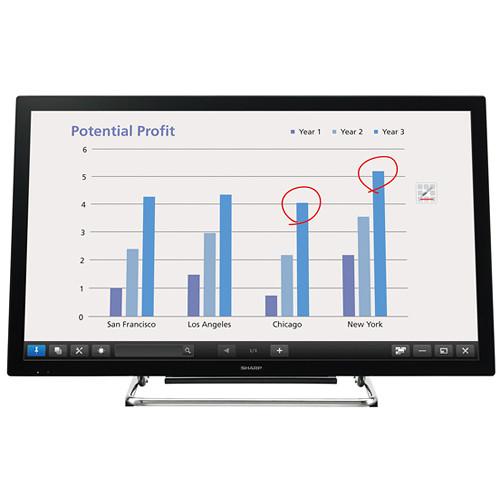

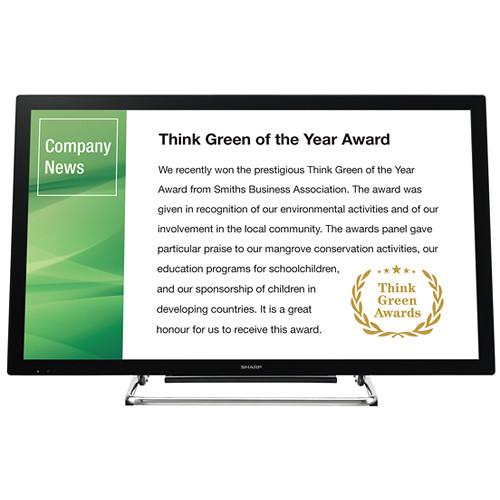

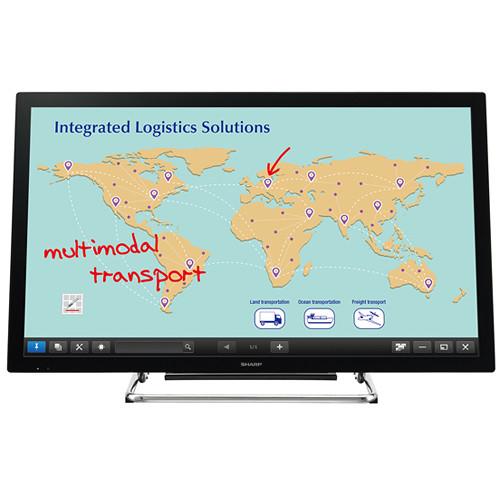

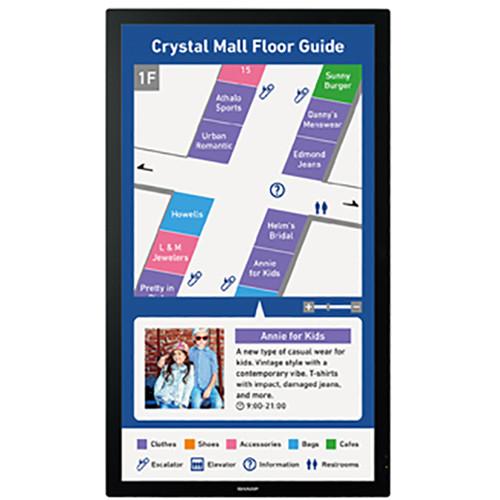

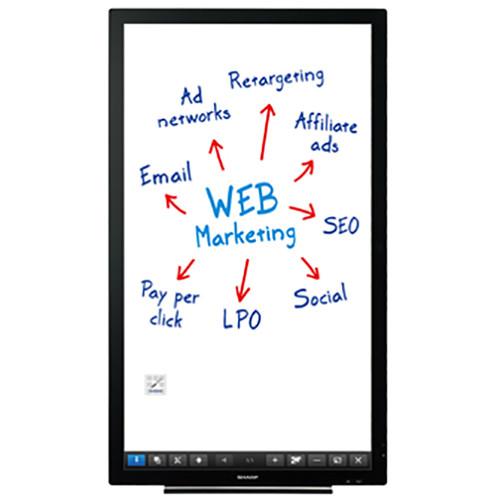

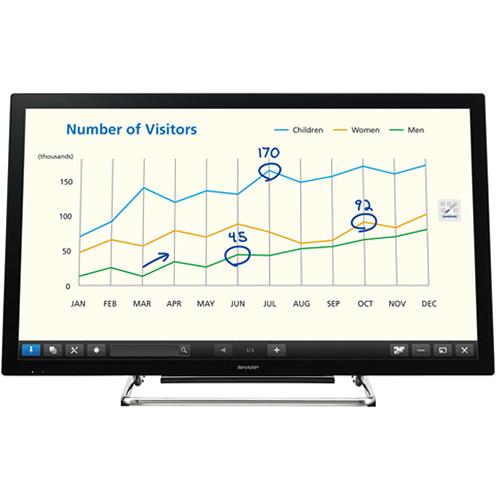

Product description The PN-L401C 39.5" Full HD LED Digital Signage Touchscreen Display from SHARP is suitable for huddle space meetings in smaller areas for two to six people. This display has a 10-point multi-touch functionality and high-sensitivity capacitive touch technology. It can be installed face-up, in a landscape, or portrait orientation. The glass screen is protected by an anti-glare film that not only minimizes fingerprints, but also reduces glare and reflections in brightly-lit areas for enhanced visualization. In addition, the display can be operated with a finger or pen. With the optional wireless board, you can also have BYOD (Bring Your Own Data) meetings. This interactive display system can also be used in meeting rooms and learning areas enhancing collaboration and group learning sessions. The SHARP Pen Software works with the display in both landscape and portrait orientations. The interactive display can also be used as a bulletin board or flip chart. You can import data to display, write on it by hand, and save your handwritten notes digitally for later reuse. The display comes with a mount for web camera and stand for desktop set-up (landscape orientation). The display includes an expansion slot compatible with the Intel Mini Open Pluggable Specification (Mini OPS). This slot supports the addition of an optional wireless or HDBaseT receiver board. In addition, the display offers an operation time of 16 hours. Full HD Touchscreen LCD - The display employs a full-flat design with 10-point multi-touch functionality. It provides a quick response for writing and touch gestures and maximum resolution of 1920 x 1080.
Responsive and Intuitive Operation - The display uses a capacitive touch technology and comes with 2mm-tip touch pen that facilitates communication by supporting accurate onscreen writing of fine text and lines. An onscreen touch menu lets you easily switch inputs, change between touch and pen modes, and access other frequently used functions. The screen surface uses anti-glare glass, which resists fingerprints, and also reduces glare and reflections.
MFP Connectivity - Scanned documents can be directly imported to SHARP Pen Software from a compatible Sharp MFP (multi-function printer). Onscreen image data, including handwriting can be sent to a PC for storage or to an MFP for printing.
SHARP Touch Viewer Software - The Touch Viewer software lets you manipulate a variety of different files on the screen without actually opening the respective applications. The files are displayed onscreen as sheets and can be stored in onscreen virtual drawers.
Note: Viewable Files: Microsoft Office (Excel, Word, PowerPoint), PDF, JPEG/PNG/BMP/TIFF, and WMV/AVI/MP4/FLV. SHARP Pen Software - The SHARP Pen Software user interface incorporates a menu comprising smartly arranged icons that provide easy access to pen settings and other useful functions. In overlay mode, you can write onscreen annotations or graphics directly onto photos, videos, PDFs, and common Microsoft files. Text and graphics written on the interactive display can be stored in USB memory or sent directly via email to selected recipients. The software links smoothly with the PowerPoint application, enabling you to perform various control operations during slideshow presentations. The software supports portrait set-up enabling flexibility for use in conference rooms and classrooms.
SHARP Display Connect - The content on the interactive display screen, including handwritten notes, can be shared simultaneously with up to 50 devices. In addition, files can be exchanged between devices connected to the display.
Crestron Connected - The display's compatibility with Crestron Connected software enables you to remotely control and manage each monitor via a LAN network
In the Box Sharp PN-L401C AQUOS BOARD 39.5" Full HD LED Digital Signage Touchscreen Display AC Power Cord Remote Control Unit 2 x AAA Battery 3 x Cable Clamp Camera Mount Logo Sticker USB Cable Pen Tray Touch Pen Touch Viewer Software CD-ROM Portrait Installation Operation Label Desktop Stand SHARP Display Connect License Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sharp PN-L401C AQUOS BOARD 39.5" Full HD LED Digital Signage Touchscreen Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSharp PN-L401C Specs | | | Screen Size (Diagonal) | 39.5" | | Resolution | 1920 x 1080 | | Panel Type | TN LCD | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Brightness | 300 cd/m
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
