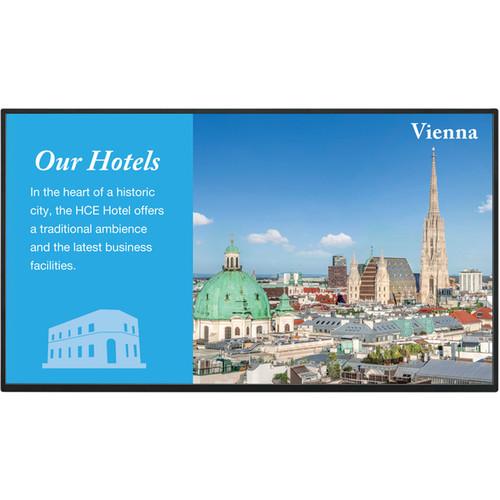

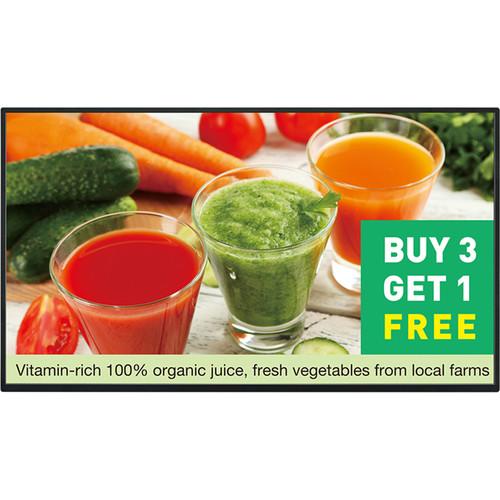

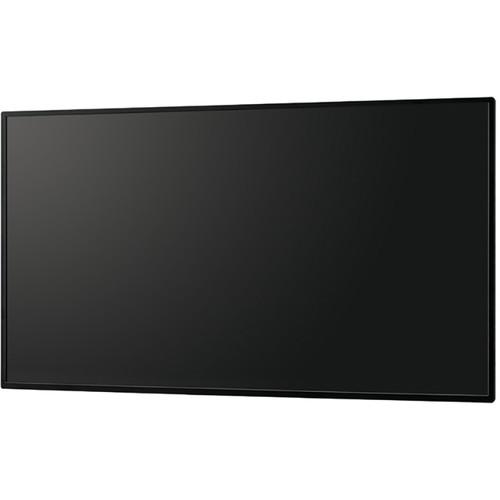

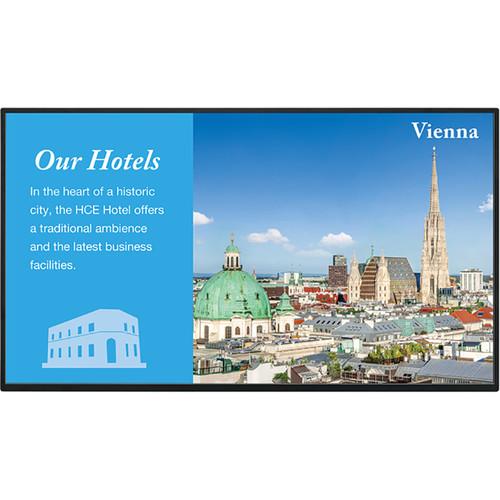

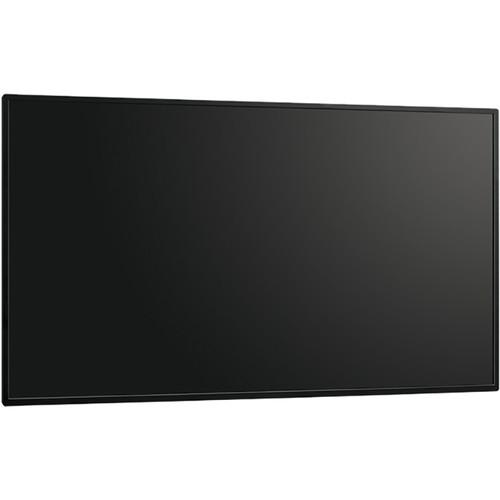

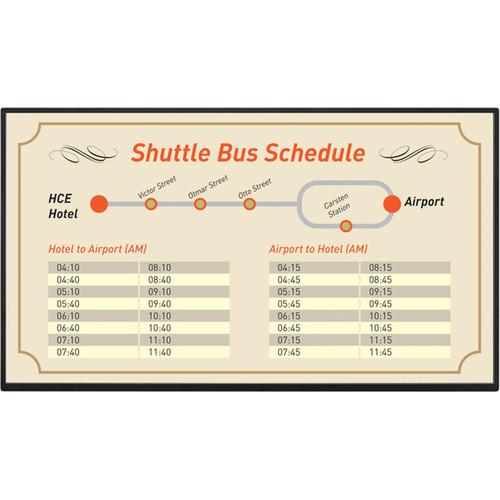

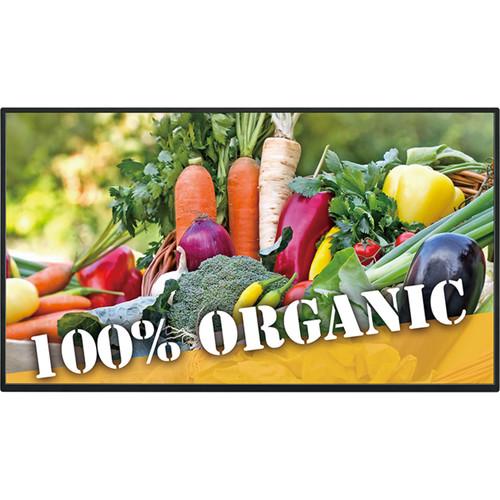

Sharp PN-M401 40" Class Full HD

User Manual for Sharp PN-M401 40" Class Full HD Commercial Smart LED Display

• Product category: Commercial Monitors Sharp
• Brand: Sharp
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sharp Commercial Monitors

Product description

Out-of-the-Box Digital Signage

Built-In SoC (System on a Chip)
• The PN-M401 has an integrated SoC controller driven by the ARM Cortex-A17 quad-core processor with 2GB of memory and 8GB of storage. It has the Android 4.4 OS onboard, which has several types of signage support software pre-installed, so you can display signage right out of the box, even without a computer. It is also compatible with various third-party Android apps, further expanding its flexibility.

H.265/HEVC Support
• The SoC controller supports the H.264/AVC and H.265/HEVC codecs.

Sharp Open Architecture Platform
• The PN-M401 features the Sharp Open Architecture Platform, which allows third-party software developers to create custom signage applications that open up additional possibilities for digital signage.

Flexibility and Expandability

Enhanced Image Quality
• With Full HD resolution and 450 cd/m² of brightness, the PN-M401 provides detailed images that are bright enough to be viewed in a variety of installation settings.

Flexible Installation Options

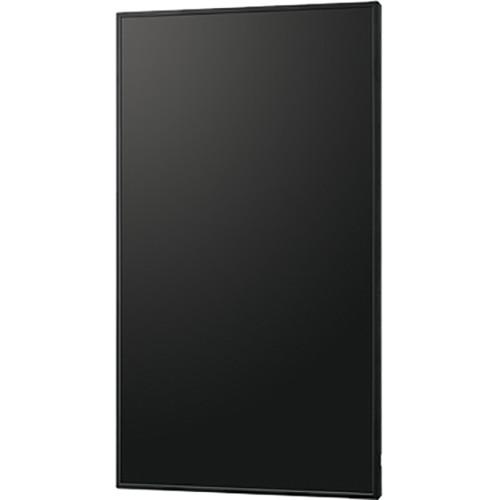

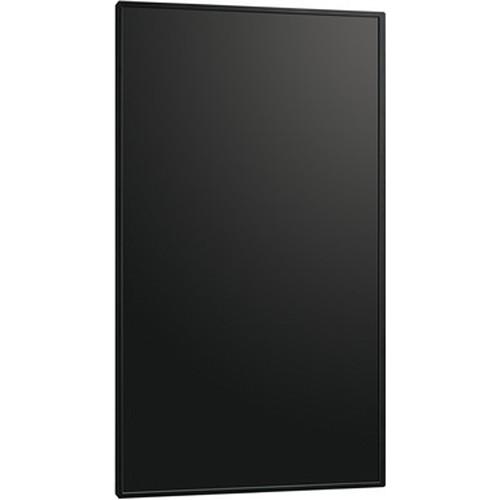

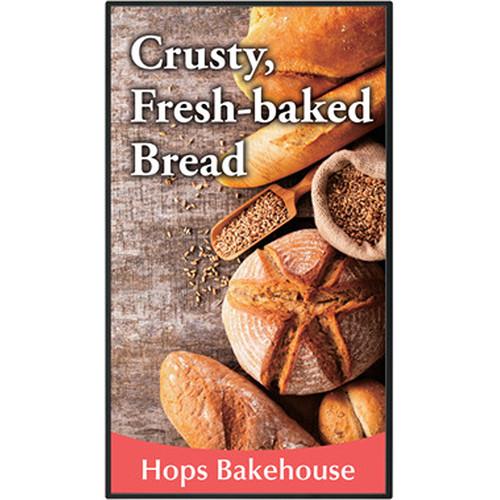

• Whether in landscape or portrait orientation, the PN-M401 can be installed face-up, face-down, or tilted forward or backward at angles up to 90°. Designed for easy hanging installation, it can be suspended from the four corners of the rear housing with wires, helping you meet numerous signage needs.

DisplayPort Daisy-Chaining
• Multiple PN-M401 displays can be set up on a daisy-chain configuration over DisplayPort, so you can display the same content simultaneously on all screens.

24/7 Operation
• The PN-M401 supports 24/7 operation, so your signage won't miss a beat.

Optional HDBaseT 2.0 Support
• Installing the optional PN-ZB03H HDBaseT Receiver Board allows the PN-M401 to receive HDMI video, audio, and control signals sent up to 328' via a single Ethernet cable, bringing convenient connectivity with HDMI-equipped devices such as computers and Blu-ray players. Compatibility with the HDBaseT 2.0 standard allows you to remotely operate a computer from a USB device connected to the board, reducing the number of cables required for installation.

Wireless Connectivity Option
• The optional PN-ZB03W allows up to 10 devices (including Mac and Windows computers, smartphones, and tablets) to connect to the PN-M401 simultaneously without any cable hassles. You can display the content of one device on the whole screen, or from up to four devices in a 2x2 split-screen.

Ready for Versatile Signage Support

Autoplay with Media Player
• Displaying still images or videos as signage content is easy. The built-in media player automatically starts playing the content that is stored either on your USB memory device, SD card, or internal storage when the display is powered on. It also has a schedule function that allows you to pre-register up to seven patterns for when you start/stop the content playback. In a slideshow, you can add visual effects between the still images. You can also make playlists that combine still images and videos.

Web-Based Signage
• With the HTML5 browser pre-installed, web content can be shown on the display as signage content. If the display is connected to the internet, just enter the URL in the HTML5 browser.

Sharp Content Distributor
• This software is designed to make it easy to update the content to be displayed on multiple displays. Through a simple computer operation, you can schedule what content gets distributed, when it gets delivered, and which displays show it.

Sharp e-Signage S Software
• This signage software provides support for satisfying individual user needs in the creation, scheduling, distribution, and management of a variety of signage programs for Sharp displays installed in offices, commercial establishments, public spaces, and other locations. The PN-M401 comes bundled with the standalone edition of this software, along with its player pre-installed on the onboard Android OS. Sharp e-Signage S software lets you create and edit signage programs via drag-and-drop operation. You can also lay out diverse content, such as still images, videos, HTML, and horizontal message bars, in a free layout frame to make signage programs easily. Additionally, you can create display schedules and timetables, and monitor the operational status of a designated display.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Sharp PN-M401 Specs

Screen Size (Diagonal)	39.5"
Resolution	1920 x 1080
Panel Type	TFT LCD
Bit Depth / Color Support	8-Bit (16.7 Million Colors)
Brightness	450 cd/m Rating 50% users recommend this product to others. And what about you? This product has already been rated by 40 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
