User Manual for Sharp PN-R606-Series 60"-Class Full HD Commercial LED Monitor Click to enlarge the picture
Contents of the user manual for the Sharp PN-R606-Series 60"-Class Full HD Commercial
- Product category: Commercial Monitors Sharp
- Brand: Sharp
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sharp Commercial Monitors
 |
User manual for the Sharp PN-R606-Series 60"-Class Full HD Commercial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sharp product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sharp user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sharp product will considerably shorten its lifespan!
|

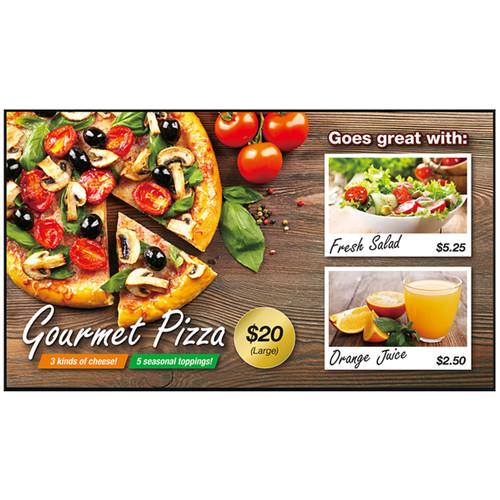

Product description Display detailed 1080p content with the Sharp PN-R606-Series 60"-Class Full HD Commercial LED Monitor. It has a 60" LED-backlit LCD display and features a Full HD 1920 x 1080 native resolution for viewing detailed high-definition content. The 700 cd/m² brightness output and 5000:1 contrast ratio showcase this monitor's ability to handle light and dark on-screen images. The PN-R606 also offers the flexibility of supporting portrait, landscape, and face-up viewing orientations.

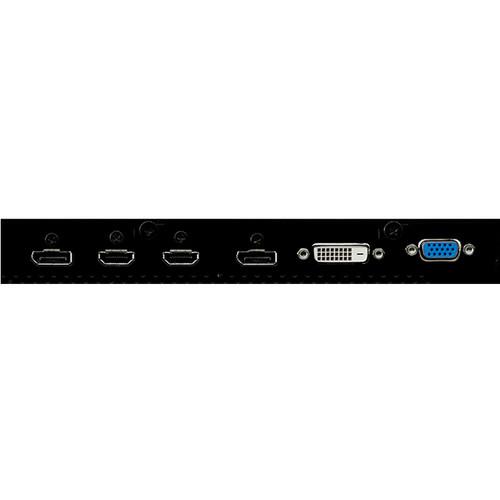

This Sharp commercial monitor is suitable for use in 24/7 environments and is equipped with VGA, DVI-D, DisplayPort, and dual HDMI inputs. Its daisy-chain capabilities allow it to be used in multi-display installations. Additionally, the PN-R606 offers stereo sound with dual 10W built-in speakers Designed for Flexible Installation - Enhanced Image Quality
- Thanks to its 1920 x 1080 Full HD resolution, the PN-R606 will show all the detail of your compatible content, including fine text and intricate graphics. The 700 cd/m² brightness further enhances its performance in digital signage applications.
- Adaptable to Various Settings

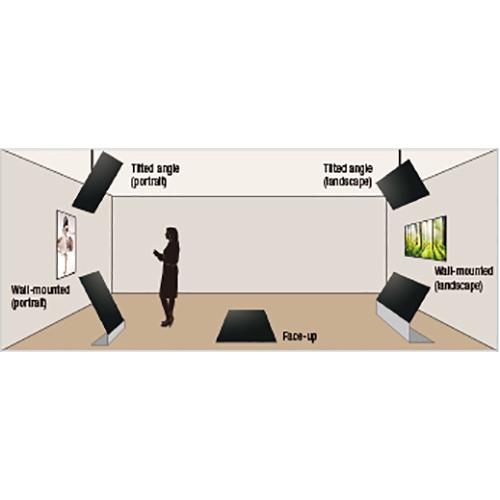

- Whether in a landscape or portrait orientation, the PN-R606 can be installed face-up or tilted backward to an angle up to 90° and forward to an angle up to 45°, helping you incorporate it into a variety of settings.
- Slim-Bezel Design
- Measuring just 8mm on the top/right/left and 13mm on the bottom, the slim bezel of the PN-R606 helps onscreen content stand out and catch the viewers' eye.
- Hanging Installation

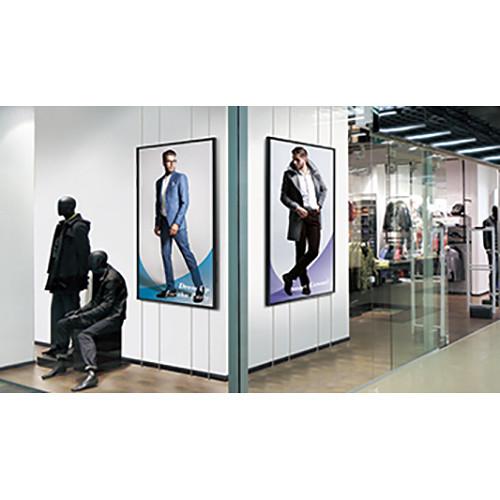

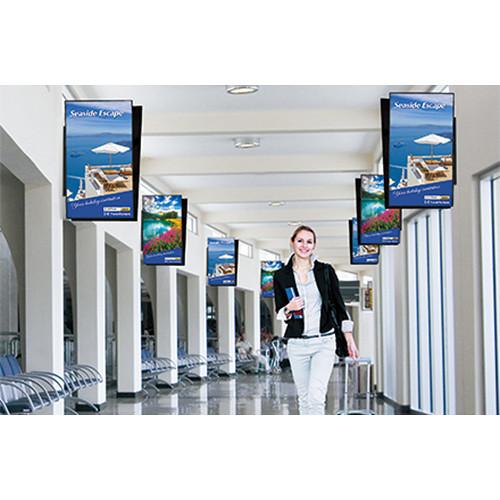

- The PN-R606 can be suspended by wire from its rear housing, using the included mounting brackets, giving it the appearance of floating in mid-air.
- Included Remote Control
- The remote control included with the PN-R606 is designed to provide enhanced operability. The remote and display can be assigned an identity number (from 0 to 9) for mutual recognition, enabling the remote to send commands to the targeted display only. The remote also lets you perform basic operations on connected HDMI-CEC-compatible devices, including power on/off. It also has three designated function buttons – HDMI, DisplayPort, and Option – to simplify input switching.
Image Quality and Functions - DisplayPort Daisy Chain
- Multiple PN-R-series monitors can be set up in a daisy-chain configuration, allowing you to display the same content simultaneously on up to 25 monitors. No matter which terminal receives the input signal, it can be output via DisplayPort.
- Enlarge (Zoom) Functions
- You can combine the daisy chain and enlarge functions to display 4K/30p content on four (2 x 2) monitors.
- DisplayPort Multi-Stream Transport (MST) Compatibility
- You can send different signals to two daisy-chained monitors and display a separate Full HD 60p video on each monitor.
User-Friendly Design - Environmentally Friendly Design
- The PN-R606 conforms to the RoHS Directive restricting the use of hazardous substances.
- Built-In Speakers
- Dual built-in 10-Watt rear speakers mitigate the need for external speakers and help ensure a streamlined profile.
- VESA Mount Compliant
- The PN-R606 is compatible with a variety of VESA-certified mounts, allowing you to mount it to a wall or ceiling.
- Carrying Handles
- Removable handles allow for easy and safe transportation.
- Crestron Connected
- The PN-R606 is compatible with Crestron Connected software, allowing you to remotely control and manage each monitor via a LAN network.
Reliability & Durability Features - 24/7 Operation
- The PN-R606 is well suited for use in demanding professional applications that require round-the-clock operation seven days a week.
- Power-On Delay
- This feature lets you delay the startup of each monitor in a multi-monitor installation, reducing the load placed on the power supply when multiple monitors are turned on at the same time.
- Fanless Architecture
- Airflow is maintained and heat is dissipated without the use of noisy mechanical air-ventilation fans. The fanless design also helps simplify maintenance of the monitor.
- Built-In Temperature Sensor
- If the temperature inside the monitor rises, its built-in sensor detects it and the monitor automatically lowers the brightness level of its backlight system.
Display Management - ID Setting

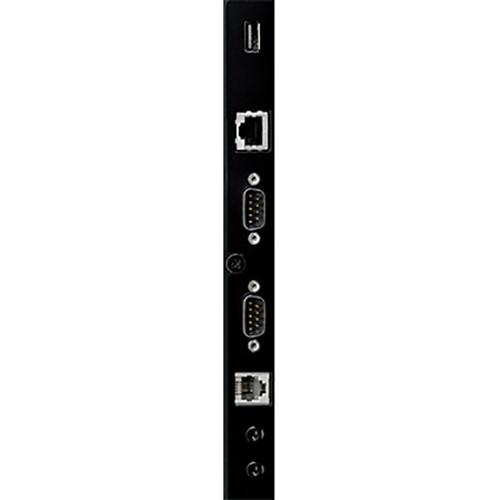

- Thanks to its RS-232C interface, multiple PN-R-series monitors can be controlled and monitored from a central location via a computer. Each monitor can be assigned an individual ID code to use when remotely turning that monitor on or off, changing its input, or making various screen adjustments and settings.
- Scheduling
- For enhanced ease of operation, the Schedule function allows up to eight settings to be pre-programmed for automatic monitor turn on/off at precise times on a daily, weekly, or one-time basis.
- Log Saving/Output
- To boost the troubleshooting efficiency of service technicians, operating logs, signal changes, information on operating irregularities, and other such data can be saved and tracked.
- Self-Adjust Function
- With an analog computer connection, when a change occurs to the input signal timing, the clock phase will automatically adjust accordingly.
Expandable Interface - Optional Support for HDBaseT 2.0

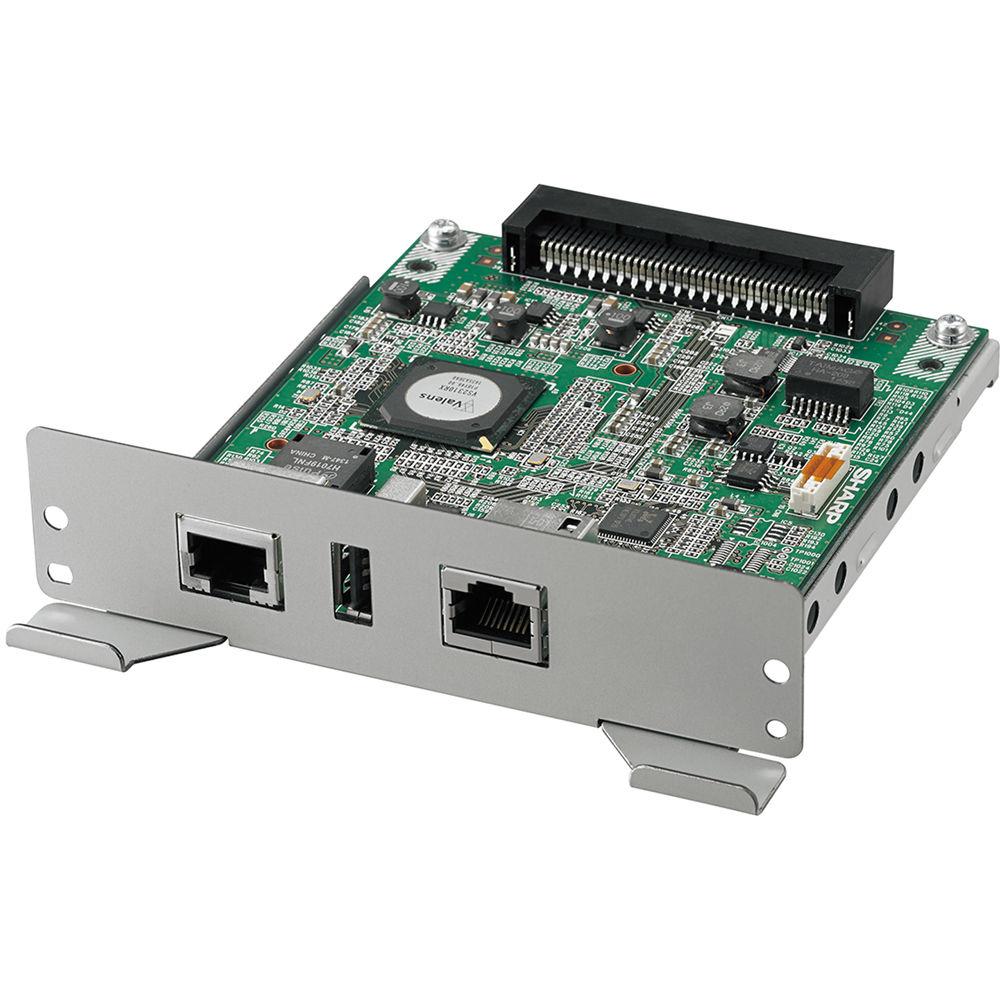

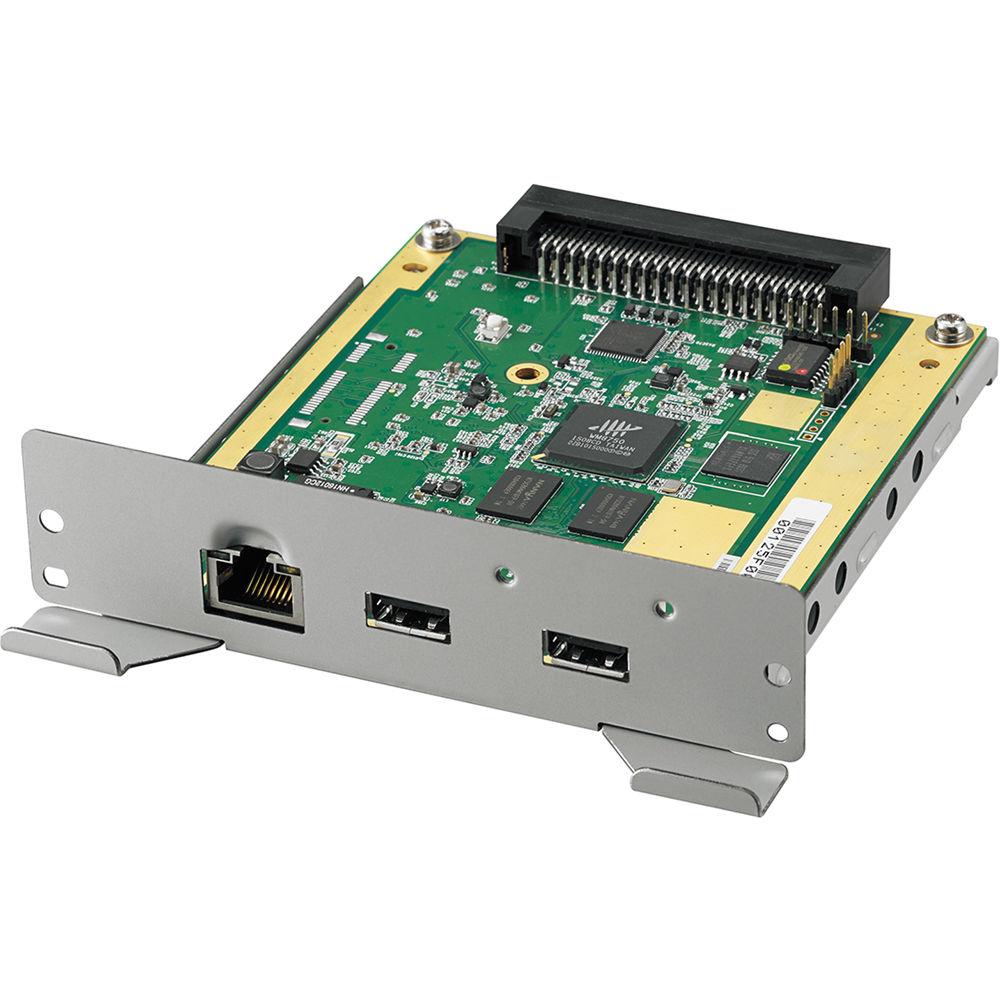

- Installing an optional PN-ZB03H HDBaseT Receiver Board allows the monitor to receive HDMI video, audio, and control signals sent up to 300' via a single CAT6 or higher LAN cable. This brings convenient connectivity with HDMI devices such as computers and Blu-ray players. Compatibility with the HDBaseT 2.0 standard allows you to remotely operate a computer from a compatible USB device connected to the optional board with additional optional equipment. With HDBaseT 2.0 support, you can use fewer cables and reduce the time and cost of installation.
- Optional Wireless Connectivity
- The optional PN-ZB03W Wireless Board allows up to 10 devices, including Mac or Windows computers, smartphones, and tablets, to connect to the PN-R606 simultaneously without any cable hassles. You can display the content of one device on the whole screen, or you can display the content from up to four devices in a 2 x 2 split screen. This wireless collaboration feature is well suited to enhance productivity in the workplace.
UPC: 074000066557 In the Box Sharp PN-R606-Series 60"-Class Full HD Commercial LED Monitor Remote Control 2 x AAA Batteries CD-ROM 2 x Cable Clamps Ceiling Mount Hardware Logo Sticker AC Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sharp PN-R606-Series 60"-Class Full HD Commercial LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSharp PN-R606 Specs | | | Screen Size (Diagonal) | 60" | | Native Resolution | 1920 x 1080 | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | Brightness | 700 cd/m
