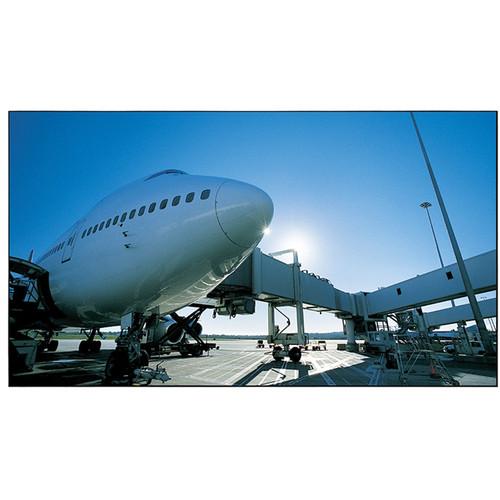

User Manual for Sharp PN-V601A 61" Widescreen LED-Backlight LCD Display Click to enlarge the picture
Contents of the user manual for the Sharp PN-V601A 61" Widescreen LED-Backlight LCD
- Product category: Commercial Monitors Sharp
- Brand: Sharp
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sharp Commercial Monitors
 |
User manual for the Sharp PN-V601A 61" Widescreen LED-Backlight LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sharp product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sharp user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sharp product will considerably shorten its lifespan!
|
Product description Designed for sophisticated video wall applications, the PN-V601A 61" Widescreen LED-Backlight LCD Display from Sharp is a flexible digital signage solution with 24/7 certified reliability and an almost seamless bezel (just 0.25" bezel-to-bezel width). Its full-array LED backlight helps ensure uniform brightness and the enlarge (zoom) display mode enables one image to be expanded across up to 25 monitors (in a 5x5 configuration). Full Array LED Backlight ensures uniform brightness. LED elements are positioned across the entire panel directly behind the liquid crystal layers, helping ensure beautiful uniform images. This display offers high resolution from analog RGB, digital RGB, and HDTV video sources. When used in a 3x3 video wall display, this professional LCD monitor provides over 4K x 2K total resolution (4098 x 2304 pixels) for ultra-high resolution / high impact images. The Enlarge (Zoom) Display Mode enables one image to be spread across up to 25 monitors (in up to a 5x5 configuration) without the need for external processing equipment. The Frame Width Adjustment function eliminates misalignment and helps enhance the enlarged image in a multi-screen display. The PN-ZR01 Control Kit (not included) permits all monitors in a video wall to be operated using a single remote, and the PN-ZB02 Interface Expansion Board (not included) expands the input/output capability of each display. This video wall monitor is suitable for shopping malls, airports, museums, stadiums, control centers, and more. It can be installed in portrait, landscape, and face-up/face-down orientations. - Enlarge (Zoom) Display Mode (For up to 25 Monitors)
- The Enlarge (Zoom) Display mode can spread one image across up to 25 monitors (in a 5 x 5 configuration) from a PC. The Frame Width Adjustment function virtually eliminates misalignment and boldly enhances the enlarged image on a multi-screen display.
- Full-Array LED Backlight
- For uniform brightness, Sharp has positioned LED elements across the entire panel directly behind the liquid crystal layers, helping ensure that Sharp multi-screen displays are bright, beautiful and uniform.
- Wide Range of Display Possibilities
- Thanks to the display's slim bezel, the borders between neighboring monitors are a virtually seamless 6.5mm wide (2.4mm on the right and bottom; 4.1mm on the left and top). When used in a video wall configuration, this enables the display of crisp and high impact images of almost any size and format. 1
Please Note: Bezel width does not include the gap between the monitors. Non-display area for neighboring monitors is 7.1mm. close - Create Dynamic Video Walls

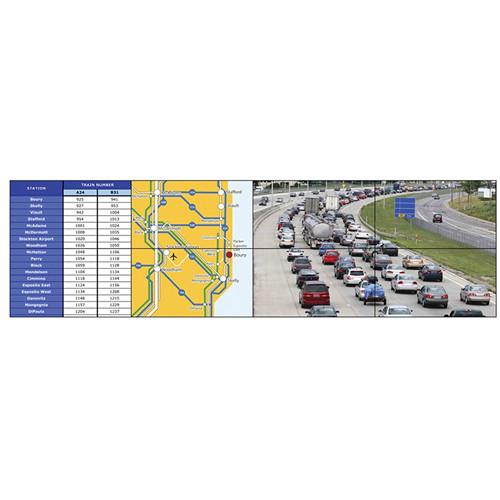

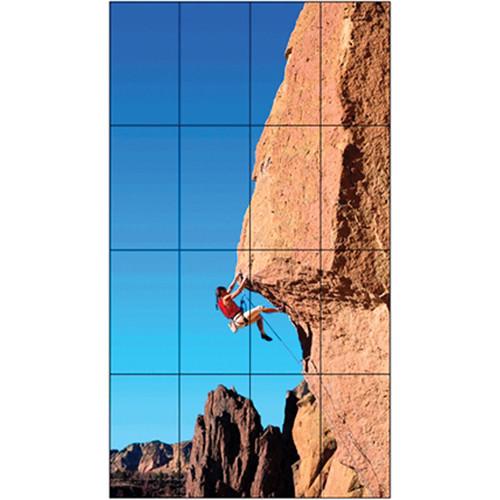

- Almost any number of monitors may be joined together to create high impact multi-screen video walls. These configurations may be controlled through RS-232C or over a network. The ease of control and integration help simplify the design and installation of sophisticated video wall displays of most any size and shape. 2
Please Note: The PN-ZB02 Input/Output Expansion Board (not included) is required for network control. close - Professional Quality and 24/7 Operation
- This professional-grade monitor is rugged enough for continuous 24/7 operation in the most demanding professional applications.
- Create a 4K2K Ultra-High Resolution Experience

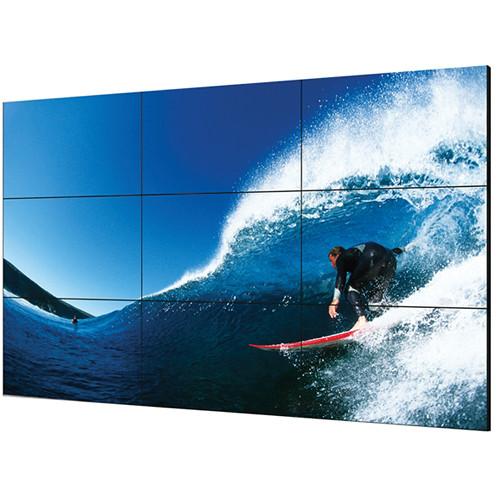

- When placed in a 3x3 video wall configuration, the PN-V600A/PN-V601A standard resolution multiplies by three, creating a total resolution of up to 4098 x 2304 pixels for ultra-high resolution / high impact images.
- Mirror Frames (Option)
- In multi-screen configurations, mirror frames minimize the lines between the monitors by reflecting mirror images from the display content.
- Full Range of Connectivity
- The display features extensive interface capability. Add the optional PN-ZB02 Input/Output Expansion Board for even more ways to connect your video wall installation to the content source your project requires.
- Less Power Consumption
- It consumes less power, which helps conserve energy and reduce operating costs.
UPC: 074000069510 In the Box Sharp PN-V601A 61" Widescreen LED-Backlight LCD Display 2 x Cable Clamp 9.8' Power Cord CD-ROM (Utility Disk for Windows) 4 x Protection Cover 4 x Short Handle Screw 2 x Short Bezel Sheet 2 x Long Bezel Sheet Limited 3-Year On-Site Parts/Labor/Backlight Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sharp PN-V601A 61" Widescreen LED-Backlight LCD Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSharp PN-V601A Specs | | | Screen Size (Diagonal) | 60" | | Resolution | 1366 x 768 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Brightness | 700 cd/m
