Product description

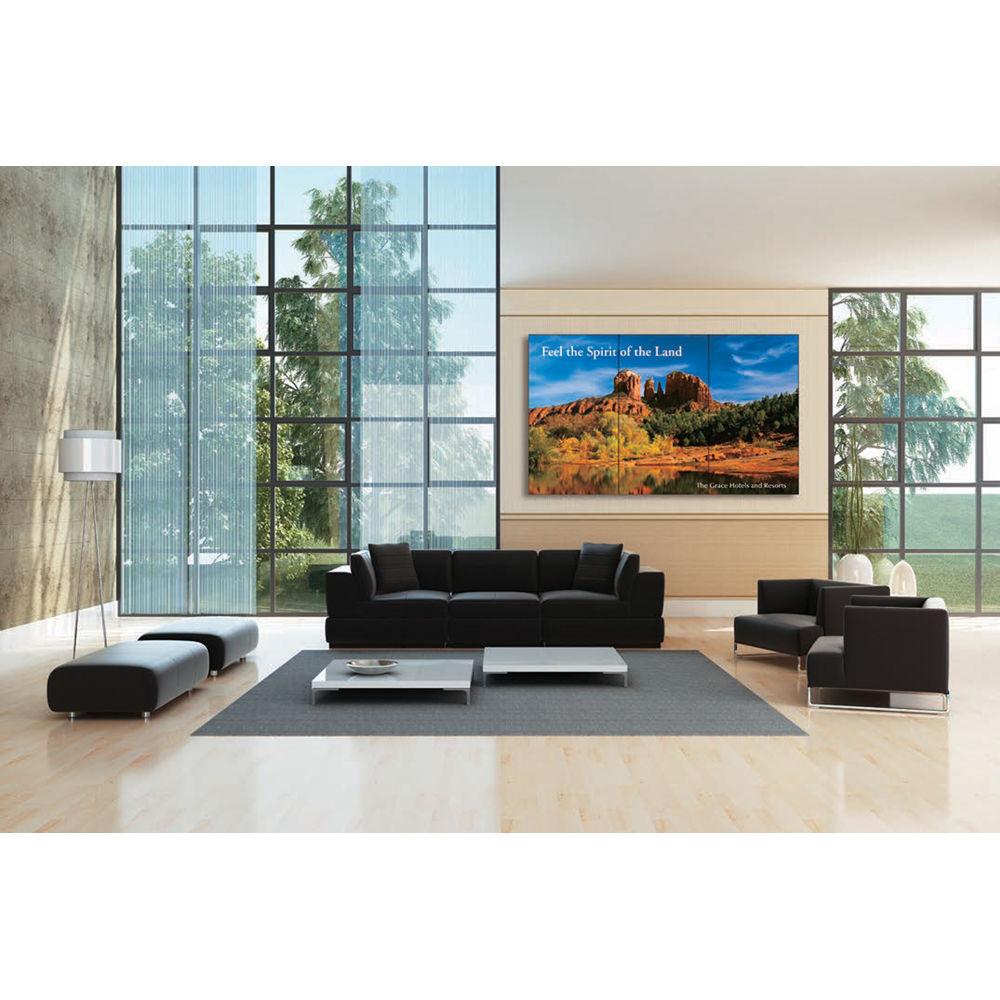

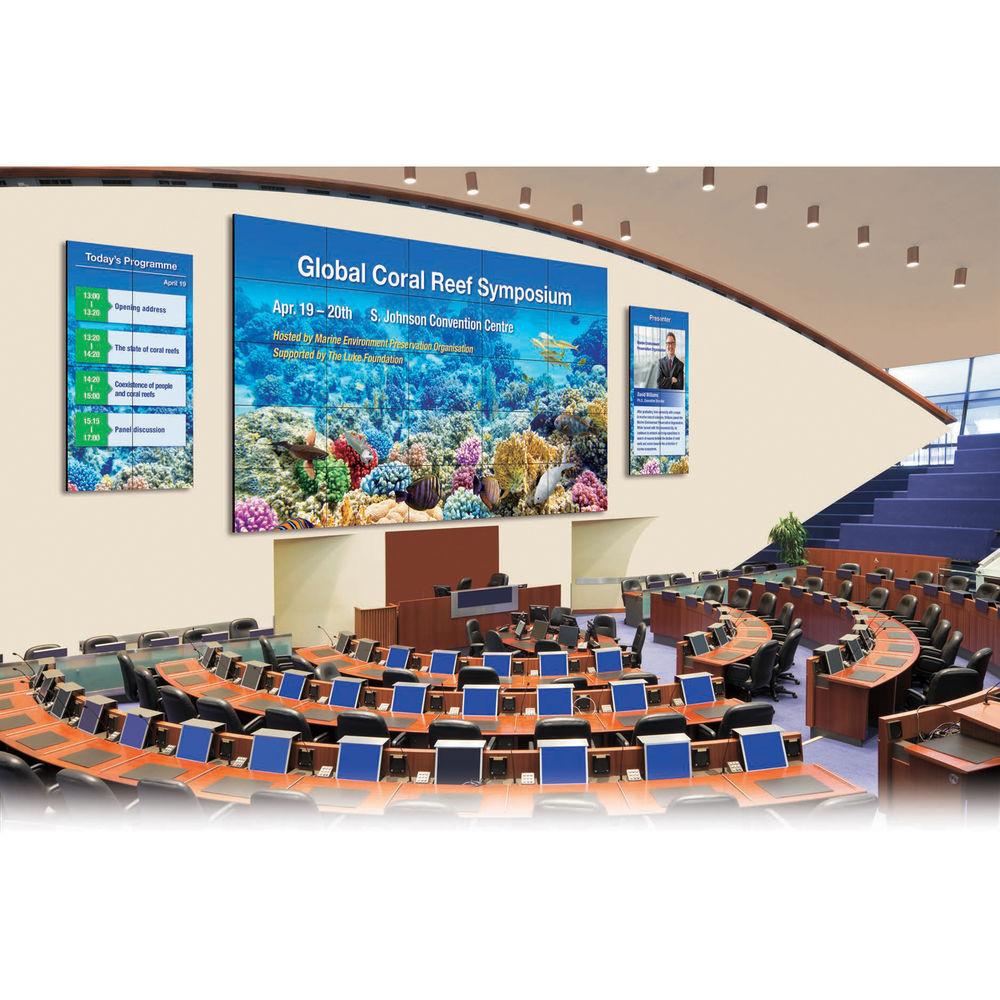

Designed for Video Wall Installations
• The PN-V701 was developed specifically with video wall installations in mind. With its combined bezel width of just 4.4mm, large images on a video wall appear nearly seamless. The 69.5" diagonal screen allows you to build video walls with fewer monitors, and therefore fewer bezels, minimizing non-functional areas of the video wall.

Enhanced Image Quality with UV²A and Uniform Color Calibration Technology
• The PN-V701 uses Sharp's UV²A technology to help provide efficient use of light from the backlight and prevent light leakage for bright whites and deep black levels. Its 1920 x 1080 resolution also makes fine text and intricate graphics crisp and clear. The 700 cd/m² brightness is designed to provide sufficient brightness in areas with high ambient light, a common obstacle in video wall and digital signage installation locations. The PN-V701 also employs SHARP Advanced UCCT (Uniform Color Calibration Technology) for color and brightness uniformity across the entire video wall.

Hybrid Correction of Color and Brightness
• The display characteristics of each small area of the image are measured in terms of RGB input signals. Uniformity of color and brightness is then calibrated and corrected for each RGB signal element with UCCT.

Color Management by 3D LUTs
• UCCT uses 3D lookup tables (LUTs) for color management helps achieve augmented color reproduction toward the predetermined target range, enhancing the consistency of color quality between monitors in a video wall installation.

Inverse Scan Function
• When high-speed video is played on a video wall, slight image misalignments between vertically placed monitors can occur. The Inverse Scan function is designed to correct this by alternating the scanning direction between vertically adjacent monitors, helping to create smooth and natural images across the video wall.

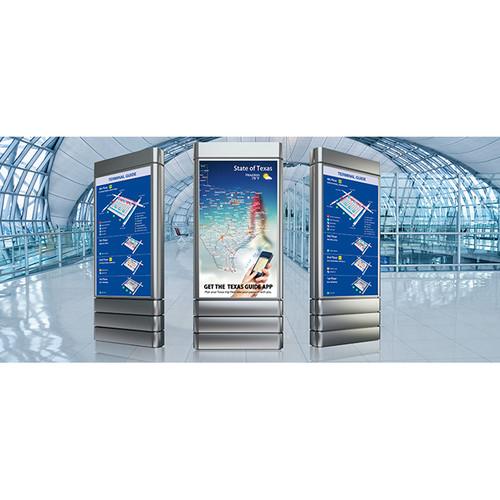

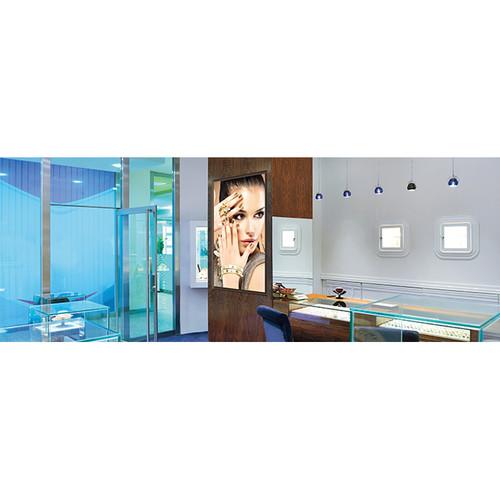

Choice of Installation Orientation
• The PN-V701 offers a choice of landscape or portrait installation, allowing you to select the mode that best suits your display content and application.

Designed for 24/7 Operation
• The PN-V701 is well-suited for use in demanding professional applications that require 24-hour operation, seven days a week.

Optional PN-ZR02 Control Kit
• When one of the displays in a video wall is outfitted with a remote control sensor box, all the displays can be operated through one remote control.

Support for Optional HDBaseT 2.0 Expansion Card
• The PN-V701 features an expansion slot that will accommodate an optional PN-ZB03H HDBaseT Receiver Board. Installing this board allows the display to receive HDMI video, audio, and control signals sent up to 328' via a single Cat6 or higher LAN cable, offering convenient connectivity with your HDMI-compatible source devices, such as computers or Blu-ray players. Compatibility with the HDBaseT 2.0 standard allows you to remotely operate a computer from a USB device connected to the board, reducing the number of cables and installation time required.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Sharp PN-V701 Specs

Screen Size (Diagonal)	69.5"
Resolution	1920 x 1080
Panel Type	VA LCD
Bit Depth / Color Support	8-Bit+FRC (1.07 Billion Colors)
Brightness	700 cd/m Rating 90% users recommend this product to others. And what about you? This product has already been rated by 86 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
