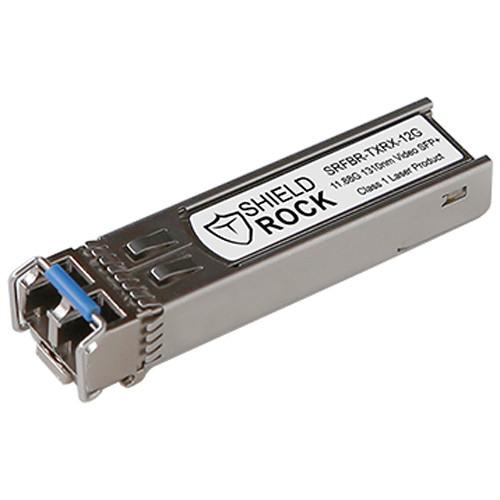

User Manual for ShieldRock SFP 12G-SDI LC Transceiver Module Click to enlarge the picture
Contents of the user manual for the ShieldRock SFP 12G-SDI LC Transceiver Module
- Product category: DA & Extender/Repeater Accessories ShieldRock
- Brand: ShieldRock
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ShieldRock DA & Extender/Repeater Accessories
|
User manual for the ShieldRock SFP 12G-SDI LC Transceiver Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ShieldRock product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ShieldRock user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ShieldRock product will considerably shorten its lifespan!
|
Product description The SFP+ 12G-SDI LC Transceiver Module from ShieldRock is designed for the transmission of SMPTE standard video over fiber optic connections. It converts electrical SDI signals into an optical signal for transmission over fiber and receives an optical SDI signal and converts to an electrical signal for further processing. Wavelength is a fixed 1310nm and suitable for distances up to 6.2 miles at 11.88 Gb/s on SMF. The transceiver consists of two sections; the transmitter section incorporates a 1310nm DFB laser, and the receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier. The use of a purpose-built 12G TIA ensures that two modules used together will pass and receive a pathological pattern without unlocking. - Supports: SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI rates
- Compliant with SMPTE 424M, SMPTE 292M, and SMPTE 259M
- Tested with pathological pattern transmissions
UPC: 685239811872 In the Box ShieldRock SFP+ 12G-SDI LC Transceiver Module (1310nm) Dust Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ShieldRock SFP 12G-SDI LC Transceiver Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShieldRock SRFBR-TXRX-12G Specs | | | Wavelength | Minimum: 1260 nm
Typical: 1310 nm
Maximum: 1360 nm | | Output Power | Average: Minimum: -6 dBm, Typical: -4 dBm, Maximum: -2 dBm over SMF
Pout at TX Disable Asserted: -45 dBm | | Spectral Width | 1 nm at -20 dB | | Side Mode Suppression Ratio | 30 dB | | Jitter | Pathological Pattern:
60 ps at 11.88 Gb/s
30 ps at 5.94 Gb/s
Color Bar Test:
50 ps at 11.88 Gb/s
25 ps at 5.94 Gb/s | | Data Input | Data Input Swing Differential: 500 to 2400 mV p-p | | Differential Input Impedance | Minimum: 90 Ohms
Typical: 100 Ohms
Maximum: 110 Ohms | | TX Power | Disable: 2.0 Vcc
Enable: 0.8 V
Fault: 2.0 Vcc
Normal: 0.5 V | | | | Wavelength | Minimum: 1260 nm
Typical: 1310 nm
Maximum: 1360 nm | | Sensitivity | Pathological Pattern:
Typical: -12 dBm at 11.88 Gb/s
Maximum: -10 dBm at 11.88 Gb/s
Color Bar Test:
Typical: -12 dBm at 11.88 Gb/s
Maximum: -10 dBm at 11.88 Gb/s | | Overload | -3 dBm | | Data Output | Data Output Swing Differential: 370 to 2000 mV p-p | | RX Power Specifications | High: 2.0 Vcc
Low: 0.5 V | | | | Supports | SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI Rates | | Data Rate | 0.27 to 11.88 Gb/s | | Range | 6.2 Miles / 10 km | | Standards | SFF-8472 Mechanical/Electrical
SFP+ MSA Interface
FCC 47 CFR Part 15, Class B
FDA 21 CFR 1040.10 and 1040.11, Class I
SMPTE: 259M, 292M, 296M, 372M, 425M
RoHS | | Temperature | 32 to 158°F / 0 to 70°C | | Power Supply Voltage | Minimum: 3.13 V
Typical: 3.3 V
Maximum: 3.47 V | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 4.5 x 1.8 x 0.6" |
