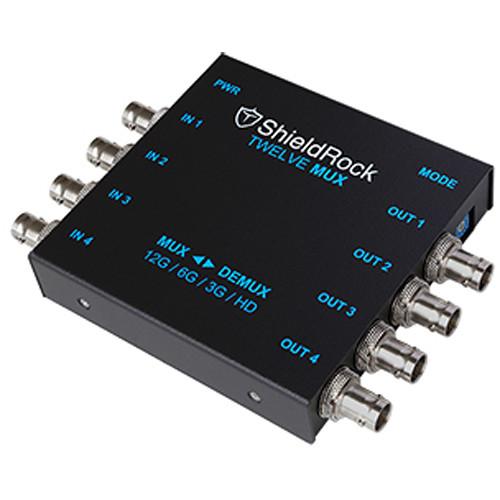

Product description The TWELVE MUX 12G-SDI Mux/DeMux Converter from ShieldRock converts between single-link, dual-link, and quad-link SDI transport interfaces. It supports 4K, UHD, 2K, and HD video formats, including audio channels. The converter can be used for converting between quad-link 3G to single-link 12G, or from single-link 12G to quad-link 3G. In addition, all SMPTE interfaces in 12G, 6G, 3G, and 1.5G are supported. UPC: 685239811780 In the Box ShieldRock TWELVE MUX 12G-SDI Mux/DeMux Converter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ShieldRock TWELVE MUX 12G-SDI Mux DeMux Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShieldRock Twelve Mux Specs | Video Interface | 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI (auto switching)
SMPTE 292M, 259M, 296M, 297M, 372M, 424M, 425M
Supports AES10 multi-channel (MADI) audio | | Video Formats | 4K/UHD 2160p 23.98/24/25/29.97/30/48/50/59.94/60
2K/HD 1080p 23.98/24/25/29.97/30/48/50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
720p 23.98/24/25/29.97/30/48/50/59.94/60 | | Electrical | Input: 5 to 24 VDC | | Power Consumption | 7 W | | Dimensions | 5.4 x 4 x 0.86" (137.2 x 101.6 x 21.9 mm) | | Weight | 11.6 oz (330 g) |
