User Manual for Shining Technology CitiDisk Accessory Power Pack 2 Click to enlarge the picture
Contents of the user manual for the Shining Technology CitiDisk Accessory Power Pack
- Product category: Solid State Recorder Accessories Shining Technology
- Brand: Shining Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shining Technology Solid State Recorder Accessories
|
User manual for the Shining Technology CitiDisk Accessory Power Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shining Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shining Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shining Technology product will considerably shorten its lifespan!
|

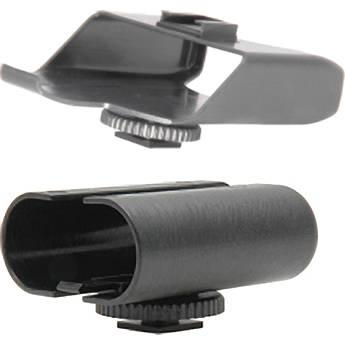

Product description The Shining Technology CitiDisk Accessory Power Pack 2 includes the Camera Hot-shoe Adapter (HSHU1256), FireWire cables (IE1394-66-50V / IE1394-64-50V), and the External Battery Holder (BHDR21865). You can use the adapter with 1 CitiDisk FW1256 (HDV/HD) unit that can be securely fastened to the shoe bracket via a wheel. Integrated into the bracket is a hot-shoe that offers easy connections of accessories such as external battery, lights, or wireless microphone, even when the adapter is mounted on the camera. Automatic locking is provided after unit insertion, and the disk unit can be removed by simply pushing the lock down and pulling the unit out. Also included in the accessory pack is a pair of FireWire cables (IE1394-66-50V / IE1394-64-50V) that measure 22” (56cm) in length, and allow you to connect the FW1256 to the camera’s iLink 4-pin port during shooting. You are provided with a cable-tie that allows you to fasten the cable to the camera handle for hassle-free handling. You can house the BATT21865 battery using the included External Battery Holder that integrates a shoe-bracket that fits into the hot-shoe of the camera or the returned hot-shoe of the HSHU1256. A wheel-based fastening arrangement allows for a secure fit. An automatic lock secures the battery on insertion. You can disengage the battery by pressing down the lock an pulling the battery out - Includes the Camera Hot-shoe Adapter (HSHU1256) and FireWire cables (IE1394-66-50V / IE1394-64-50V)
- Supports 1 CitiDisk FW1256 (HDV/HD) unit that can be securely fastened to the shoe bracket via a wheel
- Offers easy connections of accessories such as external battery, lights, or wireless microphone via a hot-shoe, even when the adapter is mounted on the camera
- Offers automatic locking after unit insertion
- Provides for disk disengagement by simply pushing down the lock and pulling the unit out
- Includes FireWire cables (IE1394-66-50V / IE1394-64-50V) that measure 22" (56cm) in length, and allow you to connect the FW1256 to the camera's iLink 4-pin port during shooting
- Includes a cable-tie that allows you to fasten the cable to the camera handle for hassle-free handling
- Houses the BATT21865 battery using the included External Battery Holder that integrates a shoe-bracket that fits into the hot-shoe of the camera or the returned hot-shoe of the HSHU1256
- Secure fit via a wheel-based fastening arrangement
- Integrates an automatic lock and simple press-down disengage mechanism for the battery
Table of Contents
|
Upload User Manual
Have you got an user manual for the Shining Technology CitiDisk Accessory Power Pack 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShining Technology FW1256-ACPK2 Specs | | | Construction | Polycarbonate Material | | Dimensions (LxWxH) | 5.4 x 3.3 x 1.95" (140 x 85 x 50mm) | | Wheel Diameter | 1.5" (40mm) | | | | Type | FireWire IE1395-66-50V: 6pin-to-6pin / IE1395-64-50V: 6pin-to-4pin | | Standards | IEEE1394-1995A specification | | Length | 22" (56cm) | | | | Battery | For BATT21865 | | Construction | Polycarbonate Material | | Dimensions (LxWxH) | 3 x 2.3 x 1.6" (78 x 60 x 43 mm) | | Wheel Diameter | 1.5" (40mm) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 12.1 x 7.1 x 2.6" |
