User Manual for Shining Technology SUV HD120E Wireless Video Transmission Reception Hardware Suite

Click to enlarge the picture
Shining Technology SUV HD120E Wireless Video Transmission Reception Hardware Suite Contents of the user manual for the Shining Technology SUV HD120E Wireless Video
  • Product category: Wireless Transmission Systems Shining Technology
  • Brand: Shining Technology
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Shining Technology Wireless Transmission Systems

Shining Technology SUV HD120E Wireless Video Transmission Reception Hardware Suite Shining Technology SUV HD120E Wireless Video Transmission Reception Hardware Suite Shining Technology SUV HD120E Wireless Video Transmission Reception Hardware Suite Shining Technology SUV HD120E Wireless Video Transmission Reception Hardware Suite Shining Technology SUV HD120E Wireless Video Transmission Reception Hardware Suite
User manual for the Shining Technology SUV HD120E Wireless Video contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Shining Technology product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Shining Technology user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Shining Technology product will considerably shorten its lifespan!



Product description

The Simple Ubiquitous Video SUV HD120E Wireless Video Transmission/Reception Hardware Suite from Shining Technology Inc provides a wireless video transmission/reception solution and includes a receiver, transmitter, power adapter, and other accessories. The SUV HD120E features an external dual-antenna transmitter, and an external antenna receiver with five attachable antennas. The system operates in the 5.x GHz license-free band, providing users with up to 10 workable channels worldwide.

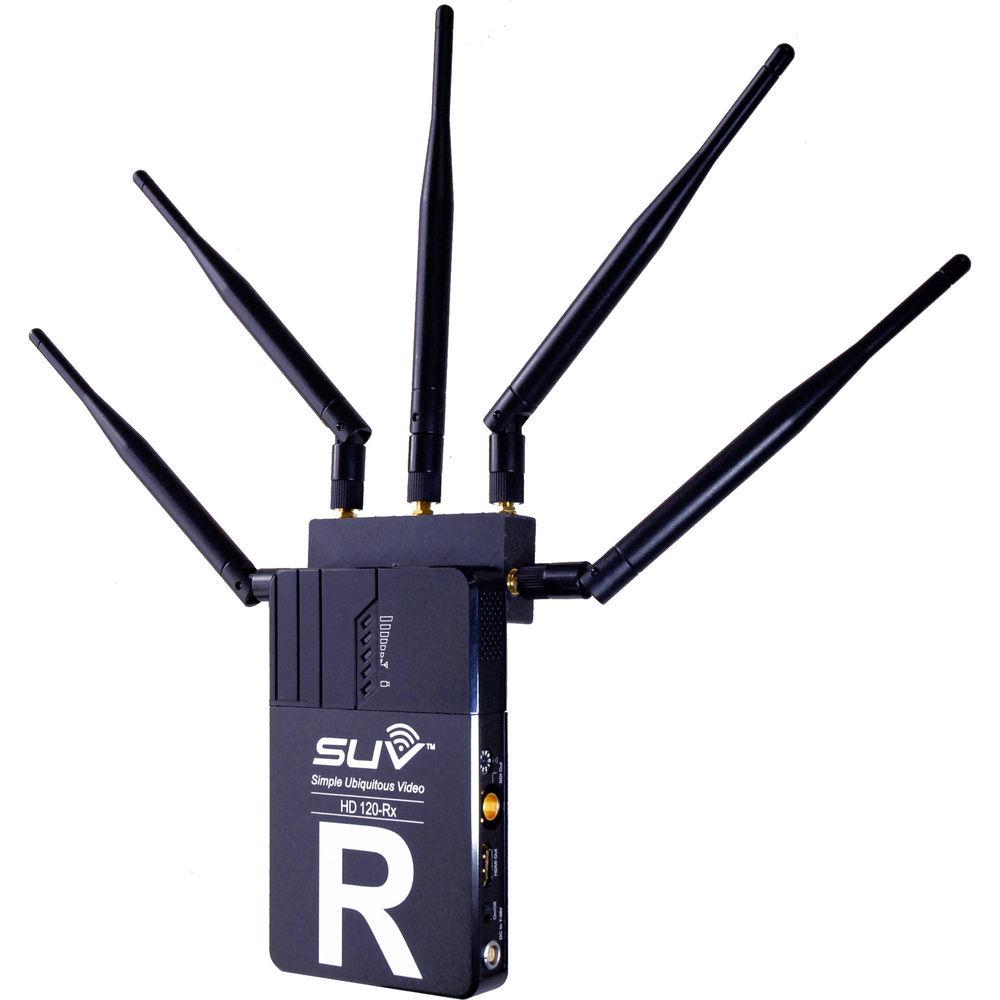

  • SUV HD120E Wireless Video Receiver (1280') The Simple Ubiquitous Video SUV HD120E Receiver from Shining Technology comes equipped with five external receiving antennas which pair up with the dual MIMO 5 dBi gain external antennas on the SUV HD120 Transmitter. The combination of the two yields up to a 1280' line-of-sight range, and up to four receivers can connect to a single transmitter. It operates in the 5.x GHz license-free band with up to ten selectable channels (should be matched with the transmitter). For demodulating the received signal, this receiver features OFDM/16-QAM demodulation circuitry.The receiver operates on a wide 7 to 36 VDC range, and can also be powered via the attached Sony L-series battery compatible bracket. The lightweight receiver is made from milled/anodized aluminum with a plastic top section, and features a 1/4"-20 screw hole for mounting onto a stand.
      • Supports Full HD (1080p60) resolution
      • Both 3G-SDI and HDMI outputs can be active simultaneously
      • Outputs 10-bit, 4:2:2 video, and 2-channel 48 kHz PCM audio
      • No compression, zero latency
      • Multicast capable; pair up to four receivers with a single transmitter
      • Built-in power/video status and RSSI LEDs
      • Plug-n-Play safe; all inputs and outputs protected by ±8 kV, preventing ESD (electronic static discharge)
    UPC: 893688000352

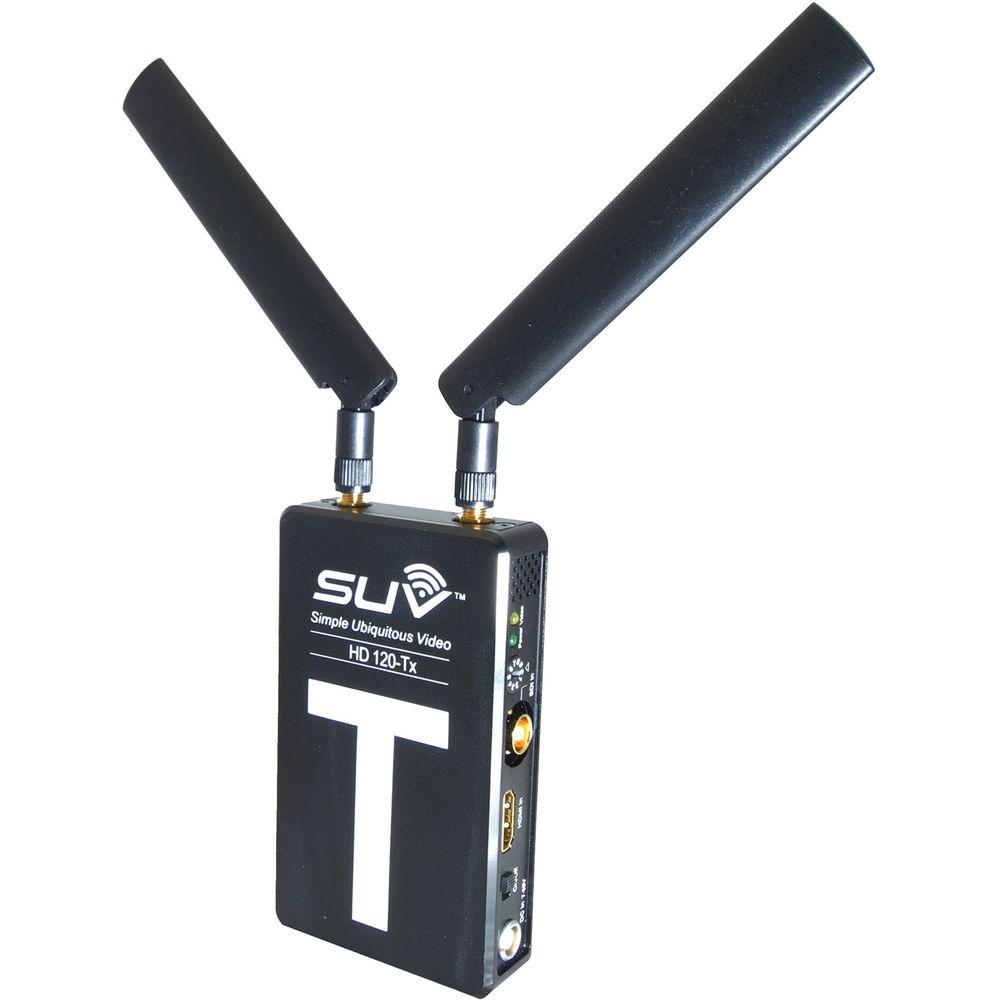

  • SUV HD120 Wireless Video Transmitter (900') The Simple Ubiquitous Video SUV HD120 Wireless Video Transmitter from Shining Technology supports dual-format video input (3G-SDI over HDMI 1.3). It operates in the 5.x GHz license-free band with up to ten selectable channels. Equipped with dual MIMO 5 dBi gain external antennas, this transmitter can yield up to a 900' line-of-sight range with up to four receivers.

    The SUV HD120 Transmitter operates on a wide 7 to 36 VDC supply range, and can also be powered via the attached Sony L-series type battery bracket. The lightweight transmitter is made from milled/anodized aluminum and features a 1/4"-20 screw hole for mounting onto a stand.
      • Supports Full HD (1080p60) resolution
      • Renders 10-bit, 4:2:2 video, and 2-channel 48 kHz PCM audio
      • No compression, zero latency
      • Multicast capable; pair up to four receivers with a single transmitter
      • Built-in power/video status and RSSI LEDs
      • Plug-n-Play safe; all inputs and outputs protected by ±8 kV, preventing ESD (electronic static discharge)
    UPC: 893688000802
  • Crab Craw Pliers The Crab Craw Pliers from Shining Technology features crab friction jar opening from 0.5" to 2". UPC: 893688000956
  • Hot-Shoe Plate The Hot-Shoe Plate from Shining Technology features a 1/4" screw, two 1" diameter thumb wheel, and one 3/4" x 3/4" metal plate. UPC: 893688000949
  • Wall-Mount Power Adapter The Wall-Mount Power Adapter from Shining Technology features a North American socket on one end and a D-tap female socket on another. It operates on 100 to 240 VAC supply and provides 12 VDC, 2A output.
  • Coiled Power Cord (10") The 10" Coiled Power Cord from Shining Technology features a 4-pin LEMO on one end and a D-tap female connector on the other end. UPC: 893688000932
In the Box Bundle Items SUV HD120E Wireless Video Receiver (1280') fefbrsfrcredrqasyqw
  • Coiled Power Cord (10")
  • Wall-Mount Power Adapter
  • Limited 1-Year Warranty
SUV HD120 Wireless Video Transmitter (900') Crab Craw Pliers 2 x Hot-Shoe Plate Wall-Mount Power Adapter 2 x Coiled Power Cord (10")

Also Includes

  • Articulating Arm
  • 2 x Screwdriver
  • Rugged Carrying Case
Table of Contents




Upload User Manual

Have you got an user manual for the Shining Technology SUV HD120E Wireless Video Transmission Reception Hardware Suite in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • SUV HD120E Wireless Video Receiver (1280')
    Resolution Video:
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p 50 (HDMI only)
    576i: PAL
    480p: 59.94 (HDMI only)
    480i: NTSC

    SDI (Full HD, HD/SD-SDI):
    SMPTE-259/274/292/296/372/424/425

    Audio:
    Embedded 48 kHz, 24-bit PCM (first 2 channels only)
    Sensitivity -75 dBm
    Operating Frequency 5.x GHz unlicensed band
    5.x GHz non-DFS ISM
    Bandwidth 40 MHz per channel
    Modulation OFDM 16-QAM
    Antennas 5 x Internal antennas
    Multi-cast/Uni-cast Pair up to four receivers with a single transmitter
    Range Up to 1280' (400 m) line-of-sight
    Encryption AES 128-bit
    Color Sampling YCbCr: 4:2:2 10-bit
    Connector 1 x BNC out
    1 x HDMI out
    LEDs RSSI: 5 x Blue
    Power: 1 x Yellow LED for power and video
    Power Switch On/Off
    Battery Plate Sony L-series compatible
    Power Adapter Input: 100 to 240 VAC
    Connector: D-Tap female socket
    Output: 12 VDC
    Power Cable 1 x 10" (25 cm) R/A LEMO 4-pin to D-Tap male coiled cable
    Mounting Hole 1 x 1/4"-20 threaded hole
    Enclosure Material Top Portion: Plastic
    Body: Milled aluminum
    Protection Plug-and-Play safe
    ±8 kV ESD
    Certification FCC, CE, RoHS
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature 4 to 140°F (-20 to 60°C)
    Dimensions 6.0 x 3.7 x 0.9" (15.2 x 9.5 x 2.3 cm)
    Weight 12.52 oz (355 g)
  • SUV HD120 Wireless Video Transmitter (900')
    Resolution Video:
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50 (HDMI only)
    576i: PAL
    480p: 59.94 (HDMI only)
    480i: NTSC

    SDI (Full HD, HD/SD-SDI):
    SMPTE-259/274/292/296/372/424/425

    Audio:
    Embedded 48 kHz, 24-bit PCM (first 2 channels only)
    RF Power 23 dBm
    Operating Frequency 5.x GHz unlicensed band
    5.x GHz non-DFS ISM
    Bandwidth 40 MHz per channel
    Modulation OFDM 16-QAM
    Antennas 2 x External omni RP-SMA 5 dBi
    Multi-cast/Uni-cast Pair up to four receivers with a single transmitter
    Range Up to 900' (300 m) line-of-sight
    Encryption AES 128-bit
    Color Sampling YCbCr: 4:2:2 10-bit
    Connector 1 x BNC in
    1 x HDMI in
    LEDs Power:
    1 x Green for power
    1 x Yellow LED for video
    Power Switch On/Off
    Battery Plate Sony L-series type compatible
    Power Cable 1 x 10" (25 cm) R/A LEMO 4-pin to D-Tap male coiled cable
    Mounting Hole 1 x 1/4"-20 threaded hole
    Enclosure Material Milled aluminum
    Protection Plug-n-Play safe
    ±8 kV ESD
    Certification FCC, CE, RoHS
    Operating Temperature 32 to 104°F (0 to 40°C)
    Storage Temperature 4 to 140°F (-20 to 60°C)
    Dimensions 4.5 x 2.6 x 0.9" (11.5 x 6.7 x 2.3 cm)
    Weight 9.5 oz (270 g)

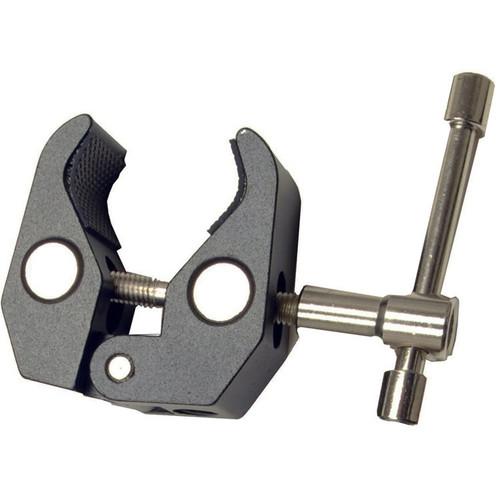

  • Crab Craw Pliers
    Opening 0.5" to 2" (1.3 to 5.1 cm)
  • Hot-Shoe Plate
    Screw 1/4" (0.6 cm)
    Wheel 2 x 1" (2.5 cm) thumb wheel
    Plate 3/4 x 3/4" (1.9 x 1.9 cm) metal plate
    Weight Not specified by the manufacturer

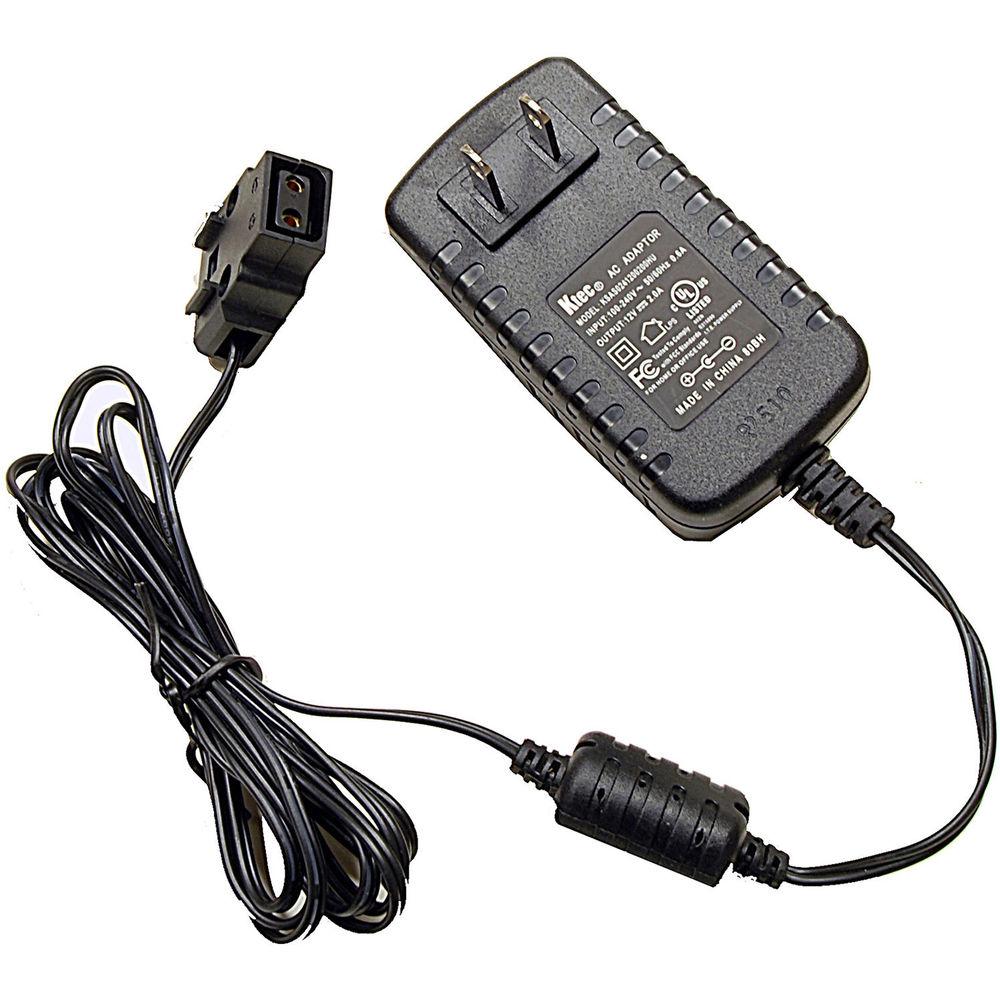

  • Wall-Mount Power Adapter
    Connector 1 North American plug
    Connector 2 D-tap female
    Input 100 to 240 VAC
    Output 12 VDC, 2 A
    Cable Short Cable: 2" (5.1 cm)
    Total: 6' (1.8 m)
    Weight Not specified by the manufacturer

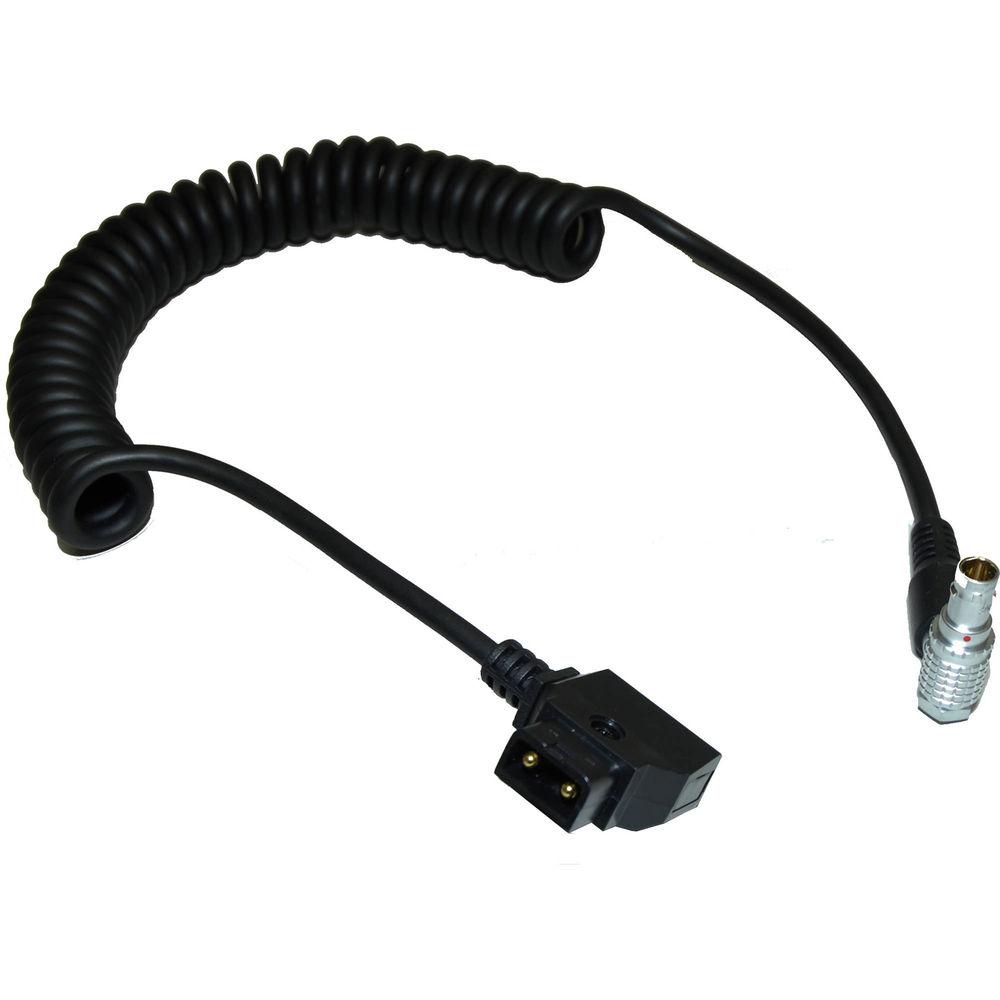

  • Coiled Power Cord (10")
    Connector 1 4-pin LEMO on 2" (5.1 cm) cable
    Connector 2 D-tap female on 2" (5.1 cm) long cable
    Total Length 10" (25 cm)
    Height Coiled: 1/2" (1.2 cm)
    Cable Thickness 1/8" (0.3 cm)
    Box Dimensions (LxWxH) 3.6 x 3.4 x 1.2"
