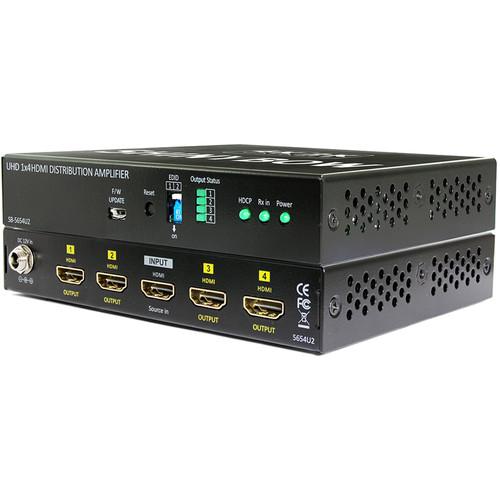

Product description Supporting HD and UHD resolutions, the Shinybow 1 x 4 HDMI 4K2K Distribution Amplifier splits a single HDMI signal for identical output on up to four displays simultaneously with EDID management while maintaining HDCP 2.2 protocol. The amplifier can downscale UHD 4K to HD formats, or pass the unscaled 4K image to your 4K monitors.
The amplifier will transmit 4K signals up to 32', and HD signals up to 98'. It supports LPCM, Dolby-AC3, DTS7.1, and DSD/Dolby TrueHD/DTS-HD master audio. This unit is lightweight and sized for permanent mounting or portable use. - Features
-
- Distribute 4K HDMI video and audio signals to up to four displays
- Supports HDMI 2.0 with EDID HDCP 2.2 compliant; pixel clock up to 600 MHz
- Supports up to Ultra HD 4K2K@60 Hz (4:4:4) at 30/50/60 Hz (2160p), 1080p, 3D
- Supports HDMI 1.3 and 1.4: Supports 3D and LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio
- Supports 1080p60 and 4K/60 Hz resolutions, YUV 4:4:4 color space with HDR 10
- High-bandwidth 18 Gb/s
- Supports EDID management
- Firmware update via micro-USB
- Downscaling
-
- 4K60 RGB to 1080p RGB
- 4K60 YUV 4:4:4 to 1080p YUV 4:4:4 (TV under 300 MHz)
- 4K60 YUV 4:4:4 to 4K60 YUV 420 (TV is 300 MHz)
- 4K60 YUV 4:2:2 (no downscaling, just pass-through; if output doesn't support, there is no image).
- 4K60 YUV 4:2:0 to 1080p YUV 4:4:4
- 4K30 RGB to 1080p30 RGB
- 4K30 YUV 4:4:4 to 1080p30 YUV 4:4:4
- I/O Status
-
- LEDs indicate signal presence for power, input, HDCP, and output
- Select embedded EDID modes
- Reset press button
- Firmware upgraded port
- EDID Management
-
- Mode 1: Full HD 1080p60
- Mode 2: Copy output-1
- Mode 3: Reserved
- Mode 4: 4K@60 Hz
- HDMI Signal Booster
-
- Signal for 1080p distance: 98 feet
- Signal for 4K2K distance: 32 feet
In the Box Shinybow 1 x 4 HDMI 4K2K Distribution Amplifier HDMI Locking Post Replacement Screw Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 1 x 4 HDMI 4K2K Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5654U2 Specs | I/O | Input
HDMI: 1 x Type A
Supports 4K@60 Hz (4:4:4) 8-bit
Outputs
HDMI: 4 x Type A
Supports 4K@60 Hz (4:4:4) 8-bit | | Video Amplifier Bandwidth | 18 Gb/s | | Transmission Distance | 4K: 32' / 9.75 m
HD: 98' / 29.87 m | | Video Format Support | 3840 x 2160: 60/50/30 Hz
1080p and YUV 4:4:4 color space with HDR 10 | | Audio Supported | LPCM
Dolby-AC3
DTS7.1
DSD/Dolby TrueHD/DTS-HD master audio | | Input DC Current | 12 VDC, 1 A | | Operating Temperature | 32 to 100°F / 0 to 38°C | | Dimensions | 5.56 x 4.48 x 1.0" / 14.12 x 11.38 x 2.54 cm | | Weight | 3.65 lb / 1.7 kg |
