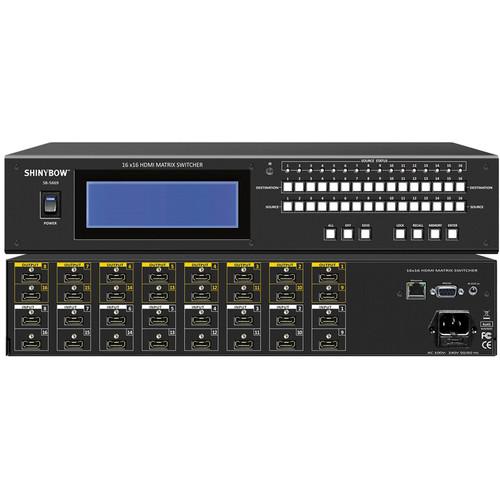

User Manual for Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full EDID Management Learning Click to enlarge the picture
Contents of the user manual for the Shinybow 16 x 16 HDMI Matrix
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow 16 x 16 HDMI Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full EDID Management / Learning is designed for multiple sources and displays features 16 HDMI connections for inputs and 16 HDMI connections for outputs located on the back panel. The unit has EDID management and EDID memory, including the Fast Speed Start feature. This feature permits switching between HDMI sources in as little as 2 seconds.
The switcher supports Ultra HD (3840x2160), 1080p, and 3D formats, and 36-bit Deep Color formats. The front panel includes a large LCD that shows current routing stations of all inputs to outputs, and allows for easy setup of EDID modes. Functional manual control is achieved through push buttons located on the front panel. External functional control is achieved through an RS-232 connection, IR remote control, or IP.
The RS-232 connection allows functions to be controlled by systems such as Control4 (drivers included) or any computerized software / hardware control system. The IP port supports serial commands from any device when using the included software that redirects COM ports to an IP address set in the switcher. The IP port has a built in Web server.
One-to-many or many-to-one connections can be established using the matrix routing switcher. You can easily connect any input device to any output device. You can also establish a single input device to many output devices, eliminating the need to constantly re-route video input and output cables. - Main Features
-
- 16 x HDMI inputs, 16 x HDMI outputs
- HDMI V1.4a and HDCP 2.2 compliant
- HDMI sources can be routed independently to displays
- Video bandwidth up to 6.75 Gb/s
- Wide range of HD resolutions from PC XGA to WUXGA 1920x1200, and HDTV / DTV resolutions 480i/480p, 576i/576p, 720p, 1080i, 1080p, and Ultra HD (3840x2160)
- Digital Video TMDS formats resolution up to 1080p60 with Deep Color 36-bit
- Digital Audio Support: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX- PCM, PCM2, and LPCM2
- Supports EDID for total control of compliant displays AUTO mode and FIX mode
- Switching controlled via the front panel, RS-232, and IR
- EDID configuration via internal modes
- External EDID learning mode (learning destination EDID link to source device)
- Easy to install as either desktop or on the provided rack mount brackets (Rack mountable; 2U high with 19" rack ears)
In the Box Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full EDID Management / Learning Wireless Remote Control with Batteries 19" Rack Mount Kit IR Extender (SB-100) CD-ROM with RS-232 Driver (All Windows Operating Systems) 6' (1.8 m) RS-232 Cable AC / DC Adapter: 12VDC, 5A Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 16 x 16 HDMI Matrix Routing Switcher with Full EDID Management Learning in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5669K Specs | Inputs | 16 x HDMI, Type A | | Outputs | 16 x HDMI, Type A | | Signals Supported | HD 1080p at 60 Hz, H36-bit Deep color, 3D (1.4a) formats | | Compliance | HDCP 2.2 and CEC compliant | | Bandwidth | Double Data Rates (Video): 340 MHz, total 6.75 Gb/s bandwidth | | Video Formats | HDTV/DTV:
Ultra HD (3840x2160)
1080p
1080i
720p
480p
480i
PC
XGA to WUXGA (1920x1200) | | Audio Support | Multi Audio Formats 5.1 / 7.1, MAT(MLP)
Dolby Digital
Dolby TrueHD
Dolby Digital Plus
DTS, DTS-ES 6.1
DTS-HD, DTS-HD-HRA, DTS-HD Master
PCM-2CH | | Controls | IR Wireless Remote Controller
IR External port (OD 3.5 mm earphone jack)
Front panel buttons
Ethernet and RS-232 serial interface | | IR Extender Port | Distance: 1,000' (300 m) | | IR Frequency | 38 kHz | | Safety Approvals | CE, FCC, RoHS (2002/95/EC), REACH | | EDID | Embedded EDID Modes:
FSS (fast start speed
H24-3D
H24-3D-M (multi Audio)
H36-3D
H36-3D-M (multi Audio)
4K2K-3D PCM 2CH
DVI-D 1920x1200-60Hz
External modes:
Learning mode (learning destination EDID link to source device) | | Operational Temperature | 32 to 100°F (0 to 38°C) | | Power Source | Output: 12 VDC, 5 A
Input: 100 to 240 VAC, 50 to 60 Hz, 1.2 A | | Rack Mountable | 2 RU, 19" rack (with rack mount ears) | | Dimensions (W x D x H) | 17.4 x 11.9 x 3.5" (44.2 x 30.3 x 8.8 cm) | | Weight | 8.82 lb (4 kg) | | | | Package Weight | 17.0 lb | | Box Dimensions (LxWxH) | 20.9 x 15.8 x 8.8" |
