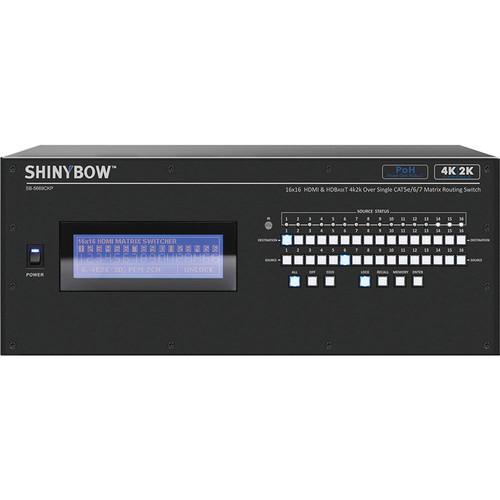

Product description The Shinybow SB-5669CKP is professional 16x16 matrix routing switch featuring 16 HDMI inputs, 16 HDBaseT outputs, and 16 HDMI outputs. Based on the HDBaseT standard, it supports up to Ultra HD 4K HDMI video with embedded EDID, Power-over-Ethernet, audio, RS-232, and bi-directional IR, all over a single CAT5e/6/7 cable, and with a bandwidth of 340 MHz, there is no signal degradation. Signals can be distributed to all of the 32 outputs simultaneously (with channel outputs mirrored). The switcher is fully CEC- and ARC-certified and HDCP compliant.
Using a built-in booster, each HDMI output is capable of driving cable lengths up to 98 ft for a 1080p HD signal and 66 ft for Ultra HD 4K signals. You can also route UXGA/WUXGA/DVI 1920x1200 signals. The switcher can be controlled via the front panel, IR remote, RS-232, or TCP/IP (not a web-browser). An RS-232 Windows GUI interface is provided for matrix routing control (Windows only). EDID management can be selected between 7 different modes. - Key Features
-
- 16 HDMI inputs
- 16 HDBaseT outputs, 16 HDMI outputs
- Up to UHD 4K HDMI video with EDID, PoE, audio, RS-232, and IR over a single CAT5e/6/7 cable
- Distribute to 32 outputs simultaneously (channel outputs mirrored)
- 66 ft Ultra HD 4K transmission
- 98 ft 1080p HD transmission
- Phoenix RS-232 connectors
- 340 MHz bandwidth
- CEC- and ARC-certified
- HDCP 2.0 compliant
In the Box Shinybow 16x16 HDMI & HDBaseT 4K2K CAT5e/6/7 Matrix Routing Switch with PoE 16 x Individual Wireless IR Control 19" Ear Mount Bracket IR Extender Transmitter IR Extender Receiver IR Extender Transmitter Cable IR Extender Receiver Cable CD with Manual, Windows GUI, ISP V1.0 Windows Driver RS-232 Cable, 6.5 ft (2 m) ISO Screws User Guides (Switcher; Ethernet / RS-232 Protocol Instructions) Worldwide Universal Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 16x16 HDMI & HDBaseT 4K2K CAT5e 6 7 Matrix Routing Switch with PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

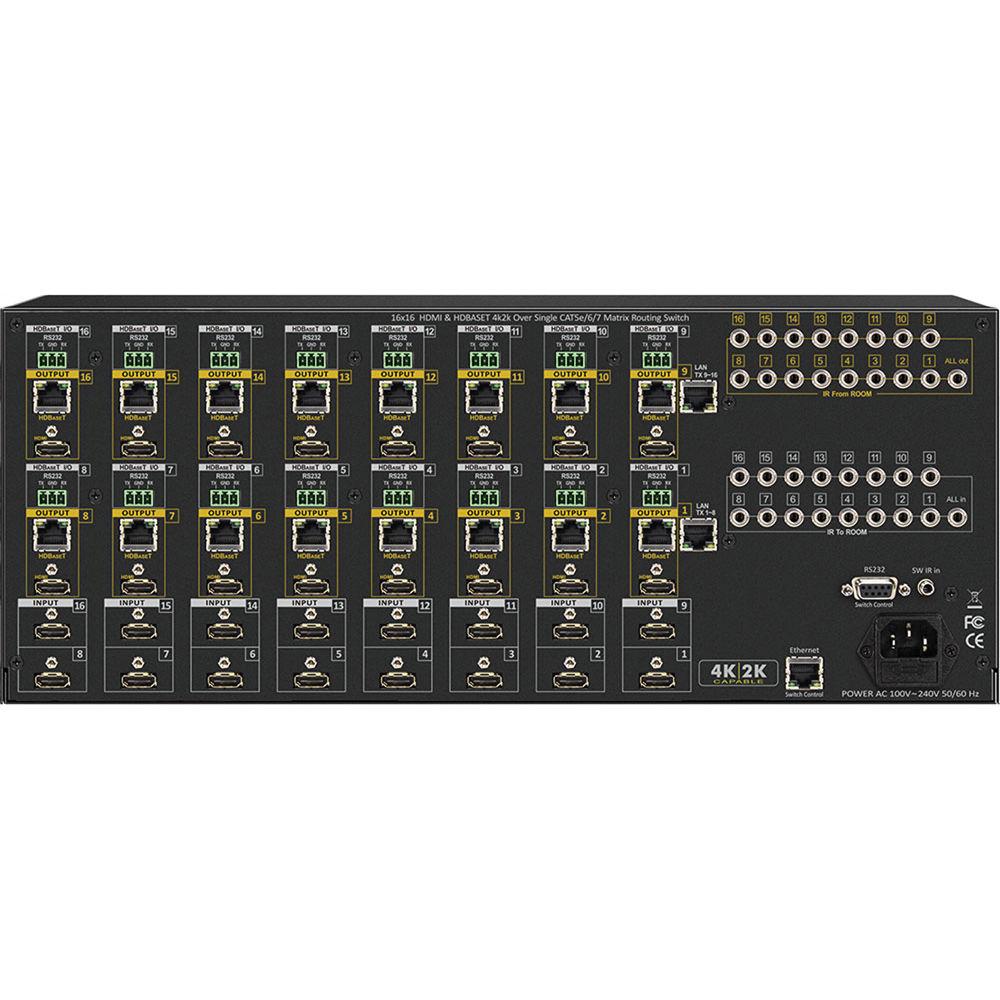

Technical parametersShinybow SB-5669CKP Specs | HDMI Support | HDMI 4K2K, 1080p at 60 Hz, 36-bit Deep Color, 3D | | HDBaseT Support | Bi-directional IR, RS-232, multi-format audio, and PoE over a single CAT5e/6/7 cable | | PoE Support | 48 VDC over CAT5e/6/7 cable | | HDCP/CEC Support | HDCP 2.0 compliant, CEC compliant | | Video Bandwidth | 340 MHz; 6.75 Gbps total | | Supported Video | 480i, 480p, 720p, 1080i/p, Ultra HD 4K (3840 x 2160), with up to 36-bit deep color | | Video Input | 16 x HDMI | | Video Output | 16 x HDMI
16 x HDBaseT on RJ-45 | | Audio Output | 16 x HDMI (embedded): Multi Audio Formats 5.1/7.1, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) | | HDBaseT Control In | 16 x IR in (send IR signals to 16 destinations)
1 x All IR in (send IR signals to 16 destinations) | | HDBaseT Control Out | 16 x IR out (link to receive IR signals from 16 destinations)
1x All IR out (link to receive IR signals from 16 destinations) | | HDBaseT Control I/O | 16 x RS-232 I/O on Phoenix connectors (control 16 destinations)
2 x LAN (switch 1 - 8 and 9 - 16 out ports) | | Switch Controls | 1 x Select and Function buttons on front panel
1 x IR Remote Controller (switch control)
16 x IR Room Remote Controller (switch control)
1 x IR External port (switch control via 3.5 mm OD Jack)
1 x RS-232 series interface (switch control)
1 x Ethernet series interface (switch control) | | Status LEDs | Input status LEDs indicate presence of a live signal | | IR Frequency | 38 KHz | | HDMI Booster | 1080p up to 98 ft (30 m), Ultra HD 4K up to 66 ft (20 m) | | IR Distance | 984 ft (300 m) | | HDBaseT Distance | 328 ft (100 m) | | HDMI Connector | HDMI Type A-SMD 19-pin female | | Power Supply | 100 - 240 VAC, 50/60 Hz | | Safety Approvals | CE, FCC, REACH | | Power Consumption | 10 A max. | | Operating Temperature | 32 to 100°F (0 to 38°C) | | Dimensions | Approx. 19 x 9.9 x 6.9" (48 x 25 x 17.5 cm), 2 RU | | Weight | Approx. 10.5 lb (4.8 kg) | | | | Package Weight | 29.5 lb | | Box Dimensions (LxWxH) | 21.9 x 15.8 x 13.0" |
