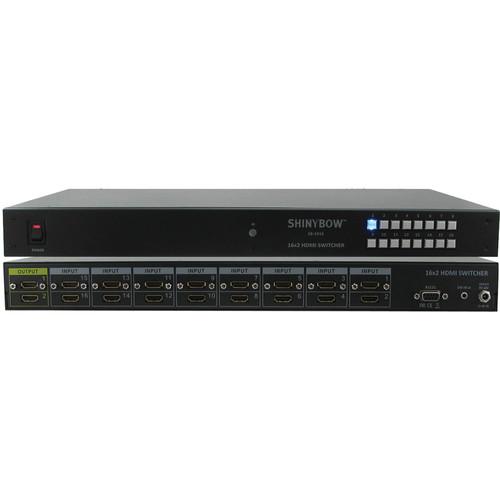

User Manual for Shinybow 16x2 HDMI Routing Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow 16x2 HDMI Routing Switcher
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow 16x2 HDMI Routing Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow 16x2 HDMI Routing Switcher provides 16 HDMI inputs and 2 mirrored HDMI outputs. The switcher supports data rates up to 3.75 Gbps, enabling up to 1080p HDMI formats, including 3D, and PC resolutions up to WUXGA 1920 x 1200. Any of the 16 input signals can be sent to HDMI outputs using the buttons on the front panel, the IR Remote controller, or RS232 via a PC. An RS-232 Windows GUI interface is provided for matrix routing. The switcher is HDCP compliant, with RoHS, CE, and FCC safety certification. The switcher comes included with an IR remote controller, IR extender receiver connector with an approximate maximum distance of 1000' (300m), IR receiver cable, RS-232 cable, 12 VDC 50/60 Hz universal power supply, 19" ear mount bracket, and a CD-ROM with the Windows GUI interface. -
- Up to 16 HDMI source devices
- Two simultaneously active and mirrored HDMI outputs
- HDMI digital video with embedded audio, DVI format, and CEC/HDCP 2.0 compliant
- Link speeds of up to 3.75 Gbps (link clock rate of 225Mb Hz), support HDMI 1.4a 3D formats
- Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV resolutions 480i/480p, 576i/576p, 720p, 1080i, and 1080p
- Compatible with all HDMI source devices, including PC monitors, HDTVs, and audio receivers/amplifiers
- Digital Video TMDS formats Resolution up to 1080p-60 with Deep color 36-bit
- Digital Audio Support : Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
- Various User Interface control:
- Windows based GUI control via RS-232 port
- Front Panel push button
- IR wireless remote control
- Third party RS-232 controller (via simple ASCII)
- Automatic scanning output status via LED show on front panel
- Support IR Remote and IR Extender with distance up to around 1000 feet (300m) maximum
In the Box Shinybow 16x2 HDMI Routing Switcher IR Remote Controller IR Extender Receiver Connector IR Receiver Cable RS-232 Cable 12 VDC Power Supply 19" Ear Mount Bracket CD-ROM with Windows GUI and User Manual Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 16x2 HDMI Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5616 Specs | Inputs | 16 x HDMI Type A | | Outputs | 2 x HDMI Type A, mirrored, simultaneously active | | HDMI Support | 1080p at 60Hz
36-bit Deep color
3D (1.4a) format compatible | | Compliance | HDCP 2.0
CEC | | Video Bandwidth | 225 Mhz
3.75 Gbps total bandwidth | | Video Resolutions | HDTV:
480i
480p
720p
1080i
1080p
PC:
XGA (1024 x 768) to WUXGA (1920 x 1200) | | Audio Formats Supported | 5.1 / 7.1
MAT(MLP)
Dolby Digital
Dolby TrueHD
Dolby Digital Plus
DTS
DTS-ES 6.1
DTS-HD
DTS-HD-HRA
DTS-HD Master
PCM-2CH | | Control | IR remote controller
1 x 3.5mm IR Extender port
1 x RS-232 serial interface
Select and Function buttons on front panel | | Infrared Frequency | 38 KHz | | IR Extender Port | Around 1000' (300 m) maximum distance | | Safety Approvals | CE, FCC, RoHs (2002/95/EC) | | Temperature | 32 to 100°F (0 to 38°C) | | Power Supply | 12 VDC, 3 A
Universal international type 50/60 Hz, 100 to 230 VAC | | Power Consumption | 1850 mA maximum | | Rack Mount | 1 RU, 19" rack | | Dimensions | 19.0 x 9.8 x 1.7" (48.2 x 25.0 x 4.4 cm) | | Weight | 4.74 lb (2.15 kg) | | | | Package Weight | 10.6 lb | | Box Dimensions (LxWxH) | 20.236 x 11.496 x 3.78" |
