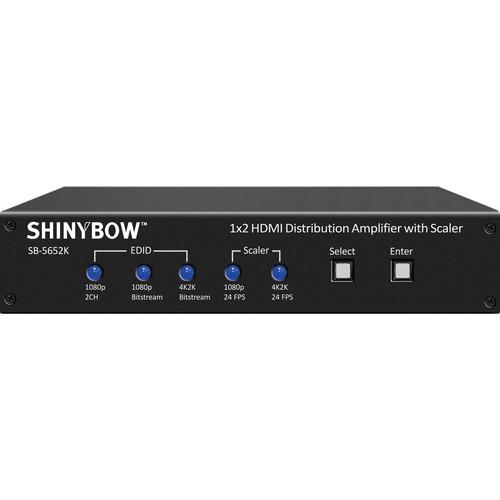

User Manual for Shinybow 1x2 4K2K HDMI Distribution Amplifier with Scaler Click to enlarge the picture
Contents of the user manual for the Shinybow 1x2 4K2K HDMI Distribution Amplifier
- Product category: Distribution Amplifiers (DA's) Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Distribution Amplifiers (DA's)
|
User manual for the Shinybow 1x2 4K2K HDMI Distribution Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description Distribute a 4K video signal to two displays over longer distances with the 1x2 4K2K HDMI Distribution Amplifier from Shinybow. It supports up to Ultra HD 4K resolution and features a signal booster that lets you use up to 65 ft cables for the 4K signal, and up to 98 ft cables for 1080p.
You can also upscale 1080p to Ultra HD, and downscale Ultra HD to 1080p. Additionally, select from three EDID modes for audio/video compatibility across a wider variety of displays. - Key Features
-
- Distribute an HDMI signal to two displays
- Resolutions up to Ultra HD 4K
- 3D video support
- Up to 36-bit color depth
- HDMI signal booster (4K up to 65 ft; 1080p up to 98 ft)
- HDCP compliant
- Wall mount bracket included
- Embedded EDID Modes
-
- Mode 1: 1080p - 2-Ch
- Mode 2: 1080p - Bitstream
- Mode 3: 4K - Bitstream
In the Box Shinybow 1x2 4K2K HDMI Distribution Amplifier with Scaler Power Supply Wall Mount Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 1x2 4K2K HDMI Distribution Amplifier with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5652K Specs | Input | 1 x HDMI 1.4a type A | | Output | 2 x HDMI 1.4a type A | | Supported Video | 3840 x 2160 (UHD 4K)
1080p
1080i
720p
480p
480i
3D video
Up to 36-bit Deep Color | | Supported Audio | 5.1, 7.1, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, PCM-2CH | | Bandwidth | Double Data Rates: 340 MHz
Total: 6.75 Gb/s | | HDCP Compliant | HDCP 2.2 compliant | | Scaling | Ultra HD 4K @ 24 fps can be downscaled to 1080p24
1080p24 can be downscaled to Ultra HD 4K @ 24 fps | | HDMI Signal Boost | 1080p: 98 ft / 30 m
Ultra HD 4K: 65 ft / 20 m | | IR Frequency | 38 kHz | | Power Supply | 12 VDC, 1 A (included)
100 - 240 VAC, 50/60 Hz (universal switch-type power supply) | | Safety Approvals | CE, FCC, REACH | | Operating Temperature | 32 to 100°F / 0 to 32°C | | Dimensions | 5 x 3.1 x 1" / 12.7 x 7.9 x 2.5 cm | | Weight | 1.65 lb / 0.65 kg | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.449 x 7.165 x 1.496" |
