User Manual for Shinybow 1x2 VGA Splitter Amplifier Click to enlarge the picture
Contents of the user manual for the Shinybow 1x2 VGA Splitter Amplifier
- Product category: Distribution Amplifiers (DA's) Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Distribution Amplifiers (DA's)
 |
User manual for the Shinybow 1x2 VGA Splitter Amplifier contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

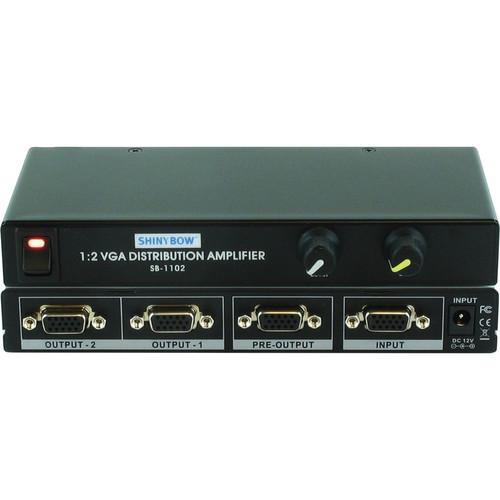

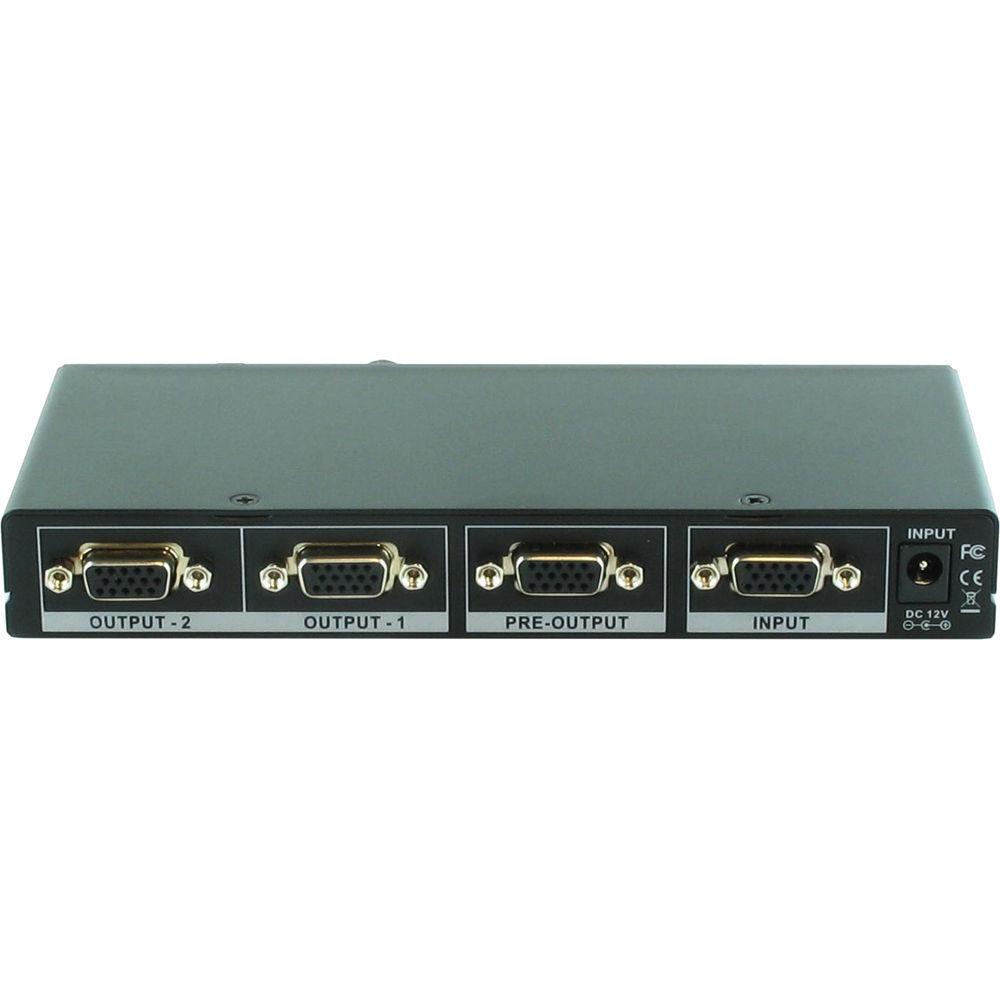

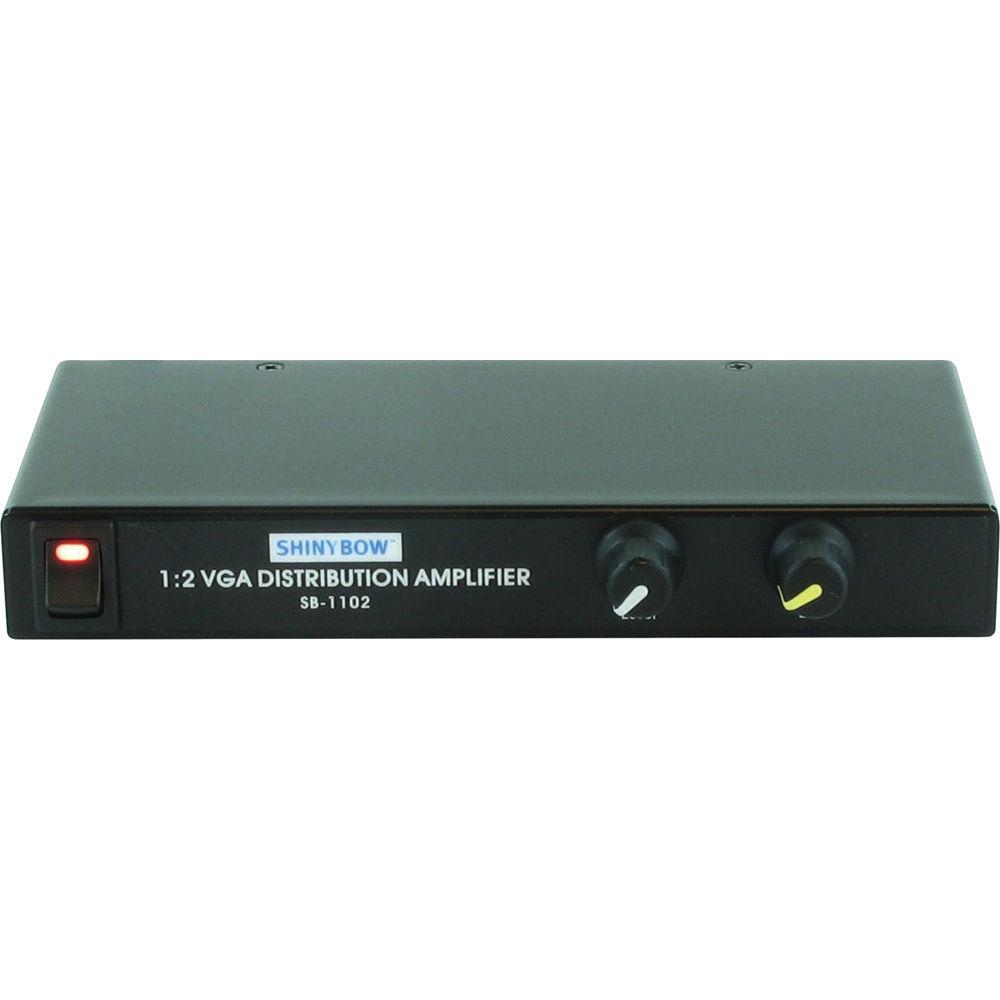

Product description The Shinybow 1x2 VGA Splitter Amplifier distributes 1 VGA signal to 2 VGA devices. A built-in high-speed current feedback amplifier additionally boosts the signal to the level needed to prevent signal loss and picture degradation.
A 5500V/as slew rate lowers the effect of slew rate limiting and results in a large signal bandwidth of 440MHz. A small signal bandwidth of 1GHz delivers sharp picture quality in computer resolutions up to 2048 x 2048 at distances up to 150 feet away without signal deterioration. Signal quality is maintained over a wide bandwidth with worst-case distortion of -40dBc at 250MHz.
The splitter can be used with any VGA-equipped piece of video equipment, such as a computer or and satellite receiver. -
- VGA splitter with a built-in, fast, current feedback amplifier
- 5500 V/as slew rate results in a 440MHz large signal bandwidth
- 1GHz small bandwidth delivers up to 2048 x 2048 from 150 ft away
In the Box Shinybow 1x2 VGA Splitter Amplifier AC/DC Adapter: 12VDC, 300mA User's Guide 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 1x2 VGA Splitter Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-1102G Specs | Connections | 1 VGA input to 2 VGA outputs
1x VGA preview output
HD-15 female VGA connectors | | I/O Signals | RGBHV
RGBS
RGsB (RGB level range 0.5 ~ 2.0 Vp-p) | | Video Bandwidth | Large signal 440 MHz
Small signal (-3dB) 1 GHz | | Slew Rate | 5500 V/as, 4V step, G=+2 | | Settling Time | 10 ns to 0.1%, 2 V step, G=+2 | | Gain Flatness | 0.1 dB to 75 MHz, Rl=150% 0.01 differential gain error;
Rl=1 50% 0.01 differential phase error;
Rl=1 50% | | Low Distortion SFDR | -66 dBc @ 20 MHz, Second Harmonic -75 dBc @ 20 MHz, Third Harmonic | | High Resolution | Maximum 2048 x 2048 | | Amplifier Unit | FCC, CE, RoHS(2002/95/EC) | | Power Supplies | UL, CE, CSA, TUV, BS | | Power Distortion | 400 mA full load | | Power Voltage Input | DC 12V @300mA, ~3A accepted | | Enclosure Type | 1 RU wall-mountable per optional rack mount bracket | | Dimensions | 6.9 x 3.1 x 1" (17.5 x 8 x 2.5 cm) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.4 x 7.2 x 1.5" |
