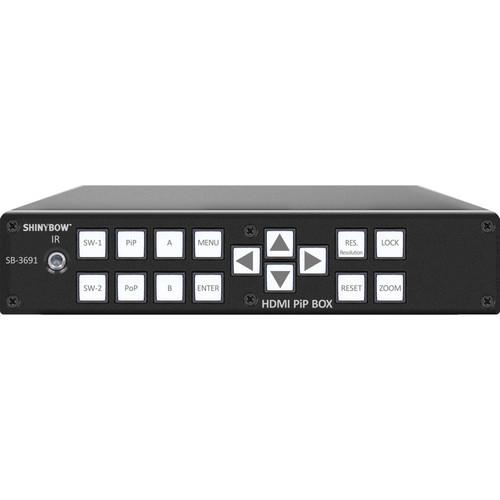

User Manual for Shinybow 2 x 1 HDMI PiP PoP Selector Switch Scaler Click to enlarge the picture
Contents of the user manual for the Shinybow 2 x 1 HDMI PiP
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow 2 x 1 HDMI PiP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The SB-3691 2 x 1 HDMI PiP/PoP Switch Scaler from Shinybow features two HDMI inputs and one HDMI output, with Picture-in-Picture (PiP) and Picture-outside-Picture (PoP) functions in 1080p. It supports video resolutions up to 1080p with a signal bandwidth of 165 MHz, and a data rate up to 4.95 Gbps. Input video can be scaled up to 1080p and down to 480p, with three levels of zoom management available.Control the SB-3691 switcher using the front panel LED buttons, via RS-232, or by using the included IR remote control. Image control settings such as brightness, contrast, and saturation are selectable using the 16-button menu control. Note: PiP and PoP are available in 1080p resolution only. Features - Scaling switcher with two HDMI inputs and one HDMI output
- Supports Picture-in-Picture (PiP) and Picture-outside-Picture (PoP) in 1080p
- S/PDIF and stereo audio (AR/AL) outputs; audio output PCM two-channel support
- Upscales input to 1080p, downscales to 480p
- Control using the LED front panel buttons, IR remote control, or RS-232
- Image control functions via 16-button control panel
- Maximum 98' HDMI cable distance at 1080p60 (cable not included)
In the Box Shinybow 2 x 1 HDMI PiP/PoP Selector Switch Scaler SW-3691 IR Remote Control Wall Mount Bracket HDMI Locking-Post Screws 12V Power Supply Limited 3-Year Warranty Note: IMPORTANT WARRANTY INFORMATION: If you remove the HDMI screw posts, you must use the provided HDMI Locking Post replacement screws to keep the internal HDMI jack secure. Removing the HDMI screws without installing the HDMI Locking Post replacement screws will void your warranty. Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 2 x 1 HDMI PiP PoP Selector Switch Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3691 Specs | Type | Scaler Switcher: 2 inputs to 1 output | | HDMI Support | Up to 1080p60 | | HDCP Compliant | HDCP 1.2-compliant, HDMI 1.3 version | | Video Bandwidth | Double Data Rates: 165 MHz
Total Bandwidth: 4.95 Gbps | | Video Resolutions | 1080p, 720p, 480p
1080i, 480i | | Video Inputs | 2 x HDMI (HDMI or DVI source) | | Output | Video:
1 x HDMI
Audio:
1 x S/PDIF
1 x Stereo audio (AR/AL), supports PCM 2-channel audio | | Downscaling | Down to 480p | | Upscaling | Up to 1080p | | HDMI Signal Boost | Up to 98' (30 m) (cable not included) | | Infrared Frequency | 38 kHz | | Firmware Updates | Via RS-232 | | HDMI Connector | Type A: SMD 19-pin female | | Power Supply | Output: 12 VDC
Input: 100 to 240 VAC, 50/60 Hz, universal type | | Operating Temperature | 32 to 100°F (0 to 38°C) | | Dimensions | 6.7 x 5.7 x 1.5" (170 x 145 x 38 mm) | | Weight | 1.5 lb (0.68 kg) | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 11.3 x 10.0 x 2.9" |
