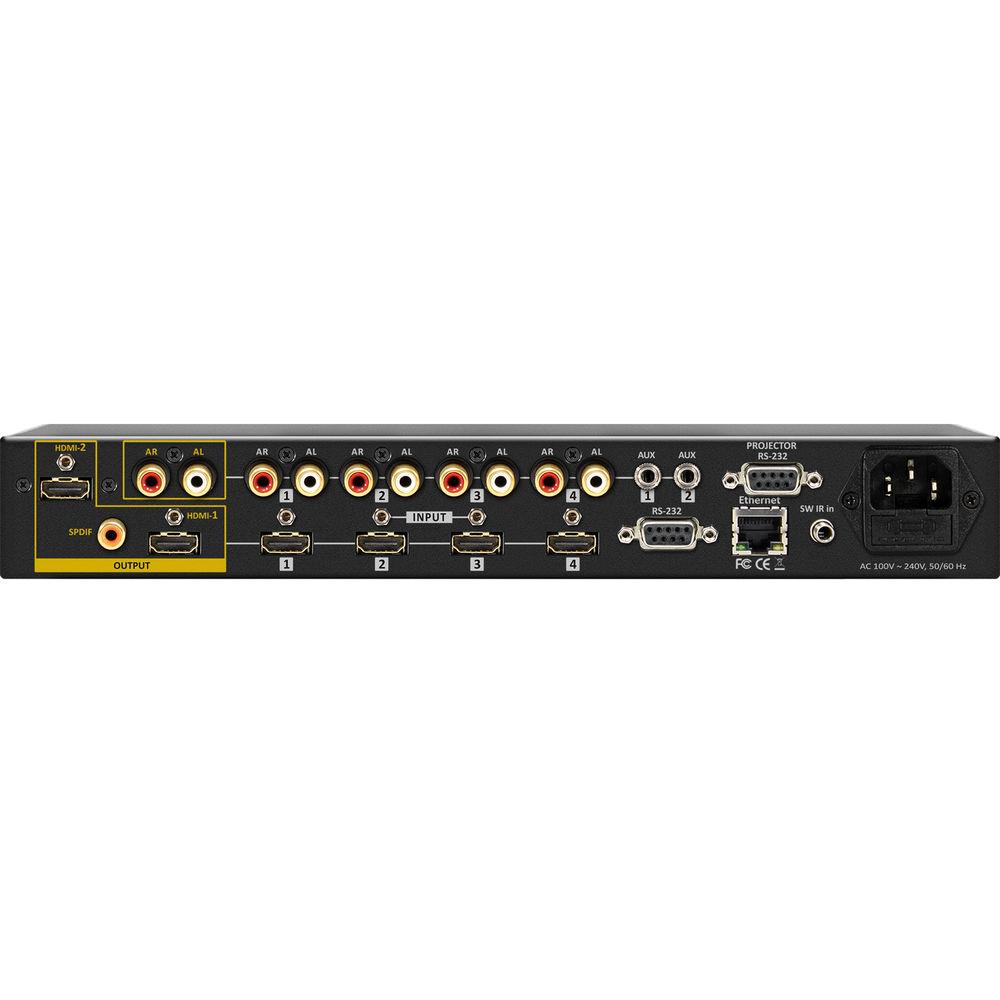

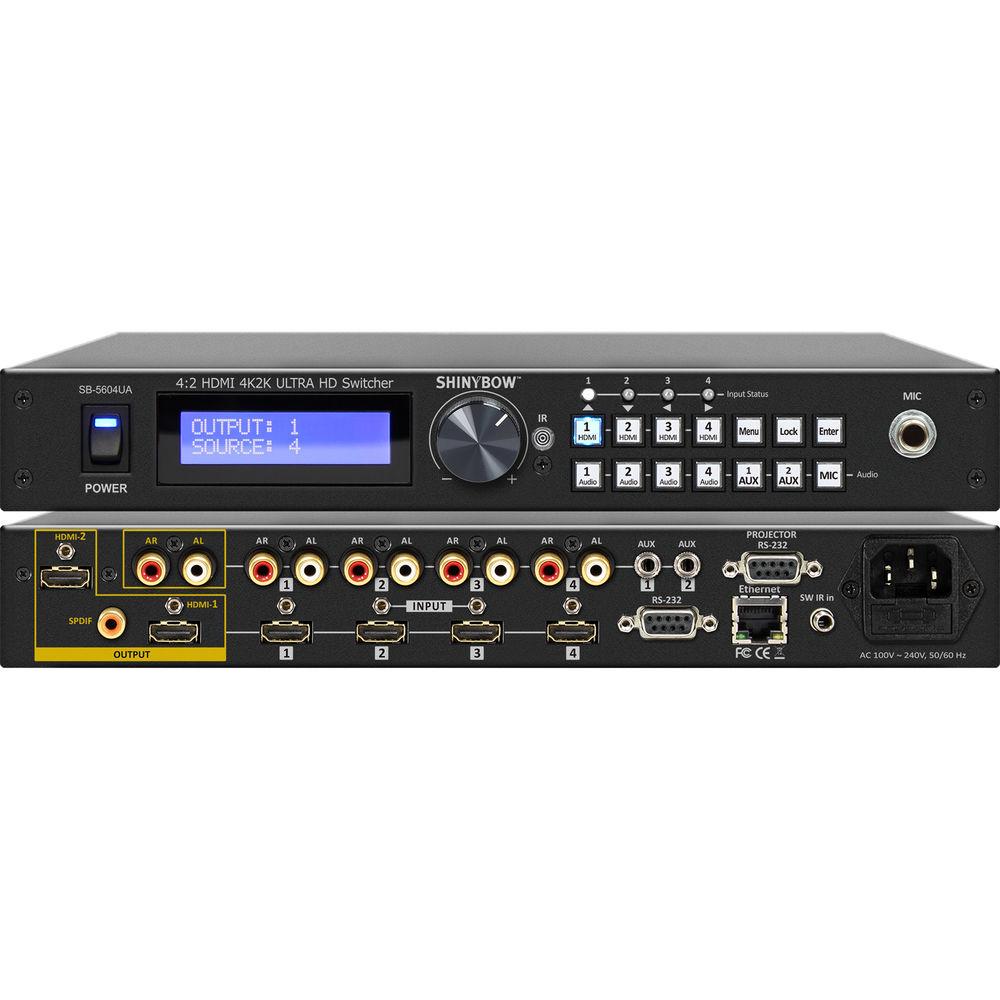

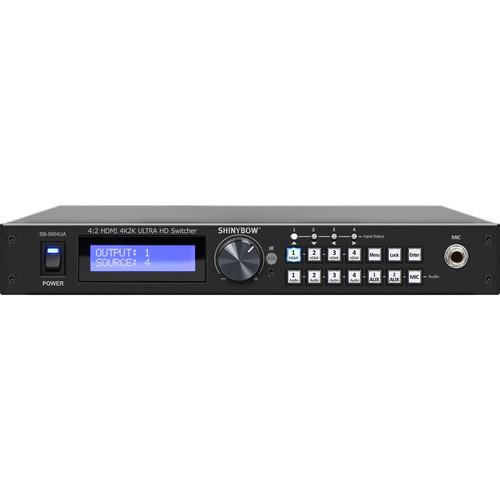

User Manual for Shinybow 4x2 Mirrored HDMI Routing Switcher with Audio Click to enlarge the picture
Contents of the user manual for the Shinybow 4x2 Mirrored HDMI Routing Switcher
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
 |
User manual for the Shinybow 4x2 Mirrored HDMI Routing Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow 4x2 Mirrored HDMI Routing Switcher with Audio switches four HDMI inputs to two HDMI and one S/PDIF outputs. It also supports switching of four stereo audio, one auxiliary audio (analog), and one microphone input to one stereo audio (AR/AL) output. It supports HD/3D/4K2K videos at frame rates up to 60 Hz. The 6G signal supports a wide frequency range of 25 to 600 MHz (3860 x 2160) TMDS clock. The scaler is HDMI 1.4/2.0 and CEC/HDCP 1.4/2.2 compliant, with CE/FCC and RoHs certifications.
The scaler offers control menu function keys such as Menu, Exit, EDID, Mute, and Audio (Audio Breakaway). Control is provided via front panel push-buttons, IR remote, RS-232, or TCP/IP (not a web browser). An RS-232 Windows GUI interface is provided for switch control (Windows only). - Supports Ultra HD (4x2) HDMI 4K@60 Hz and (6x1) audio/microphone/auxiliary audio
- HDMI digital video TMDS link speeds up to 6 Gb/s
- Wide frequency range of 25 to 600 MHz (TMDS clock)
- Embedded HDCP and DVI formats
- HDMI 1.4/2.0 and CEC/HDCP 1.4/2.2 compliant
- Worldwide control EDID modes for SD/HD audio and HD/3D/4K2K video up to 4K@60 Hz
- Digital audio support: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, and LPCM2
- Supports ARC (Audio Return Channel) via S/PDIF output port connected to the sound device
- Audio breakaway function selects video source and audio, microphone, or auxiliary audio sources
- Supports one microphone and two auxiliary audio sources (analog stereo)
- Audio output audio balance (0 to +50) and volume control (1 to 100 levels) with mute function
- Supports 14 worldwide control function keys
- Embedded EDID modes: 480p, 720p, 1080p, 4K@30 Hz, 4K@60 Hz
- Automatic scanning input and output status via LED on front panel
- Using the built-in HDMI signal booster function, HDMI output can send 1080p signal up to 98', and 4K@60 Hz up to 66'
- IR remote control frequency (38 kHz)
- Windows-based GUI via RS-232 interface control driver for 2000, XP, Windows 7 32/64, and Windows 10
- IR wireless remote controller
- Third-party RS-232 controller (via simple ASCII)
- 1 RU 19" rack-mountable (#1U-304L rackmount)
In the Box Shinybow 4x2 Mirrored HDMI Routing Switcher with Audio SW-5604UA Master Wireless IR Remote Control 1U-304L Ear Mount Bracket (19") SB-100 IR Receiver Set with Assembly Plug vvrfudydcxewyaf SB-100C IR Receiver Cable - 6' RS-232 Cable (6.5') HDMI Locking Post Screws Universal Power Supply RS-232/Ethernet Protocol Instructions Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 4x2 Mirrored HDMI Routing Switcher with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5604UA Specs | Type | 4 x HDMI inputs to 2 x HDMI outputs
6 x Audio inputs to 1 x audio output box | | Inputs | 4 x UHD HDMI (4K@60 Hz)
4 x Stereo audio R/L, 1 microphone, 2 auxiliary audio (analog) | | Outputs | 2 x UHD HDMI (4K@60 Hz)
1 x S/PDIF (Digital Audio 5.1)
1 x Stereo audio (with balance and volume control) | | Compliant | HDMI 4K@60 Hz, HDMI 1.4/2.0, HDCP 1.4/2.2 CEC compliant | | Video Bandwidth | Double Data Rates: Bandwidth 600 MHz
Switch Total: 6 Gb/s | | Video Support | Digital: HD/3D/4K2K video up to 4K@60 Hz frame rate | | Audio Support | HDMI Multi-Audio Formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTSES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM 2-channel) | | EDID Management | Embedded EDID Modes: 720p, 1080i, 1080p, 4K@30 Hz, 4K@60 Hz
Select Learning Mode: Learning destination EDID to link source | | ARC (Audio Return Channel) | Audio Return Channel receiver/transmitter via S/PDIF output | | Source | Input status LEDs indicates live signal presence | | Distance | IR External Distance: 984' / 300 m | | Breakaway Connection | Audio: Output support select different video or audio source function | | Keys | Function Control
HDMI source (1 thru 4)
Audio source (1 thru 4)
Menu
Lock
Enter
2 AUX
MIC | | Controls | Select and Function buttons on front panel (data status via LCM panel show out)
IR remote (switch control)
IR external port (switch control via 3.5 mm OD Jack)
RS-232 series interface (switch control)
Ethernet series interface (switch control) | | HDMI Signal Boost | Cable Distance
4K2K: 66' / 20 m
1080p: 98' / 30 m | | Infrared Frequency | 38 kHz | | Firmware Updates | Via RS-232 | | I/O Connectors | HDMI I/O Connector: HDMI type A | | Operating Temperature | 32 to 100°F / 0 to 32°C | | Rack Mount | 1 RU rackmount bracket | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Safety Approvals | CE, FCC, REACH | | Dimensions (L x W x H) | 11.96 x 5.91 x 1.73" / 30.4 x 15.0 x 4.4 cm | | Weight | 3.85 lb / 1.75 kg | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 13.0 x 10.5 x 3.0" |
