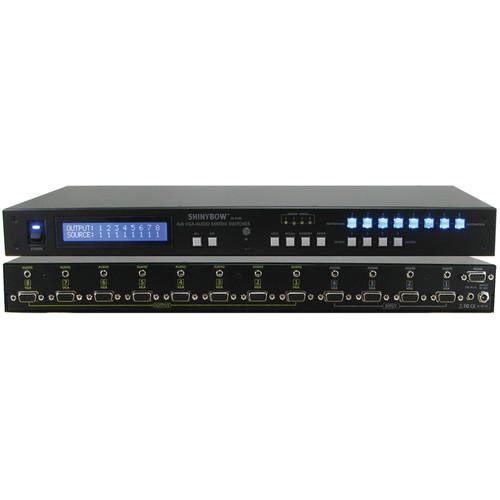

Product description The Shinybow 4x8 VGA with Stereo Audio Matrix Routing Switcher allows you to route 4 VGA inputs to 8 VGA outputs in different configurations. Any input can be routed to any output, all outputs, or a combination of outputs. A corresponding 3.5mm mini stereo audio jack is available for each input and output. The switcher supports resolutions up to 1920 x 1200 HD (WUXGA).
Routing selections can be made via the front panel, an included remote control, or RS-232 serial control and monitored on the front panel LCD. An IR receiver supporting 984 ft of IR distance is included for remote control of the switcher from the room with the displays. A rack mount set is included for installing the switcher in a 1U 19" rack. - Key Features
-
- 4 VGA and 3.5mm stereo audio inputs
- 8 VGA and 3.5mm stereo audio outputs
- Routes any input to any output, all outputs, or a combination of outputs
- Supports resolutions up to 1920 x 1200 (WUXGA)
- 450MB bandwidth
- Includes IR receiver supporting up to 984 ft IR distance
- 1U rack mountable using an included rack mount set
- Controllable via the front panel, IR remote control, and RS-232
In the Box Shinybow 4x8 VGA with Stereo Audio Matrix Routing Switcher AC/DC Adapter IR Remote Control 1U Rack Mount Set SB-100 IR Receiver Set with Assembly Plug rxverffvvxeswqyaudru SB-100C IR Receiver Cable - 6' RS-232 Cable RS-232 Driver CD (for Windows Systems) RS-232 Operation Manual (V2.0) User's Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 4x8 VGA with Stereo Audio Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-4148LCM Specs | Input | 4x VGA on HD-15
4x 3.5 mm mini stereo audio jack | | Output | 8x VGA on HD-15
8x 3.5 mm mini stereo audio jack | | Bandwidth | 450 MHz (-3 dB), 200 mVp-p | | Supported Resolution | 1920 x 1200 (WUXGA) | | Crosstalk | -83 dB @ 5 MHz | | Serial Control | RS-232 interface via DRV on a PC | | Gain Control | 60 MHz 0.1 dB gain flatness | | Power Supply | DC 12 V / 2 A (consumption 1.2 A Max)
Use Universal Switch Type 50/60 Hz, 100-230 VAC | | Housing | Metal | | Safety Approvals | CE, FCC, VCCl, Erp, WEEE | | Dimensions | 19 x 7.9 x 1.7" (48 x 20 x 4 cm) | | Weight | Approx. 3 lb (Approx. 1.4 kg) | | | | Package Weight | 9.05 lb | | Box Dimensions (LxWxH) | 20.2 x 11.4 x 3.8" |
