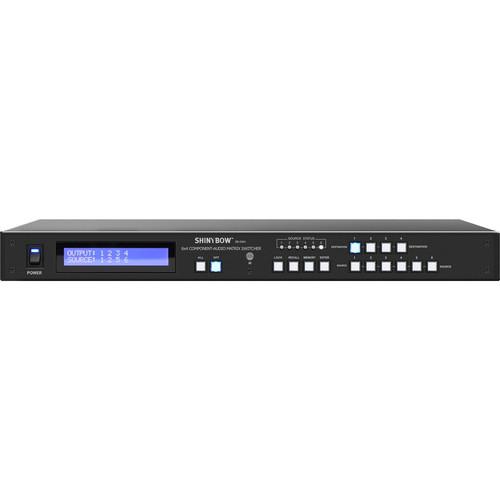

Product description This Shinybow 6x4 Component Video/Stereo Audio Matrix Routing Switcher can be used to switch component video and stereo audio signals. A true matrix switcher, the unit allows you to route any video input to any video output, including simultaneously routing a single input to every output. It supports 480p, 576i/p, 720p, and 1080i/p via component video input.
You can control the switcher via a PC using RS-232, the included IR remote control, or the unit's front panel buttons. You can mount this unit on a desktop, or into a full-size rack using the included rackmount ears. - Six input, four output Matrix switcher
- Front panel button control
- Supports 480p, 576i/p, and HDTV high-definition resolutions 720p, 1080i/p
- Compatible with all Component Video devices, Plasma TV displays and HDTVs
- Supports RS-232 serial interface protocol command list
- Includes 12 VDC Power supply
In the Box Shinybow 6x4 Component Video/Stereo Audio Matrix Routing Switcher IR Remote Control Rackmount Ears SB-100 IR Extender Receiver Set RS-232 Cable 12 VDC Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 6x4 Component Video Stereo Audio Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5564LCM Specs | Chassis Material | Metal | | Inputs | 6 | | Outputs | 4 | | I/O Signals | Component Video (YPbPr): 0.5 to 1.0 Vpp, DDC 5 Vpp
Formats: 480i/p, 576i/p, 720p, 1080i/p
Video Bandwidth: 325 MHz, -3 db), 200 mVpp | | Audio Supported | Stereo Audio (AR/AL) | | All Hostile Crosstalk | -83 dB @ 5 MHz | | RS-232 Control | DRV on a PC | | Gain Control | 60 MHz 0.1 dB gain flatness | | Power Supply | Input: 100 to 230 VAC, 50/60 Hz
Output: 12 VDC/2A | | Safety Approvals | CE, FCC, RoHS (2002/95/EC) | | Dimensions | 6.89 x 3.15 x 0.69" / 17.5 x 8 x 1.75 cm | | Weight | 5.5 lb / 2.5 kg |
