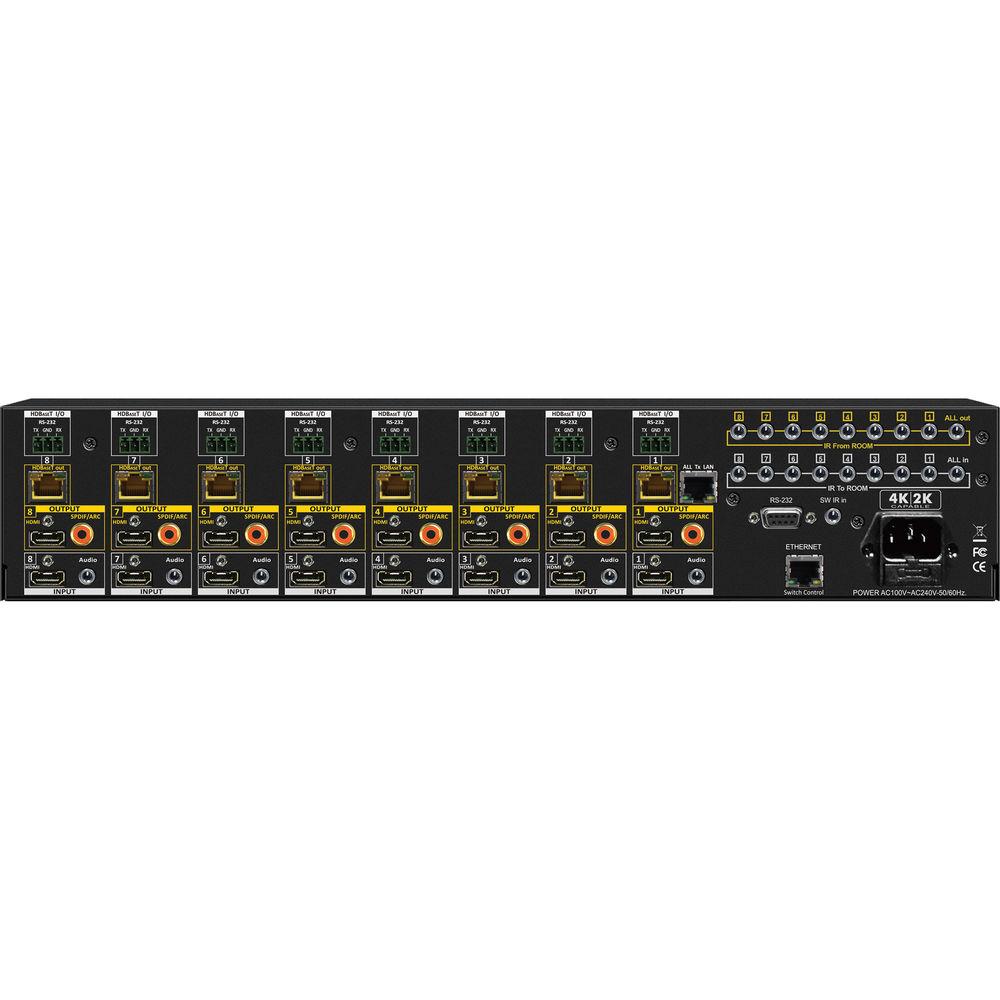

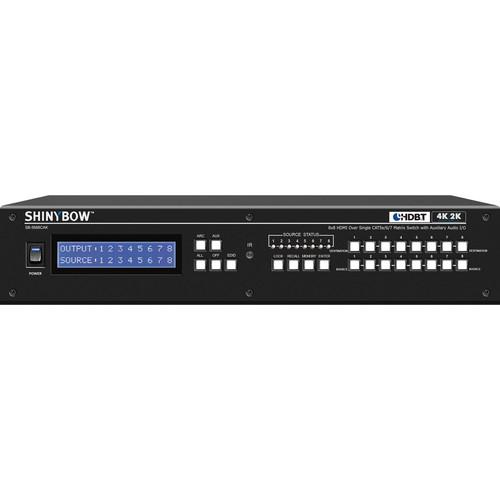

User Manual for Shinybow 8 x HDMI In to 8 x HDMI or HDBaseT Out Matrix Routing Switcher with Audio I O Click to enlarge the picture
Contents of the user manual for the Shinybow 8 x HDMI In to
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
 |
User manual for the Shinybow 8 x HDMI In to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow 8 x HDMI In to 8 x HDMI or HDBaseT Out Matrix Routing Switcher with Audio I/O supports 8 HDMI and 8 auxiliary audio inputs. It features 8 HDMI, 8 SPDIF, and 8 HDBaseT outputs. This switcher is based on HDBaseT standards and supports transmission of full resolution HDMI video with embedded EDID, audio, RS-232, Ethernet, and bi-directional IR, over a single category cable to compatible receivers (sold separately). With a signal bandwidth of 340 MHz, the switcher supports distribution of full HD, 4K2K, HDMI V1.4a, and 3D formats with data rates of up to 6.75 Gb/s. It also supports UXGA, WUXGA, DVI, and 1920 x 1200 resolutions. This switcher can simultaneously transmit 8 input signals to 16 outputs (channel outputs mirrored). It is CEC and ARC certified, and is compliant with HDCP 2.0 protocols.The SB-5688CAK features 8 3.5mm AUX audio input to support transmission of analog audio signals. When used with an HDBaseT Receiver (not included), the switcher allows you to connect a display in remote locations. The EDID management can be selected between 8 different modes. Control is provided via front panel push buttons, IR remote, RS-232, or TCP/IP (not a web-browser). An RS-232 Windows GUI interface is provided for matrix routing control (Windows only). - 8 HDMI inputs with auxiliary audio support can be switched to 8 HDMI with S/PDIF outputs and 8 HDBaseT Transmitter
- HDBaseT specification with support for 48VDC, IR, RS-232, multiple audio formats, and HD signals
- Transmits video signals over a single CAT6/6a/7 cable
- Supports HDMI digital video and DVI format
- Supports worldwide control EDID modes
- Link speeds of up to 6.75 Gb/s (link clock rate of 340 MHz)
- Supports HDMI 4K2K, 1.4a 3D formats
- Supports a wide range of video resolutions from XGA to WUXGA and HDTV/DTV HDMI resolutions from 480i/480p, to 4K2K (24/30 Hz)
- Compatible with all HDMI source devices, PC monitors, Plasma HD displays, HDTV, and audio receivers or audio amplifiers
- Supports digital video TMDS format resolutions up to 4K2K with Deep color 36-bit
- Offers digital audio support for Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, and LPCM2
- Support digital audio ARC or S/PDIF (from HDMI source or auxiliary audio)
- Can be controlled via a Windows based GUI control via RS-232 port, front panel push buttons, IR wireless remote controller, Ethernet switch control, and third party RS-232 controller (via simple ASCII)
- Supports ARC, AUX, All, Off, EDID, Lock, recall, memory, and enter functions via front panel buttons
- Supports embedded FSS, H24-3D, H24-3D-M, H36-3D, H36-3D-M, 4K2K-3D, and DVI-D 1920 x 1200 60 Hz EDID modes
- Features single learning and multiple learning external modes
- Automatic scanning input and output status via LCM show on front panel
- Using the build-in booster, each HDMI output port is capable of driving cable lengths 1080p up to 98' (30m) & 4K2K up to 66' (20m)
- Supports IR remote and IR extender with distance up to 984' (300 m)
- Operates from 90 to 240 VAC, 50/60 Hz 1
Please Note: Universal power adapter included. close In the Box Shinybow 8 x HDMI In to 8 x HDMI or HDBaseT Out Matrix Routing Switcher with Audio I/O Master Wireless IR Remote Control (SW-HD88CAK) 8 x Wireless IR Control (SW-HD88CAK / IR01 to IR08) 19" Ear Mount Bracket (Part # 2U-440L) SB-101 IR Emitter / Transmitter with Assembly Plugs SB-100 IR Receiver Set with Assembly Plug SB-101C IR Emitter / Transmitter with Cable SB-100C IR Receiver Cable - 6' Windows GUI & ISP V1.0 Windows driver CD 6' RS-232 Cable 100 to 240 VAC, 50/60 Hz Universal Power Supply ISO Screws Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 8 x HDMI In to 8 x HDMI or HDBaseT Out Matrix Routing Switcher with Audio I O in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5688CAK Specs | Video Input | 8 x HDMI (HDMI or DVI digital source) | | Audio Input | 8 x Audio (Analog Stereo, AUX port. 3.5 mm Jack) | | Video Output | 8 x HDMI (to destination)
8 x HDBaseT Transmitter (via category cable & RJ-45 connector) | | Audio Output | 8 x S/PDIF: Multi Audio Formats 5.1 from HDMI or LPCM-2CH from Auxiliary audio
8 x ARC: TV Return Channel Audio
8 x HDMI: Multi Audio Formats 5.1 / 7.1, MAT (MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6 CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) | | Control | HDBaseT Control I/O
8 x RS-232 I/O (Control 8 rooms RS-232 via switcher's HDBaseT extender transmitter)
HDBaseT Control In
8 x IR in (send IR signals to 8 Rooms via HDBaseT extender)
1 x All IR in (send IR Signals to 8 rooms - Via HDBaseT transmitter)
HDBaseT Control Out
8 x IR out (link to receive IR signals from 8 rooms via HDBaseT extender)
1 x All IR out (link to receive IR signals from 8 rooms via HDBaseT extender)
1 x LAN (All Switcher HDBaseT Transmitter Ethernet link to HDBaseT receiver) | | Switch Controls | 1 x Select & Function buttons on front panel (Data status via LCM panel show out)
1 x IR Remote Controller
8 x IR room remote controller
1 x IR External port (via 3.5 mm OD Jack)
1 x RS-232 series interface
1 x Ethernet series interface | | Function Controls | ARC, AUX, HDBaseT, ALL, Off, Recall, Enter, Memory, Lock, EDID, Destination (1 thru 8), Source (1 thru 8) | | EDID Management | Select Embedded EDID Modes
Mode1: FSS
Mode2: H24-3D
Mode3: H24-3D-M
Mode4: H36-3D
Mode5: H36-3D-M
Mode6: 4K2K-3D, PCM-2CH
Mode7: DVI-D 1920 x 1200 60 Hz
Mode8: Auto
Select Learning Mode: Learning Destination EDID to link source | | Infrared Frequency | 38 kHz | | Transmission Distance Supported | IR: 984' (300 m) maximum
HDBaseT: 328' (100 m) maximum | | HDMI Connector | HDMI Type A - SMD 19-pin female type | | Status | Source: Input status LEDs indicates presence of a live signal | | Support | HDMI: HDMI 4K2K, 1080P @ 60 Hz, 36-bit Deep color, 3D HDMI V1.4 formats
HDBaseT: Bi-directional IR, RS-232, Multi format Audio, and Ethernet, over one CATx cable
HDCP / CEC: HDCP 2.2 Compliant, CEC Compliant
Digital Video Support: HD:480i/ 480p/ 720p/ 1080i/p and 4K2K up to 36-bit deep color | | Video Bandwidth | Double Data Rates: 340 MHz, 6.75 Gb/s total | | Operating Temperature | 32 to 100°F (0 to 38°C) | | Power Supply | 100 to 240 VAC 50/60 Hz | | Power Consumption | 10 A maximum | | Safety Approvals | CE, FCC, REACH | | Rack Mount | 2 RU High, 19.0" (48.2 cm) rack mount #2U-440L (included) | | Dimensions (L x W x H) | 19.0 x 9.8 x 3.5" (48.2 x 25.0 x 8.8 cm) | | Weight | 8.3 lb (3.7 kg) | | | | Package Weight | 18.75 lb | | Box Dimensions (LxWxH) | 20.8 x 15.6 x 8.5" |
