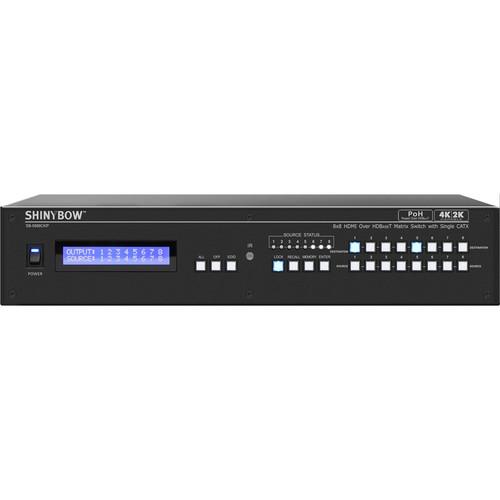

User Manual for Shinybow 8 x HDMI In to 8 x HDMI or HDBaseT PoH Out Matrix Routing Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow 8 x HDMI In to
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
 |
User manual for the Shinybow 8 x HDMI In to contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

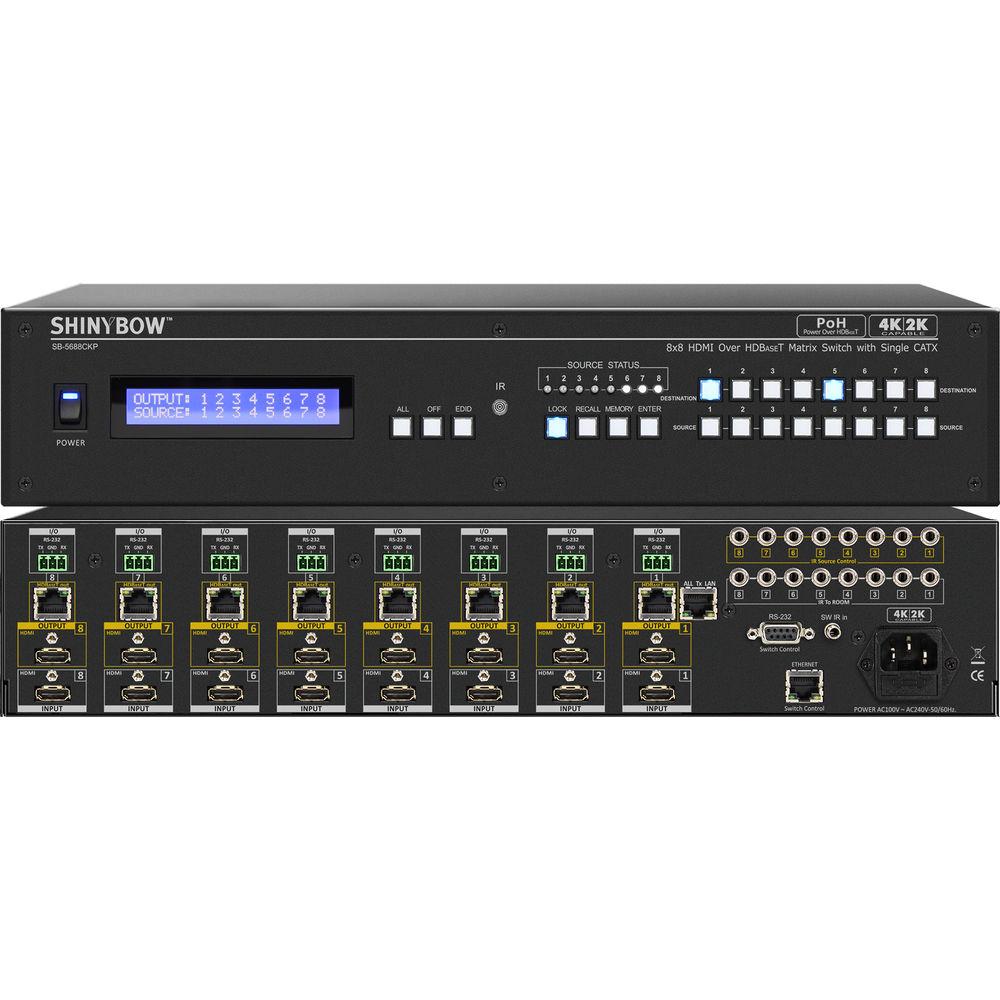

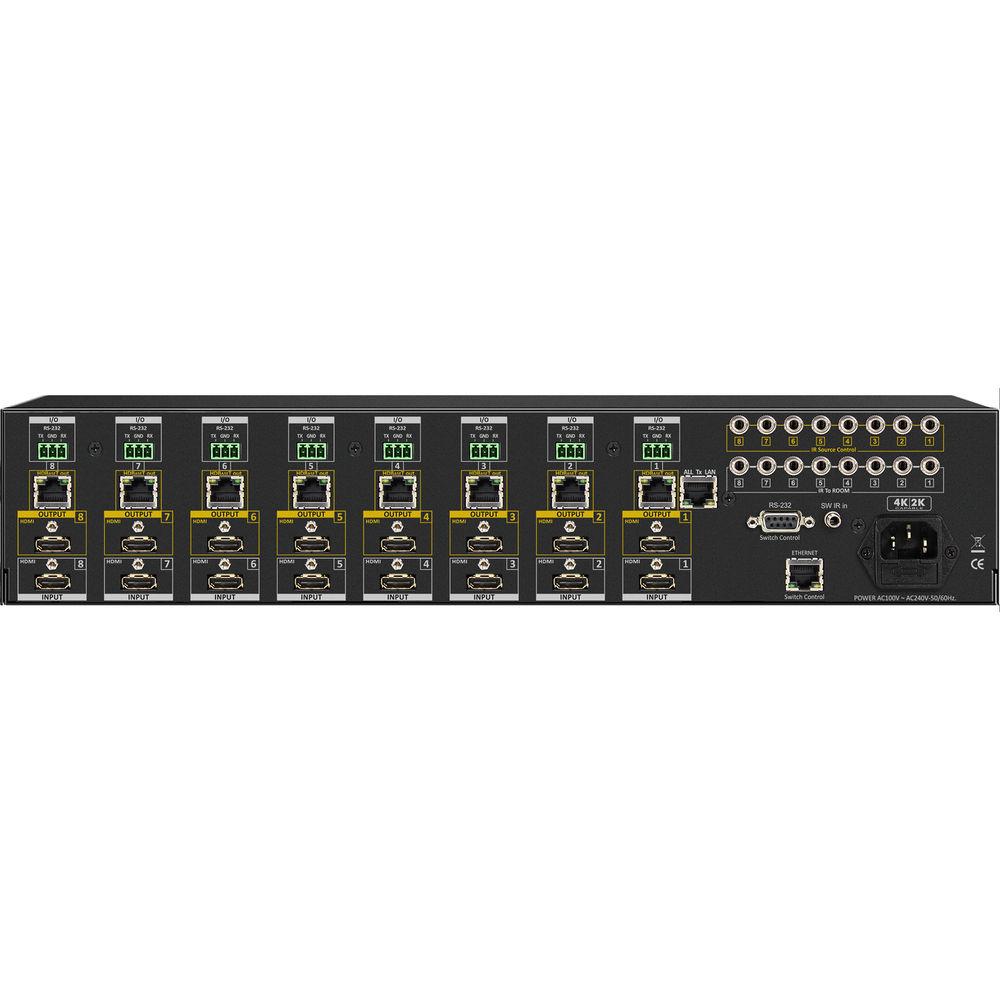

Product description The 8 x HDMI In to 8 x HDMI or HDBaseT PoH Out Matrix Routing Switcher from Shinybow supports eight HDMI inputs, eight HDMI outputs, and eight HDBaseT transmitters with POH outputs. HD digital signals can be selected and distributed from any eight inputs to any sixteen outputs simultaneously (channel outputs mirrored). The switcher is based on HDBaseT standards, and transmits HDMI, bidirectional IR, RS-232, and Ethernet signal for up to 328' over a single CatX cable. The switcher is HDCP 1.3 compliant and supports HDMI 1.4a 3D format, achieving a data rate up to 6.75 Gb/s with signal bandwidth 340 MHz. The 8x8 HDMI HDBaseT Matrix Switcher supports wide range of HD resolutions from PC XGA to WUXGA (1920 x 1200). It also supports HDMI resolutions up to UHD 4K. The EDID management can be selected between seven different modes. The switcher can be controlled via the push-buttons on the front panel, via IR remote, RS-232, or TCP/IP protocol. Additionally, an RS-232 GUI interface is provided for matrix routing control (Windows only). - Key Features
-
- Supports transmission of HDMI digital video with embedded HDCP, DVI format, and CEC
- Supports 480p/i, 576p/i, 720p, 1080p/i, and UHD 4K (24/30 Hz)
- Supports Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX, PCM, PCM2, LPCM2
- Supports standard HDMI multichannel audio (digital audio) input and output
- Seven control function keys: All / Off / EDID / Lock / Recall / Memory / Enter
- Seven embedded EDID modes
- Automatic scanning of input and output status via LCM shown on the front panel
- Using the built-in booster, each HDMI port can support cable lengths up to 98' (1080p) or 66' (4K)
- Supports IR remote and IR extender with distance up to 984' maximum
- Supports universal power adapter 100 to 240 VAC, 50/60 Hz
In the Box Shinybow 8 x HDMI In to 8 x HDMI or HDBaseT PoH Out Matrix Routing Switcher Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 8 x HDMI In to 8 x HDMI or HDBaseT PoH Out Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5688CKP Specs | Configuration | 8x8 HDMI to HDBaseT matrix switch | | HDMI Support | 1080p, UHD 4K @ 30 Hz, 36-bit Deep Color, HDMI 1.4a 3D | | HDBaseT Support | Bidirectional IR, RS-232, multi-format audio over one CatX cable | | Compliance | HDCP 1.3, CEC | | Video Bandwidth | Double Data Rates: 340 MHz
Total: 6.75 Gb/s | | Video Input | 8 x HDMI (HDMI or DVI digital source) | | Video Output | 8 x HDMI | | Audio Output | 8 x HDMI
Multi-audio formats 5.1 / 7.1, MAT(MLP), Dolby Digital, Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6CH, DTS-HD, DTS-HD-HRA, DTS-HD Master, (PCM 2-Ch) | | HDBaseT Control In | 8 x IR
1 x All, IR (send IR signals to room) | | HDBaseT Control Out | 8 x IR
1 x All, IR (send IR signals from room) | | HDBaseT Control I/O | 8 x RS-232 I/O | | Switch Controls | 1 x Select and function button on front panel

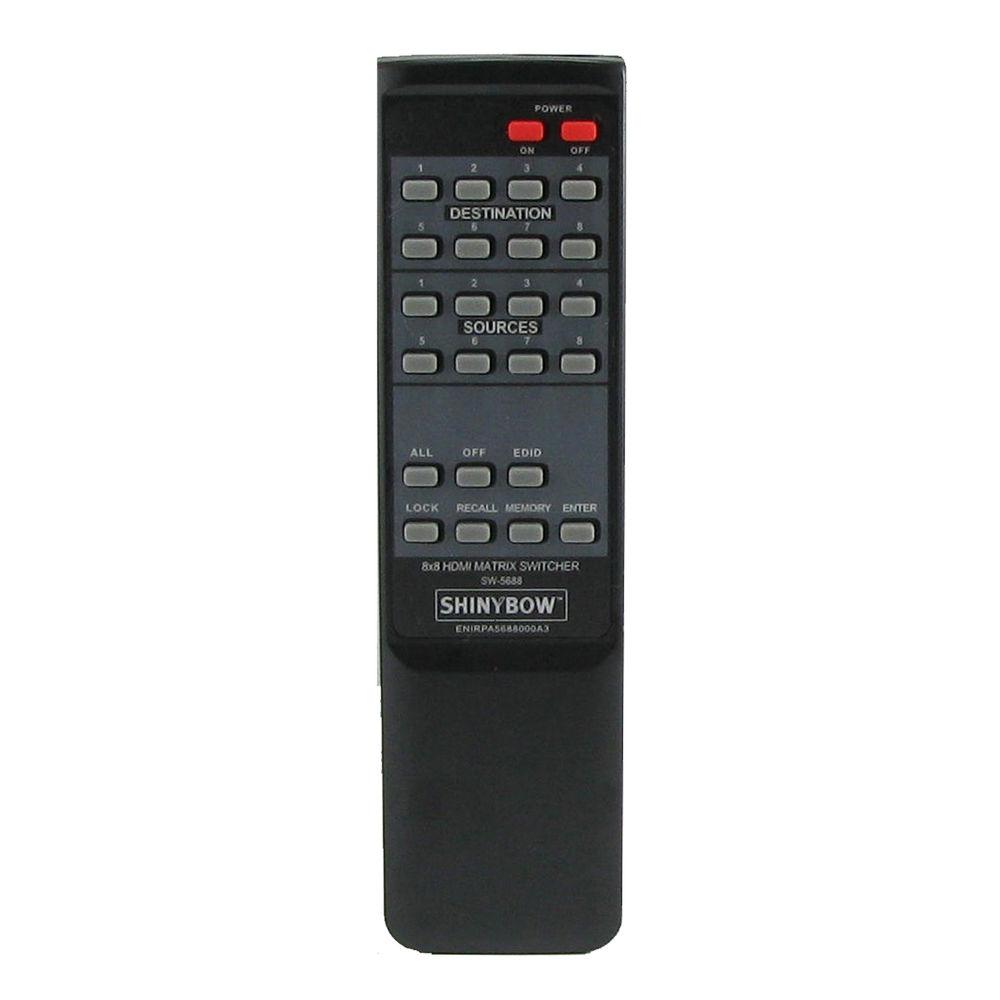

1 x IR remote (switch control)
8 x IR room remote (switch control)
1 x IR external port (switch control via 3.5 mm jack)
1 x RS-232 series interface (switch control)
1 x Ethernet series interface (switch control) | | Status Indicators | Input status LEDs indicate presence of a live signal | | Control Knobs | All
Off
Recall
Enter
Memory
Lock
EDID
Destination: 1-8
Source: 1-8 | | Infrared Frequency | 38 kHz | | Distance | IR: 984' / 300 m
HDBaseT: 328' / 100 m | | Connectors | HDMI type A SMD 19-pin, female | | Safety Approvals | CE, FCC, REACH | | Power Supply | 100 to 240 VAC, 50/60 Hz | | Power Consumption | 10 A maximum | | Operating Temperature | 32 to 100°F / 0 to 32°C | | Rack Mount | 2 RU high | | Dimensions | 19.0 x 9.9 x 3.5" / 48.2 x 25.0 x 8.8 cm | | Weight | 6.3 lb / 3.8 kg | | | | Package Weight | 20.25 lb | | Box Dimensions (LxWxH) | 20.8 x 15.6 x 8.5" |
