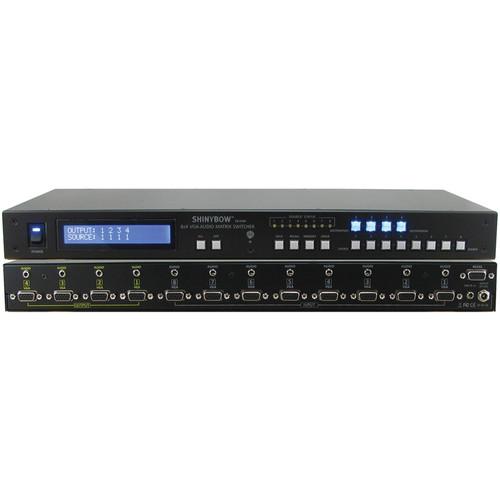

User Manual for Shinybow 8x4 VGA with Stereo Audio Matrix Routing Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow 8x4 VGA with Stereo Audio
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow 8x4 VGA with Stereo Audio contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow 8x4 VGA with Stereo Audio Matrix Routing Switcher allows you to route 8 VGA inputs to 4 VGA outputs in different configurations. Any input can be routed to any output, all outputs, or a combination of outputs. A corresponding 3.5mm mini stereo audio jack is available for each input and output. The switcher supports resolutions up to 1920 x 1200 HD (WUXGA).
Routing selections can be made via the front panel, an included remote control, or RS-232 serial control and monitored on the front panel LCD. An IR receiver supporting 984 ft of IR distance is included for remote control of the switcher from the room with the displays. A rack mount set is included for installing the switcher in a 1U 19" rack. - Key Features
-
- 8 VGA and 3.5mm stereo audio inputs
- 4 VGA and 3.5mm stereo audio outputs
- Routes any input to any output, all outputs, or a combination of outputs
- Supports resolutions up to 1920 x 1200 (WUXGA)
- 450MB bandwidth
- Includes IR receiver supporting up to 984 ft IR distance
- 1U rack mountable using an included rack mount set
- Controllable via the front panel, IR remote control, and RS-232
In the Box Shinybow 8x4 VGA with Stereo Audio Matrix Routing Switcher AC/DC Adapter IR Remote Control 1U Rack Mount Set SB-100 IR Receiver Set with Assembly Plug wceavqudadfybxvrcuvs SB-100C IR Receiver Cable - 6' RS-232 Cable RS-232 Driver CD (for Windows Systems) RS-232 Operation Manual (V2.0) User's Guide Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 8x4 VGA with Stereo Audio Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-4184LCM Specs | Input | 8x VGA on HD-15
8x 3.5 mm mini stereo audio jack | | Output | 4x VGA on HD-15
4x 3.5 mm mini stereo audio jack | | Bandwidth | 450 MHz (-3 dB), 200 mVp-p | | Supported Resolution | 1920 x 1200 (WUXGA) | | Crosstalk | -83 dB @ 5 MHz | | Serial Control | RS-232 interface via DRV on a PC | | Gain Control | 60 MHz 0.1 dB gain flatness | | Power Supply | DC 12 V / 2 A (consumption 1.2 A Max)
Use Universal Switch Type 50/60 Hz, 100-230 VAC | | Housing | Metal | | Safety Approvals | CE, FCC, VCCl, Erp, WEEE | | Dimensions | 19 x 7.9 x 1.7" (48 x 20 x 4 cm) | | Weight | Approx. 3 lb (Approx. 1.4 kg) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 20.5 x 11.5 x 4.0" |
