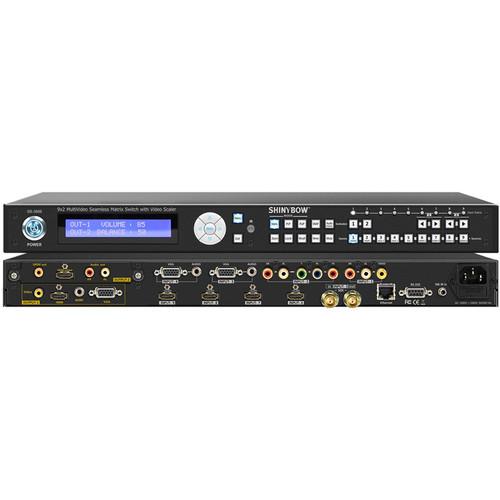

User Manual for Shinybow 9x2 Multi-Format Seamless Matrix Routing Switch with Scaler Click to enlarge the picture
Contents of the user manual for the Shinybow 9x2 Multi-Format Seamless Matrix Routing
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow 9x2 Multi-Format Seamless Matrix Routing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description Route and combine up to nine analog and digital video sources across two displays with the 9x2 Multi-Format Seamless Matrix Routing Switch with Scaler from Shinybow. Compatible with most popular analog and digital interfaces, this switch accepts video from a variety of current and legacy sources. It offers nine inputs, four of which are HDMI, two VGA, one SDI, one composite, and one component. On the output side, there is a fixed section and a customizable section. The fixed section offers HDMI, VGA, and NTSC/PAL composite outputs. The customizable section comes preinstalled with a standard HDMI, S/PDIF, and audio output module that can be replaced with a different module (available separately) for output options such as HDBaseT and HDBaseT PoH.
Besides its matrix capabilities, this switch gives you the freedom to combine multiple images on the same display in either Picture-in-Picture (PiP) or Picture-Outside-Picture (PoP) mode. The switch supports HDMI output resolutions up to 1080p, signal bandwidths of 165 MHz, and data rates up to 4.95 Gb/s with no signal degradation. Input resolutions can be scaled up to 1080p or down to 480p to match your displays. The switch can be controlled via the front panel buttons, or remotely via RS-232, TCP/IP, or the included IR controller. - Three matrixed PiP and PoP function modes
- Link speeds up to 4.95 Gb/s with link clock rate of 165 MHz
- Digital video TMDS formats for resolutions up to 1080p with 36-bit Deep Color
- Five-level zoom management
- Audio breakaway function to combine video from one source with audio from a different source
- Audio volume and balance control, levels 0 to 100
- Memory for up to nine matrix settings
- Mute function for HDMI audio output
- Supports SDI 1080p30 input to HDMI 1080p30 output
- Allows HDMI cable runs up to 98' at 1080p60
- Control function keys include EDID, resolution, TV video system, IP channel, coax channel, ENMOTOR channel, volume, balance audio control, switch system reset, zoom, recall, memory, audio breakaway, and HDMI mute
- Analog audio output with audio equalizer
In the Box Shinybow 9x2 Multi-Format Seamless Matrix Routing Switch with Scaler SW-3888 Master Wireless IR Remote Control 1U-440L Ear Mount Bracket (19") SB-100 IR Receiver Set with Assembly Plug czfsaetztyaabe SB-100C IR Receiver Cable - 6' RS-232 Cable (6.5') Set of HDMI Locking Post Replacement Screws Universal Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 9x2 Multi-Format Seamless Matrix Routing Switch with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3888 Specs | Functions | Matrix, PiP, and PoP | | HDMI Support | HDMI 1080p at 60 Hz, H36-bit Deep Color | | HDMI Compliance | HDMI 1.3 | | HDCP Compliance | HDCP 1.2 | | Video Bandwidth | Double Data Rates: 165 MHz
Total: 4.95 Gb/s | | Scaling | HD: 480i/480p/720p and up to 1080i/1080p
Supports SDI in/out 1080p30 | | Inputs | 1 x Composite video / stereo audio
1 x Component video / stereo audio
2 x VGA / stereo audio
1 x SDI
4 x HDMI | | Outputs | 1 x HDMI 1080p at 60 Hz
1 x VGA
1 x Composite video (NTSC / PAL / PAL-M / PAL-Nc)
1 x Stereo audio (AR/AL) with equalizer
External Output Module (Pre-Installed):
1 x HDMI
1 x S/PDIF
1 x Audio
Alternative modules with HDBaseT and HDBaseT PoH outputs available separately | | PIP | 5 x Zoom sizes | | Memory | 9 x Addresses
9 x Source selection buttons | | Mute Function | Mutes HDMI audio output | | Analog EQ Controls | Bypass, treble, surround, flat, classic, rock, pops, jazz, with 3D, with bass | | Control Options | Windows-based GUI via RS-232
16 x Select and Function buttons on front panel
IR remote control (included)
Ethernet
Third-party RS-232 control via ASCII | | Max. HDMI Cable Distance | 98' / 30 m at 1080p | | Infrared Frequency | 38 kHz | | Firmware Updates | Via RS-232 | | HDMI I/O Connectors | HDMI type A SMD 19-pin, female | | Operating Temperature | 32 - 100°F / 0 - 32°C | | Rack Mount | 1 RU rackmount bracket included | | Power Supply | 100-240 VAC, 50/60 Hz from universal power supply (included) | | Safety Approvals | CE, FCC, REACH | | Dimensions | 17.32 x 9.84 x 1.73" / 44.0 x 25.0 x 4.4 cm | | Weight | 5.19 lb / 2.36 kg |
