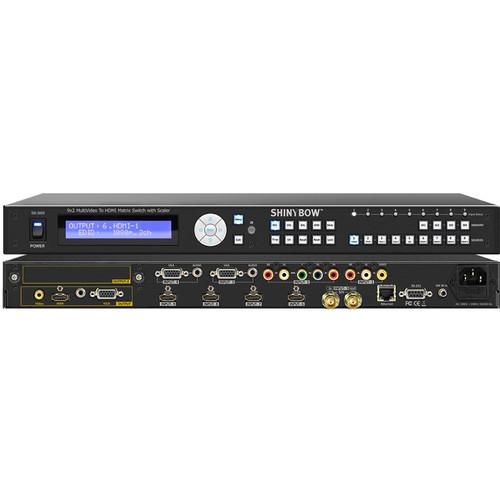

Product description Present video from almost any source with the 9x2 Multi-Format Video Switcher with Scaler from Shinybow. Compatible with most popular analog and digital interfaces, this switcher lets you toggle between current and legacy video equipment while remaining connected to the same display. The switcher offers nine inputs, four of which are HDMI, two VGA, one SDI, one composite, and one component. Two mirrored outputs are supported via the unit's HDMI, VGA, and composite video output connectors. An empty second channel output slot enables you to add an extra module (available separately) for output options such as HDBaseT and HDBaseT PoH.
This switcher is HDMI 1.3 and HDCP 1.2 compliant and supports total bandwidths of up to 4.95 Gb/s . It scales the incoming video up to 1080p and down to 480p to match your display. Sources can be switched via the front panel or remotely via RS-232, TCP/IP, Ethernet, or the included IR controller. - Link speeds up to 4.95 Gb/s with link clock rate of 165 MHz
- Digital video TMDS formats for resolutions up to 1080p with 36-bit Deep Color
- Supports audio volume and balance control, levels 0 to 100
- Mute function for HDMI audio output
- Memory for up to four switcher settings
- Scales resolution up to 1080p and down to 480p
- Allows HDMI cable runs up to 98' at 1080p 60 Hz
- Windows-based GUI via RS-232
- Supports third-party RS-232 control via ASCII
In the Box Shinybow 9x2 Multi-Format to HDMI/VGA/Composite Video Switcher with Scaler SW-3855 Master Wireless IR Remote Control 19" Rackmount Bracket SB-100 IR Receiver Set with Assembly Plug czfsaetztyaabe SB-201R IR Extender Receiver Cable (6.5') RS-232 Cable (6.5') Set of HDMI Locking Post Replacement Screws Universal Power Cord (6') Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow 9x2 Multi-Format to HDMI VGA Composite Video Switcher with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3855 Specs | Functions | Selector, switch, and scaler | | Video/Audio Inputs | Composite:
1 x RCA female, video
1 x 2RCA female, stereo audio (AR/AL)
Component:
1 x 3RCA female, video (YPBPR)
1 x 2RCA female, stereo audio (AR/AL)
VGA
2 x 15-pin Sub-D female, video (RGBHV)
2 x stereo jacks, audio (AR/AL)
SDI
1 x BNC female, SDI input
1 x BNC female, SDI loop-out
HDMI:
4x HDMI Type A SMD 19-pin, female | | Video/Audio Outputs | 1 x 15-pin Sub-D female, VGA video (RGBHV)
1 x HDMI Type A SMD 19-pin female, digital video/audio
1 x RCA female, composite video
1 x 3.5 mm female phone jack, stereo audio (AR/AL)
1 x empty slot for modular output card (card available separately) | | HDMI Support | HDMI 1.3 compliant
1080p at 60 Hz, H36-bit Deep Color | | HDCP Support | HDCP 1.2 compliant | | Video Bandwidth | Double Data Rates: 165 MHz
Total: 4.95 Gb/s | | Scaler | HD: 480i/480p/720p and up to 1080i/p | | Settings Memory | 4 x addresses, available via M1, M2, M3, M4 select buttons | | Mute Function | Mutes HDMI audio output | | Audio Equalizer Presets | Bypass, treble, surround, flat, classic, rock, pops, jazz, with 3D, with bass | | Switch Controls | Front panel push buttons, IR remote, RS-232, and Ethernet | | Max. HDMI Cable Distance | 98' / 30 m at 1080p | | Infrared Frequency | 38 kHz | | Firmware Updates | Via RS-232 | | Operating Temperature | 32 to 100°F / 0 to 32°C | | Rackmount | 19" / 48.3 cm 1 RU rackmount bracket (included) | | Power Cord | 6' / 1.8 m 18 AWG universal power cord, NEMA 5-15P to IEC-320-C13 (included) | | Power Supply | 100-240 VAC, 50/60 Hz, universal | | Safety Approvals | CE, FCC, REACH | | Dimensions | 18.98 x 11.81 x 1.73" / 482 x 300 x 44 mm | | Weight | 4.53 lb / 2.06 kg, unit only | | | | Package Weight | 11.66 lb | | Box Dimensions (LxWxH) | 21.45 x 12.7 x 12.7" |
