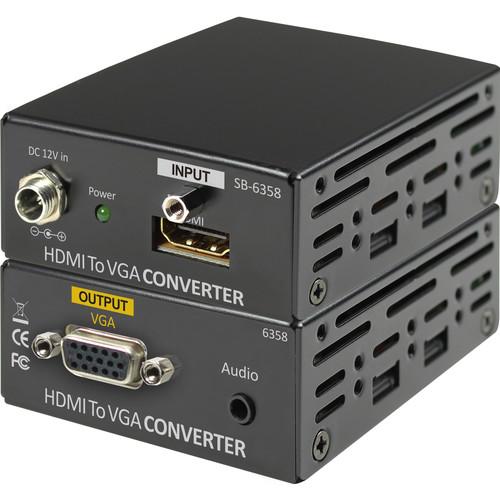

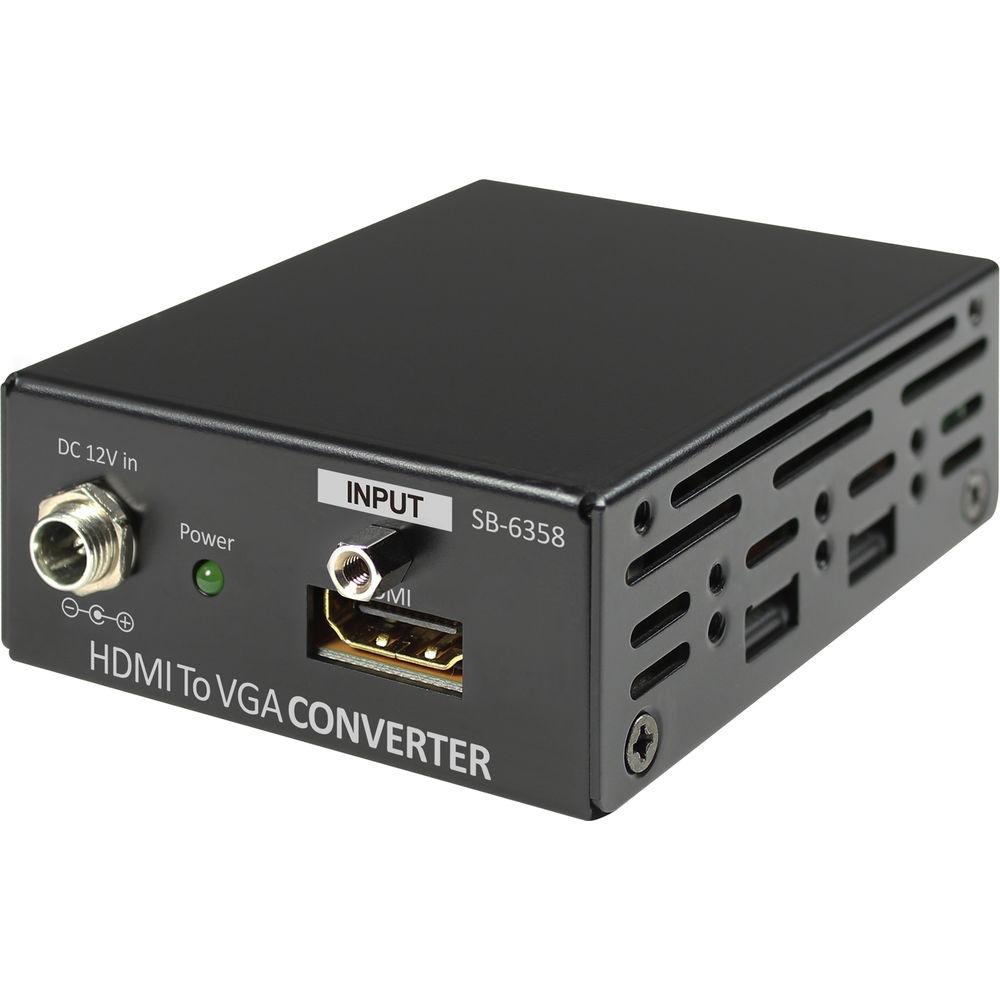

Product description The HDMI to VGA/Audio Converter from Shinybow allows you to connect an HDMI video source and send it to a VGA projector or monitor. The converter offers plug-and-play operation and is HDMI 1.3a and HDCP 1.2 compliant. Supporting resolutions up to 1920 x 1200, it pairs well with high-definition HDTVs, plasma displays, and monitors.

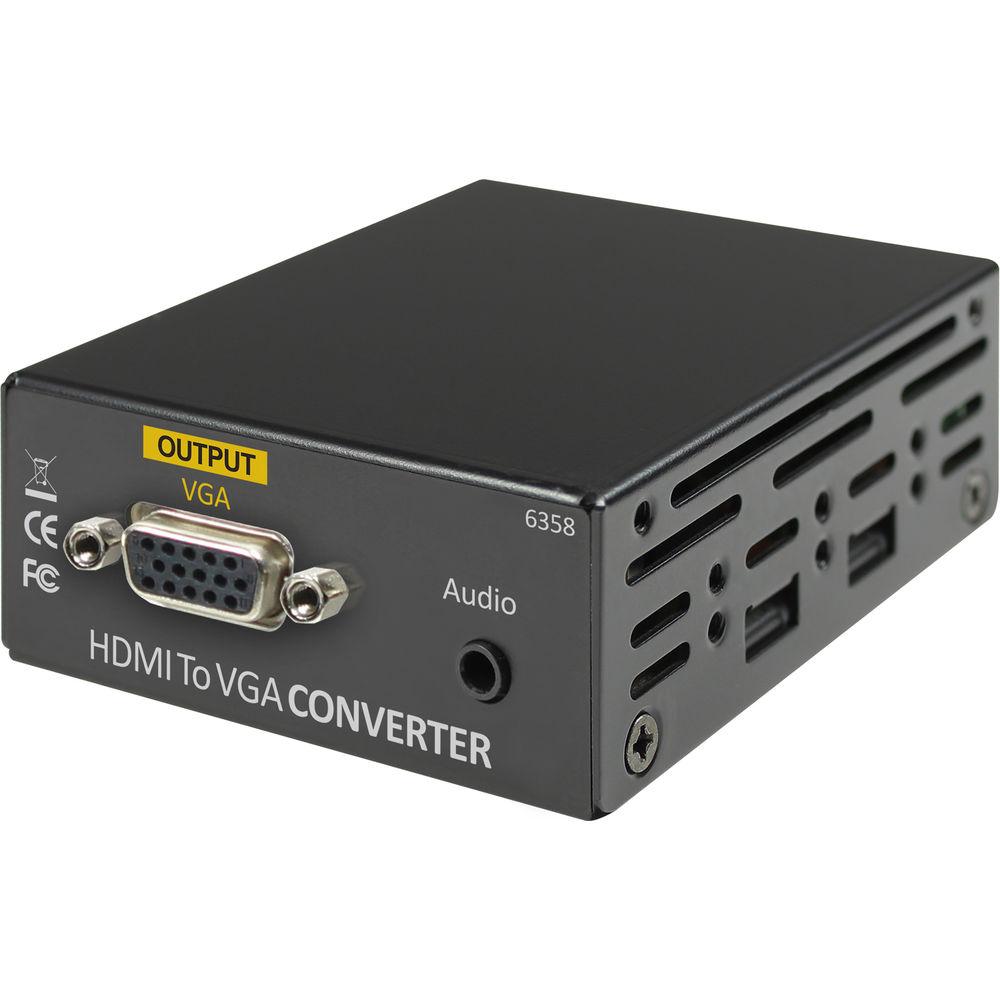

Featuring a separate audio output, this converter allows you to de-embed the audio from your HDMI input source and send it independently to a separate audio input, such as a VGA display or separate speakers. - Converts HDMI digital video to analog VGA video, de-embedding the audio signal
- Supports resolutions up to 1920 x 1200
- Runs on 100 to 240 VAC from included power adapter
In the Box Shinybow HDMI to VGA/Audio Converter Universal AC Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow HDMI to VGA Audio Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-6358 Specs | Input | 1 x HDMI | | Outputs | 1 x VGA (15-pin D-sub)
1 x 3.5 mm jack | | Resolutions Supported | HDMI PC Type Input to VGA Monitor:
640 x 350 at 85 Hz
640 x 480 at 60/67/75/85 Hz
720 x 400 at 85 Hz
800 x 600 at 56/60/72/75/85 Hz
832 x 624 at 75 Hz
848 x 480 at 60 Hz
1024 x 768 at 60/70/75/85 Hz
1152 x 864 at 75 Hz
1152 x 870 at 75 Hz
1280 x 768 at 60/75/85 Hz
1280 x 960 at 60/85 Hz
1280 x 1024 at 60/75/85 Hz
1360 x 768 at 60 Hz
1400 x 1050 at 60 Hz
1600 x 1200 at 60/65 Hz
1680 x 1050 at 60 Hz
1920 x 1080 at 60 Hz
1920 x 1200 at 60 Hz
HDMI HDTV Type Input to VGA HDTV Monitor:
720 x 480i at 29.97/30 Hz
720 x 576i at 59.94/60 Hz
720 x 576p at 50 Hz
1280 x 720p at 50/59.94/60 Hz
1920 x 1080i at 25/29.97/30 Hz
1920 x 1080p at 50/59.94/60 Hz | | Power Supply | 12 VDC, universal type, 50/60 Hz, 100 to 240 VAC | | Approvals | CE, FCC | | Dimensions | 3.54 x 2.36 x 1.0" / 90 x 60 x 26 mm |
