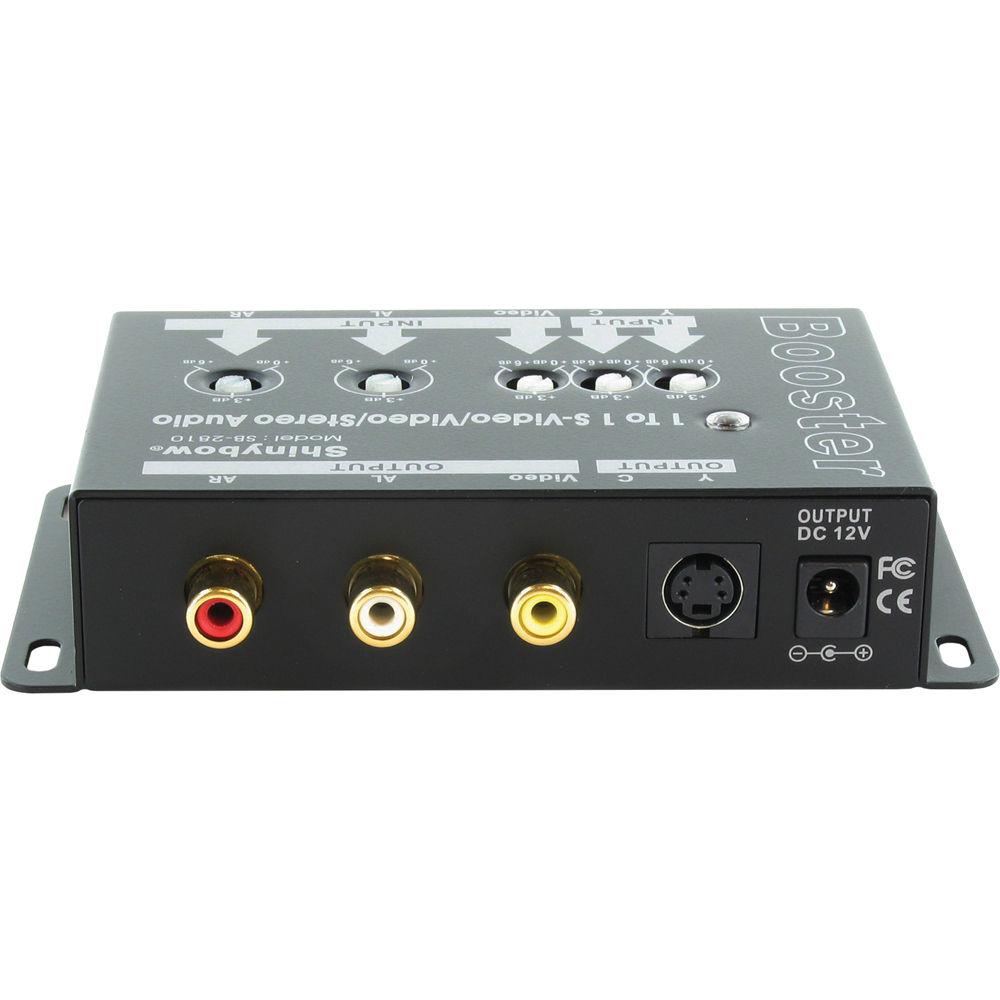

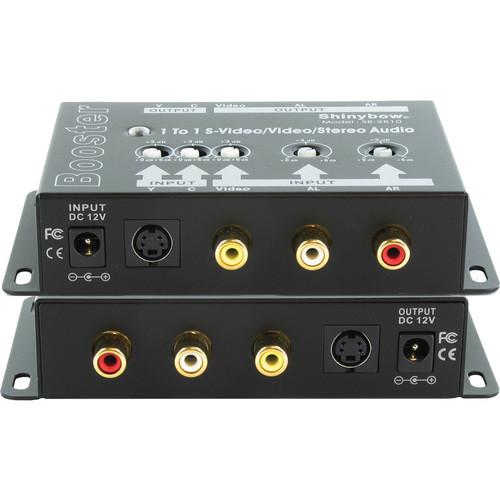

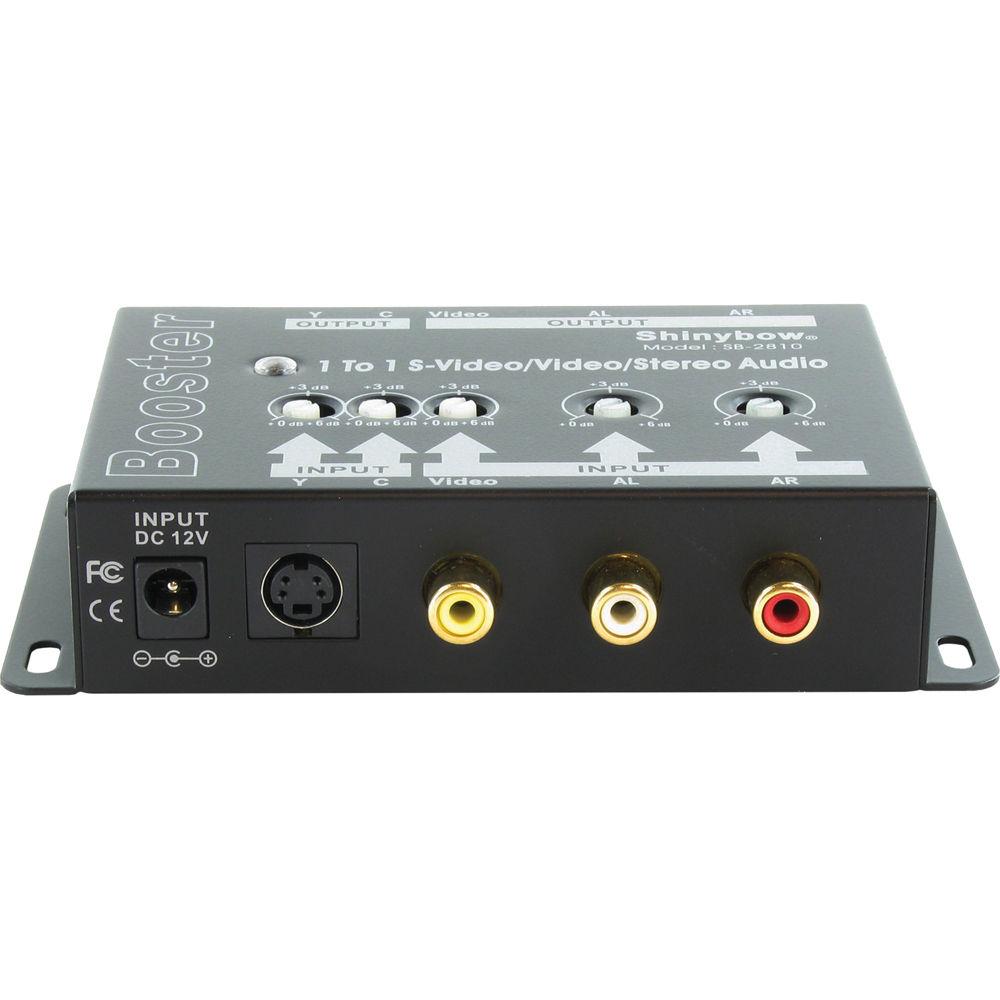

Product description Shinybow's SB-2810 S-Video & Composite Video and Stereo Audio Amplifier distributes video signals to up to 150 ft away. The signals can be amplified via an adjustable control from +0db to +6db. Both the S-Video and Composite signals can be distributed simultaneously. S-Video carries only video and can run 150 ft, and Composite can carry video and stereo audio for up to 100 ft. An example use of the device would be sending a signal from a high resolution video source to a display monitor several rooms away. In the Box Shinybow SB-2810 S-Video & Composite Video and Stereo Audio Amplifier AC/DC Adapter (12 VDC, 500mA) Surface Mount Taps User's Guide 3-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-2810 S-Video & Composite Video and Stereo Audio Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-2810 Specs | Input | 1x S-Video (Y/C) at 1 Vpp/75 ohm
1x Composite RCA Video at 1 Vpp/75 ohm
1x Stereo Audio (AR/AL) signals | | Output | 1x S-Video (Y/C) at 1 Vpp/75 ohm
1x Composite RCA Video at 1 Vpp/75 ohm
1x Stereo Audio (AR/AL) signals | | Video Bandwidth | 440 MHz, G=+2, 320 MHz, G=+10 | | Distance | Distributes S-Video signal up to 150 ft (45 m), Composite up to 100 ft (30 m) | | Setting Time | 10ns to 0.1%, 2V Step, G =+2 | | Low Distortion SFDR | Third Order Intercept (3IP): -66 dBc @ 20 MHz
Second Harmonic: -75 dBc @ 20 MHz
Third Harmonic: 26 dBm @ 70 MHz, G=+10 | | Gain Flatness | 0.1 dB to 75 MHz | | Differential Gain Error | 0.01%, Rl=150% | | Differential Phase Error | 0.01%, Rl=150% | | Power | DC 12 volts, @ 500mA | | Power Consumption | 100mA maximum | | Dimensions | 4 x 2.8 x 1" (10 x 7 x 2.5 cm) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 9.4 x 7.1 x 1.6" |
