User Manual for Shinybow SB-2820 1 x 1 Component Video and Audio Booster Click to enlarge the picture
Contents of the user manual for the Shinybow SB-2820 1 x 1 Component
- Product category: Video Extenders & Repeaters Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Video Extenders & Repeaters
 |
User manual for the Shinybow SB-2820 1 x 1 Component contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

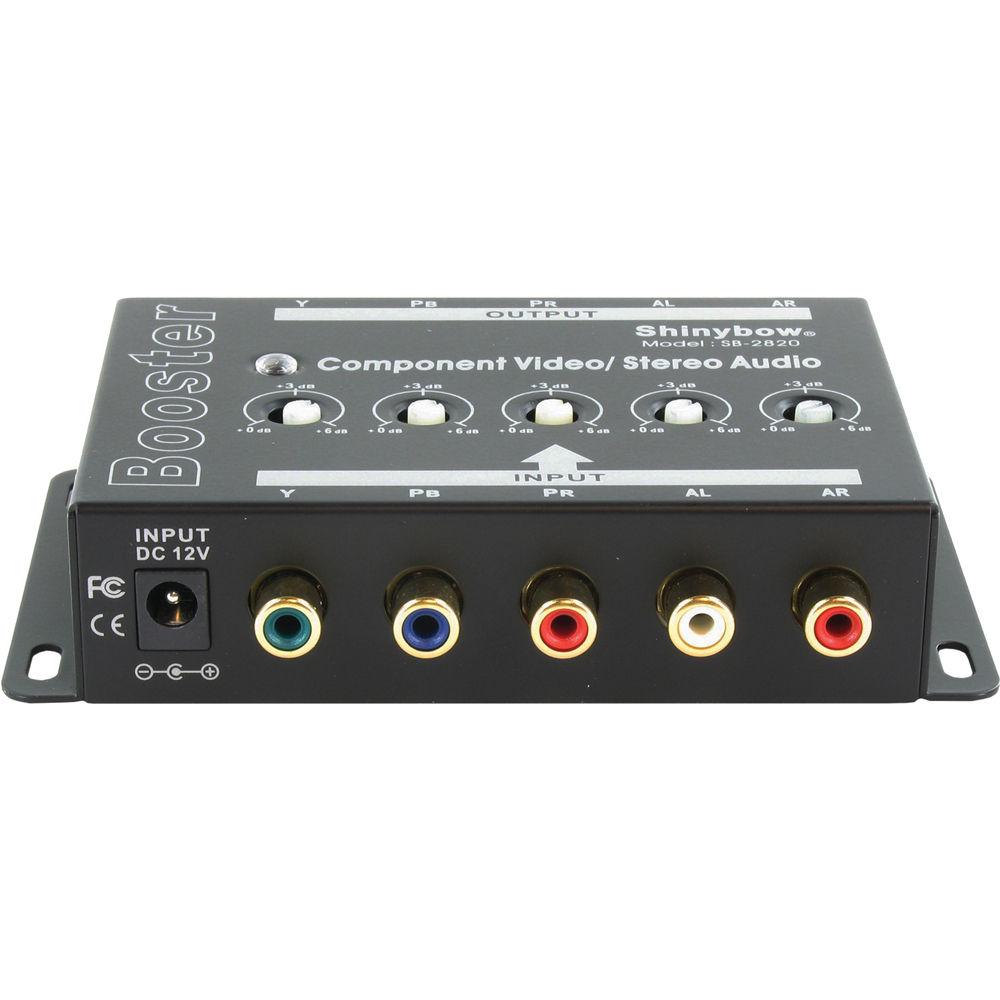

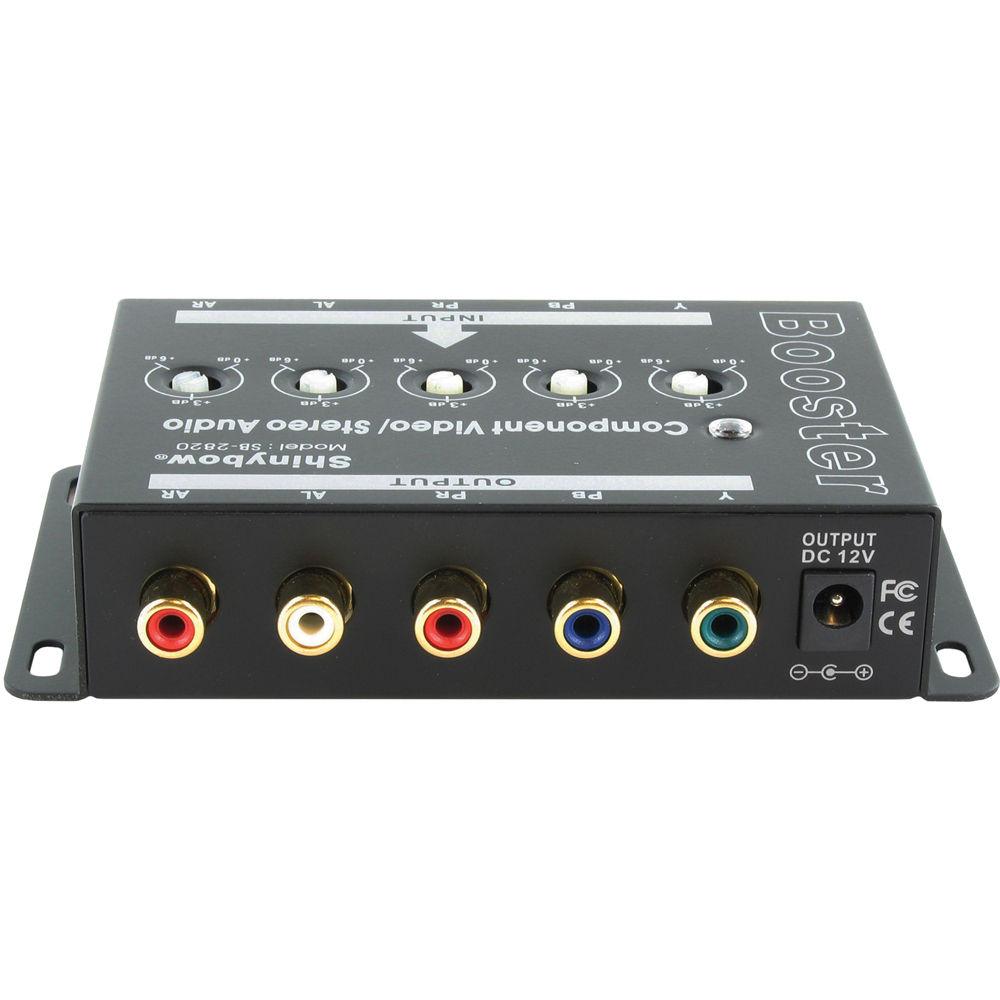

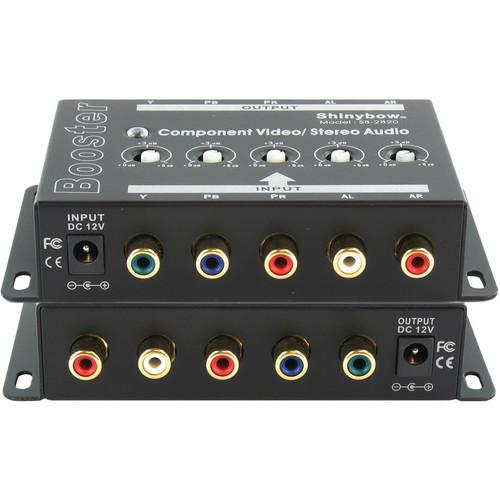

Product description The Shinybow SB-2820 1 x 1 Component Video and Audio Booster (RCA) is designed to drive signals over a long distance. It provides signal amplification from 0 to 6 dB via an adjustable control. This is useful for distributing signals from any video source, including a high-resolution video source to a display monitor. You can use the S-Video and composite video simultaneously. Video signals can be distributed up to more than 300 to 1,000’ (91.44 to 304.8 m) away. It is ideal for classrooms, trainings, conference halls, and retail outlets. - Supports 1 to 1 component video and audio
- Adjustable gain control separate for component video and audio
- Surface mount tabs provided
In the Box Shinybow SB-2820 1 x 1 Component Video and Audio Booster (RCA) User Guide AC/DC Adapter (12 VDC, 500 mA) 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-2820 1 x 1 Component Video and Audio Booster in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-2820 Specs | Input | Component video (YPbPr or YCbCr or RGB) 1 Vpp 75 Ω and stereo audio (AR / AL) signals | | Output | Component video (YPbPr or YCbCr or RGB) 1 Vpp 75 Ω and stereo audio (AR / AL) signals | | Video Bandwidth | 440 MHz, G= 2, 320 MHz, G = 10 | | Setting Time | 10 ns to 0.1%, 2 V step, G = 2 | | Gain Flatness | 0.1 dB to 75 MHz | | Differential Gain Error | 0.01%, Rl = 150% | | Differential Phase Error | 0.01%, Rl = 150% | | Power | Consumed: 250 mA Maximum | | Power Source | 12 VDC @ 500 mA | | Size | 4.09 x 2.83 x 1" (104 x 72 x 25 mm) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.5 x 7.2 x 1.5" |
