User Manual for Shinybow SB-3690A MultiVideo Digital Converter & Scaler Click to enlarge the picture
Contents of the user manual for the Shinybow SB-3690A MultiVideo Digital Converter &
- Product category: Signal Converters Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Signal Converters
|
User manual for the Shinybow SB-3690A MultiVideo Digital Converter & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

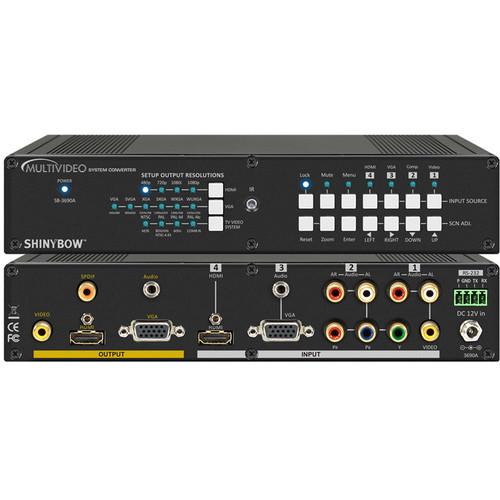

Product description The MultiVideo Digital Converter & Scaler from Shinybow allows a variety of digital and analog video sources to interface with a variety of digital and analog displays. On the input side, the converter supports composite video with stereo audio, component video with stereo audio, VGA with stereo audio, and HDMI signals. On the output side, there are HDMI, composite video, VGA, stereo audio, and SPDIF digital audio ports, all of which are available simultaneously.
This digital converter supports HDMI 3D 1.3a format and is HDCP 2.0 compliant. It auto-detects NTSC, PAL, and SECAM video standards and converts the incoming composite video to a high-definition RGB digital signal to match your display. Full HDTV resolution data rates are supported, enabling 480i/p, 576i/p, 720p, and 1080i/p 60 Hz formats, 1920 x 1200 DVI resolution, and 1080p at 60 Hz HDMI resolution. With these capabilities, this converter is well suited for use with high-definition 3DTV, HDTV, and plasma displays. Input sources and output resolutions can be selected via the front panel buttons, RS-232 commands, or the included IR remote control. - Automatic scanning of input/output status
- Runs on 100 to 240 VAC from included power adapter
- Wall mountable via included bracket
In the Box Shinybow SB-3690A MultiVideo Digital Converter & Scaler SW-3690A Master Wireless IR Remote Control Wall Mount Bracket Set of HDMI Locking Post Replacement Screws Universal AC Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3690A MultiVideo Digital Converter & Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3690A Specs | Chassis Material | Metal | | Video/Audio Inputs | Composite:
1 x RCA female, video
1 x 2RCA female, audio (AR/AL)
Component:
1 x 3RCA female, video (YPBPR)
1 x 2RCA female, audio (AR/AL)
VGA:
1 x 15-pin Sub-D female, video (RGBHV)
1 x stereo jack, audio (AR/AL)
HDMI:
1 x HDMI, female | | Video/Audio Outputs | 1 x 15-pin Sub-D female, VGA video (RGBHV)
1 x HDMI female, digital video/audio
1 x RCA female, composite video
1 x 3.5 mm phone jack, stereo audio (AR/AL)
1 x RCA female, SPDIF audio | | Resolution (NTSC/PAL) | Input/Output: NTSC-M (3.58 MHz) / NTSC-J (4.43 MHz) / PAL (4.433619 MHz) / PAL-M (3.575611 MHz) / PAL-N (3.582056 MHz) / PAL-60, 0.5 to 2 V p-p, 75 Ohms | | VGA Resolution | Input/Output: VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768), WUXGA (up to 1920 x 1200) | | Component Video | Input up to 1080i at 60 Hz (1920 x 1080i) | | Conversion Modes | PAL/NTSC Line Conversion: Composite video 525/625 lines
PAL/NTSC Field Conversion: Composite video 50/60 Hz fields | | Scaler | Output: Up to HDMI 1080p 60 Hz and VGA (WUXGA) 1920 x 1200 | | Max. HDMI Cable Distance | 49' / 15 m, depending on cable quality | | Serial Ports | 1 x RS-232 | | Infrared Frequency | 38 kHz | | HDMI Support | HDMI 1.3a 3D (225 MB), HDMI V1.3 transmitter and receiver | | DVI Support | DVI 2.0 | | HDCP Support | HDCP 2.0 | | Control Buttons | Menu, mute, enter, up, down, right, left, reset, lock | | User Interface Control | Front panel push buttons
IR wireless remote control
RS-232 interface control driver for Windows 95/98/2000/XP | | On Screen Display | Controls: Color, resolution, and input source (among others) | | Power Supply | Input: 100 to 240 VAC, 50/60 Hz
Output: 12 VDC, 1.25 A | | Approvals | CE, FCC, RoHS | | Temperature | 32-100°F / 0-32°C | | Dimensions | 8.66 x 5.06 x 1.73" / 220 x 128 x 44 mm | | Weight | 3.09 lb / 1.4 kg |
