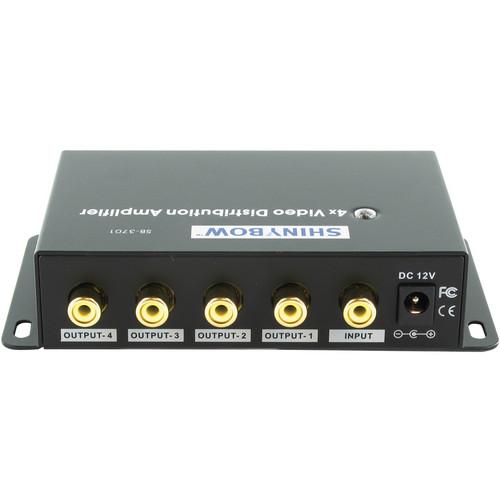

Product description Use the Shinybow SB-3701RCA 1 x 4 Distribution Amplifier to distribute composite video to multiple destinations via RCA cables. The single input on this compact unit can be routed to all four outputs, eliminating the need to repatch cables among different display devices.Featuring a video bandwidth greater than 320 MHz, this distributor is designed with four outputs and one input on its front panel. For a more permanent and secure installation, mounting tabs are provided on both sides of the unit's metal housing. Features - Amplifier distributes one source to up to four outputs via RCA connectors
- Robust video bandwidth is greater than 320 MHz
- Metal wall-mount housing has integrated mounting tabs
In the Box Shinybow SB-3701RCA 1 x 4 Composite Video Distribution Amplifier (RCA) AC Adapter (12V, 420mAh) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3701RCA 1 x 4 Composite Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3701RCA Specs | Amplifier Type | 1-input to 4-output composite video distribution amplifier | | Inputs/Outputs | 1 x Input, 750 Ohms, 1 Vpp
4 x Outputs, 750 Ohms, 1 Vpp | | Connectors | RCA | | Video Signal Format | Composite video | | Video Bandwidth | >320 MHz | | Slew Rate | 5500 V/ms, 4 V step | | Video Distortion | -66 dBc @ 20 MHz
-75 dBc @ 20 MHz | | Video Specifications | Gain Flatness: 0.1 dB to 75 MHz
Differential Gain Error: 0.01%, RL=150%
Differential Phase Error: 0.01%, RL=150% | | Maximum Power Consumption | 500 mAh | | Power Voltage Input | 12 VDC @ 420 mAh | | Dimensions (W x H x D) | 4.3 x 2.8 x 1" (110 x 70 x 25 mm) | | Weight | 11.3 oz (0.32 kg) | | | | Package Weight | 1.27 lb | | Box Dimensions (LxWxH) | 9.55 x 7.2 x 1.45" |
