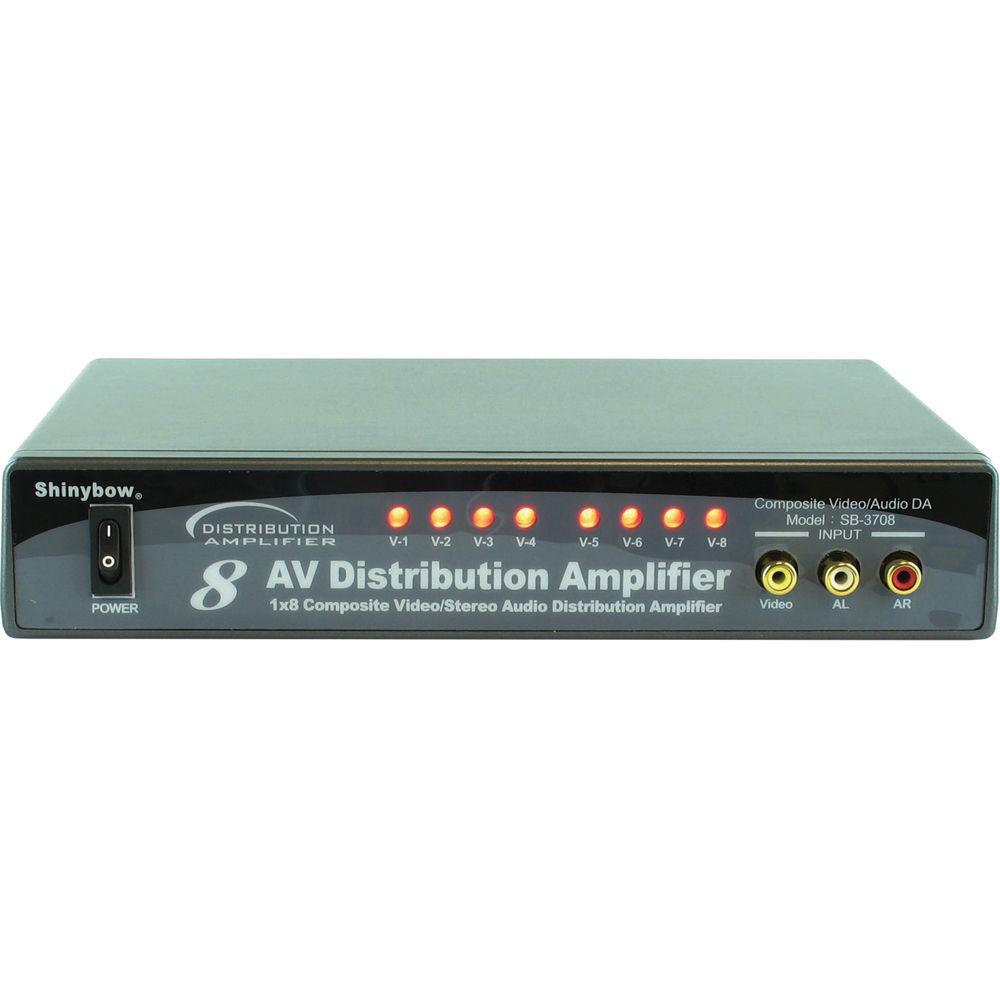

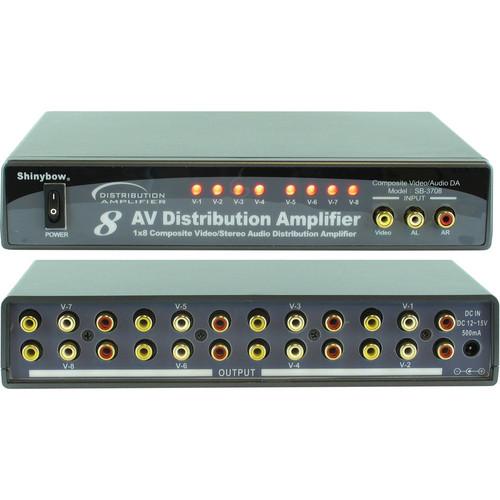

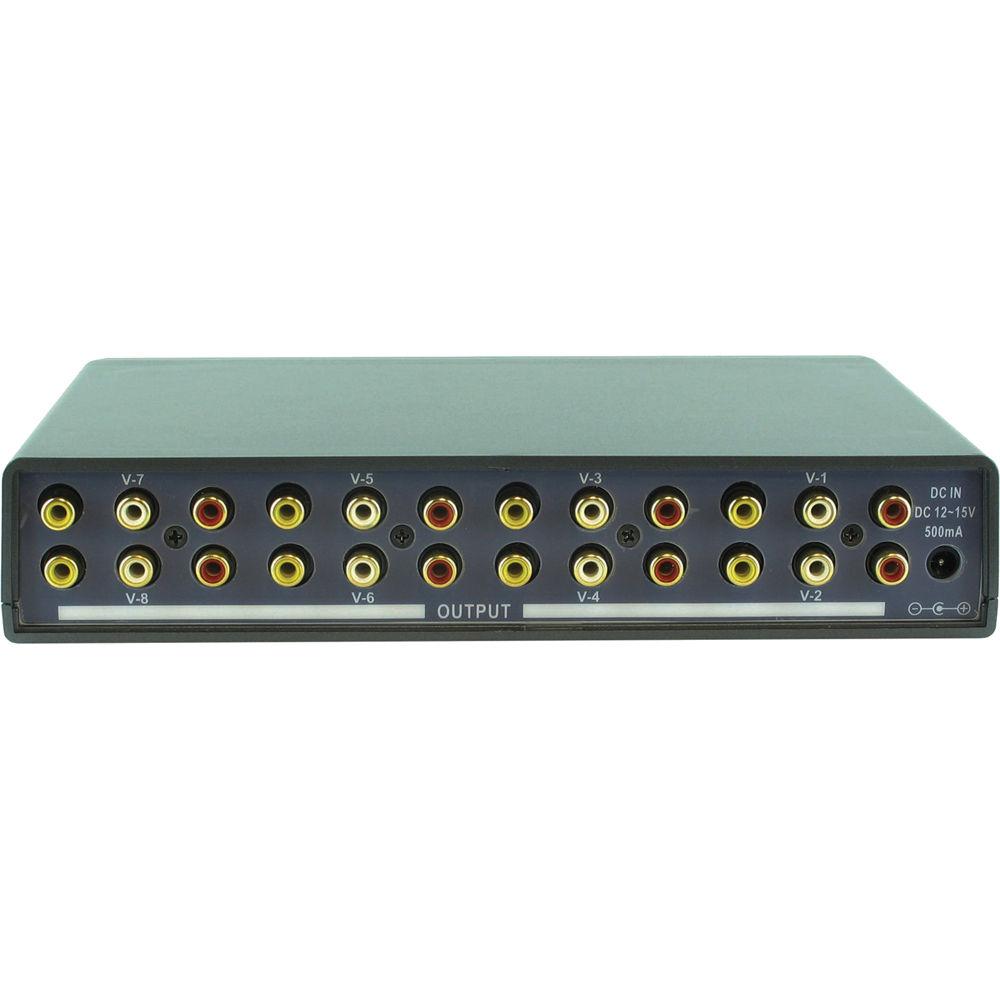

Product description The Shinybow SB-3708 1 x 8 Composite Video Audio Distribution Amplifier supports a video bandwidth of 440 MHz. It has 1 individual input with 8 individual outputs. As it is a distributor, 1 input may be distributed to any 8 outputs at the same time. It eliminates the need to constantly move around composite video and stereo audio input and output cables.
This distribution amplifier is ideally suited for distributing AV signals from VCRs, camcorders, video game console, video CDs, DVDs, satellite receivers, CATV set-top box devices in addition to HD (High-Definition) TVs with 480p, 720p 1080i, and 1080p resolutions, or HD display monitor applications. - Support 1 x 8 composite video-stereo audio distribution amplifier
- Distributing composite video and stereo audio (AR / AL) signals
- Supports HDTV with for 480i, 480p, 576p, 720p, 1080i, and 1080p resolutions
- Video Bandwidth: 440 MHz (-3 dB), 200 mVpp
- Audio Frequency Respond: 20 Hz to 20 KHz
- Application source devices from VCRs, camcorders, video game console, video CDs, DVDs, satellite receivers, CATV set-top box
- Suitable for distributing to HD high resolution video player devices and HDTV, TV, and HD monitor displays
- Power switch control via selection pushbuttons with LED readout
- Enclosure Type: Supports 19" (48.26 cm) ear
- Supports lower power consumed full load under 450 mA
- Power supply offer a universal type 100 to 230 VAC switch
In the Box Shinybow SB-3708 1 x 8 Composite Video Audio Distribution Amplifier 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3708 1 x 8 Composite Video Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3708 Specs | Distribution | Type: 1 input to 8 outputs Distribution Amplifier | | Signals | Type: Composite Video via 1x RCA Female Connector
Stereo Audio (AR/AL) via 2x RCA Female Connectors | | Video Bandwidth | 440 MHz, (-3 dB) 2 Vpp | | Audio Bandwidth | 60 MHz (-3 dB) (Audio-Right = 60 MHz, Audio-Left = 60 MHz) | | Audio Frequency Response | 20 Hz to 20 KHz | | Crosstalk | All Hostile: -56 dB @ 5 MHz, -45 dB @ 50 MHz | | Scan Rates Accepted | 50 or 60 Hz | | Slew Rate | 1,000 V/us, fixed internal gain of 2 | | Controls | Power switch selection via pushbuttons with LED readout | | Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) | | Dimensions (W x D x H) | 9.37 x 5.95 x 1.73" (304 x 150 x 44 mm) | | Weight | 34.56 oz (980 g) with metal case | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.181 x 10.0 x 2.913" |
