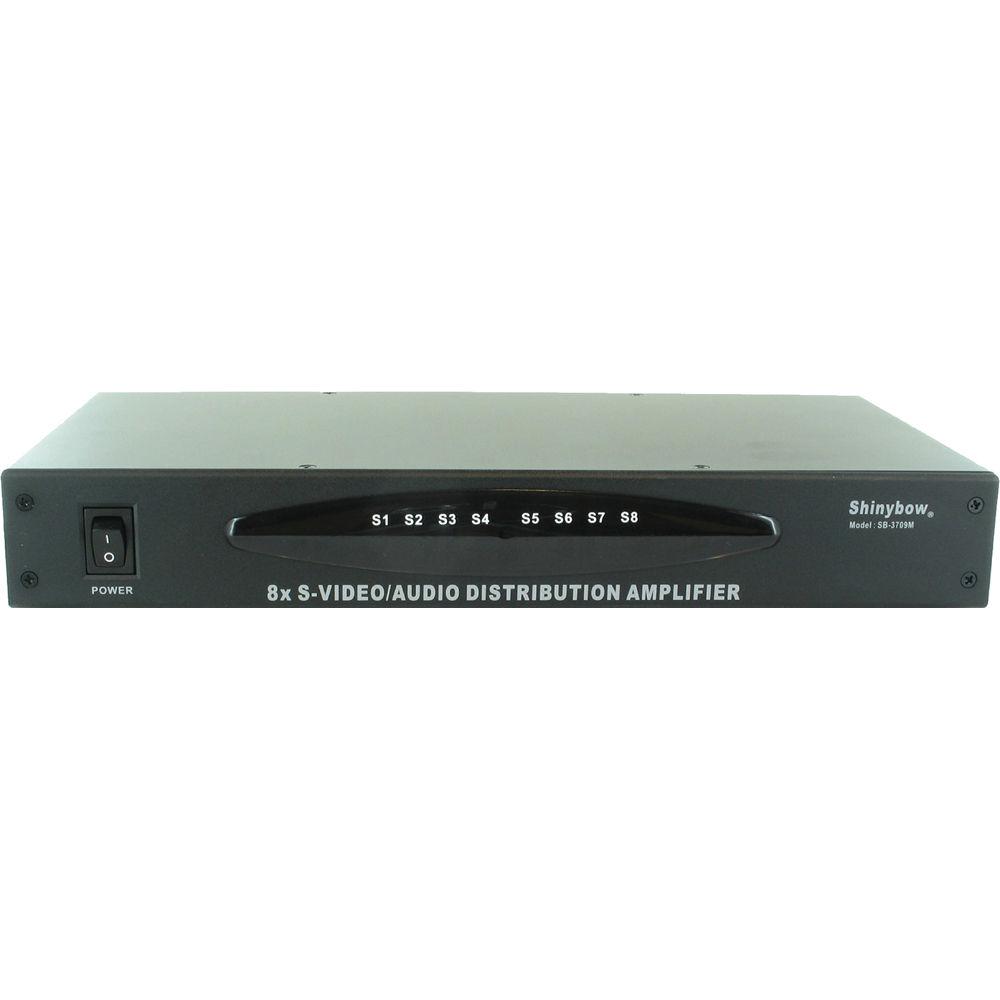

User Manual for Shinybow SB-3709MRM 1 x 8 S-Video & Audio Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Shinybow SB-3709MRM 1 x 8 S-Video
- Product category: Distribution Amplifiers (DA's) Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Distribution Amplifiers (DA's)
 |
User manual for the Shinybow SB-3709MRM 1 x 8 S-Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

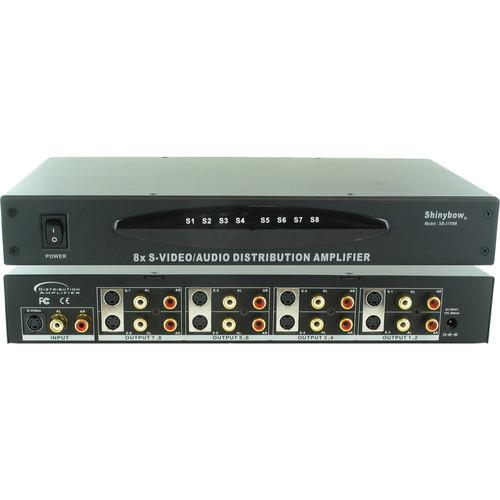

Product description The Shinybow SB-3709MRM 1 x 8 S-Video & Audio Distribution Amplifier amplifies and distributes a single S-Video input over 8 outputs. It has a video bandwidth of 440 MHz, and completely eliminates the need to constantly move around S-video and stereo audio input and output cables.
This distribution amplifier is ideally suited for distributing AV signals from VCRs, camcorders, video game consoles, video CDs, DVDs, satellite receivers, CATV set-top box devices to HD (High-Definition) LCD TVs with 480p, 720p 1080i, and 1080p resolutions, or HD plasma monitor applications. This amplifier comes with a rack ear pair (1U-300L) and 19” (48.26 cm) MRM 1 RU rack mount. - Amplifies and distributes a single S-Video and Stereo Audio signal over eight outputs
- Supports HDTV with 480i, 480p, 576p, 720p, 1080i, and 1080p resolutions
- S-Video Bandwidth: 440 MHz (-3 dB), 200 mVpp
- Can be used with VCRs, camcorders, video game console, video CDs, DVDs, satellite receivers, and CATV set-top boxes
- Suitable for distributing signals to HD high-resolution video players and HDTV, LCD TV, plasma TV, HD displays
- Power switch control via selection pushbuttons with LED readout
- Enclosure Type: Supports 1U-300L rack ear pair & 1 RU rack mount panel
- Supports low power consumption (full load under 480 mA)
- Universal power supply with a 100 to 230 VAC switch
In the Box Shinybow SB-3709MRM 1 x 8 S-Video & Audio Distribution Amplifier Rack Mount Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3709MRM 1 x 8 S-Video & Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

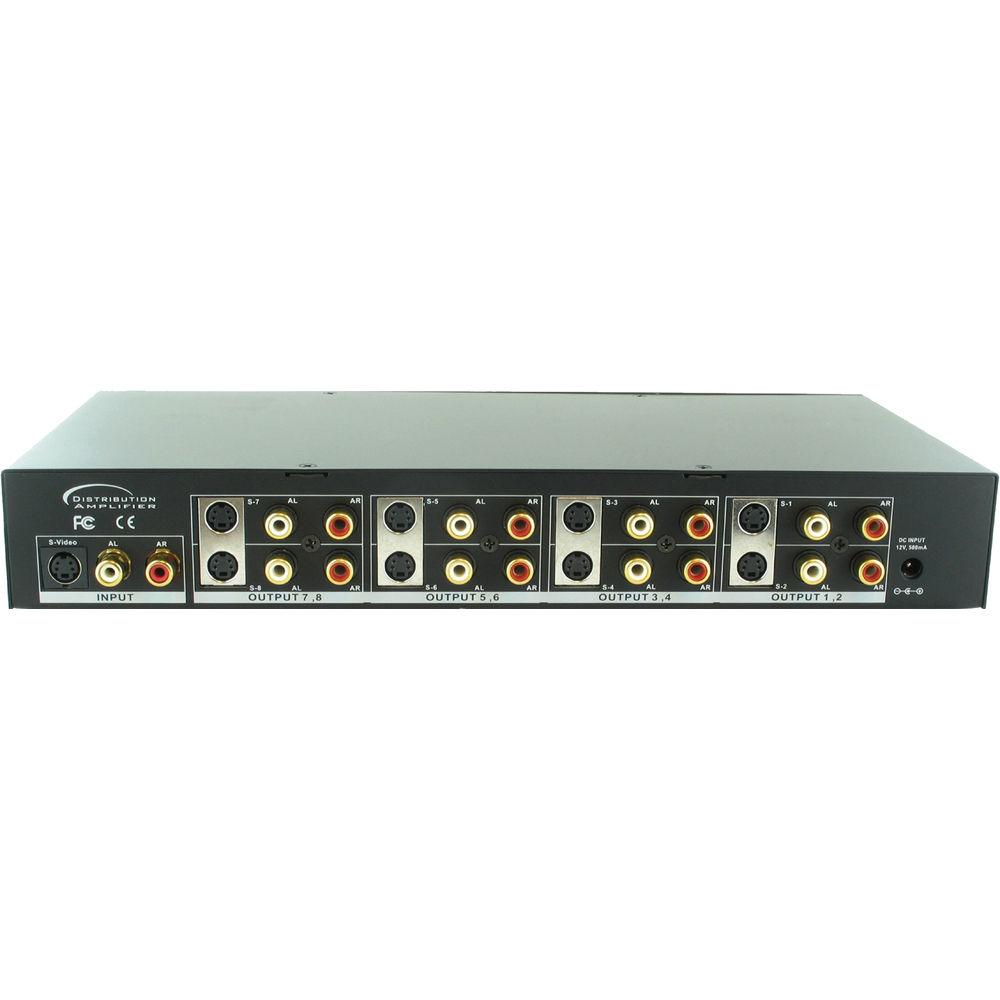

Technical parametersShinybow SB-3709M Specs | Switcher | Type: 1 input to 8 outputs | | Signal | S-Video (Y / C) via 1x RCA Female Connector
Stereo Audio (AR / AL) via 2x RCA Female Connector | | Video Bandwidth | S-Video: 440 MHz, (-3 dB) 2 Vpp | | Audio Bandwidth | 60 MHz (-3 dB) (Audio-Right = 60 MHz, Audio-Lift = 60 MHz) | | Audio Frequency Response | 20 to 20,000 Hz | | Crosstalk | All Hostile: -56 dB @ 5 MHz, -45 dB @ 50 MHz | | Scan Rates Accepted | 50 or 60 Hz | | Slew Rate | 1000 V/us, fixed internal gain of 2 | | Controls | Power switch selection via pushbuttons with LED readout | | Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) | | Power Voltage Input | 12 VDC @ 0.66 A | | Dimensions (W x D x H) | 17.32 x 7.87 x 1.73" (440 x 200 x 44mm) | | Weight | 34.56 oz (980 g) with metal case | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 13.0 x 10.2 x 3.0" |
