User Manual for Shinybow SB-3710 1 x 4 Digital Video Audio Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Shinybow SB-3710 1 x 4 Digital
- Product category: Distribution Amplifiers (DA's) Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Distribution Amplifiers (DA's)
 |
User manual for the Shinybow SB-3710 1 x 4 Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

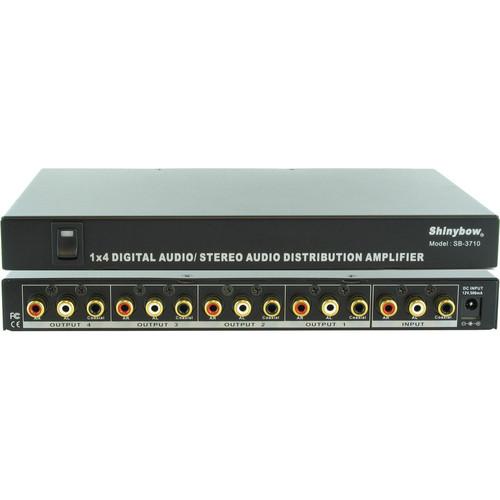

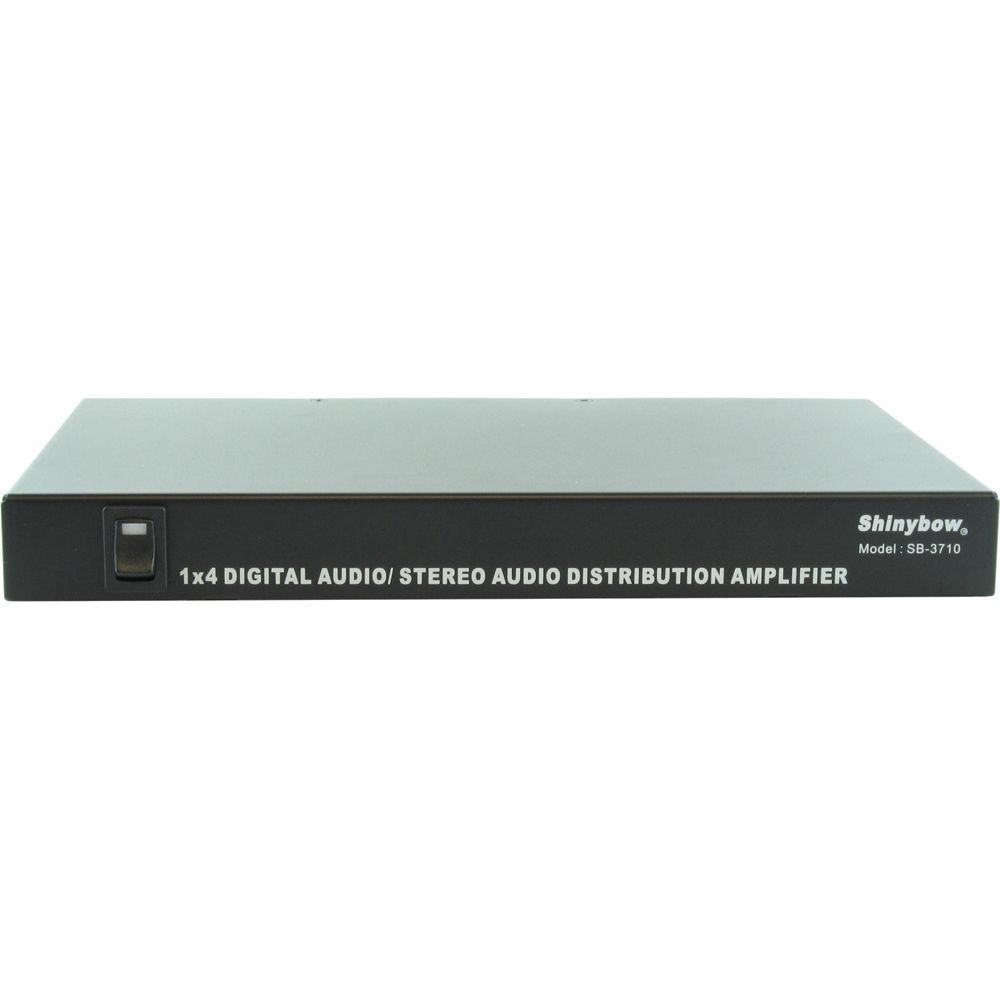

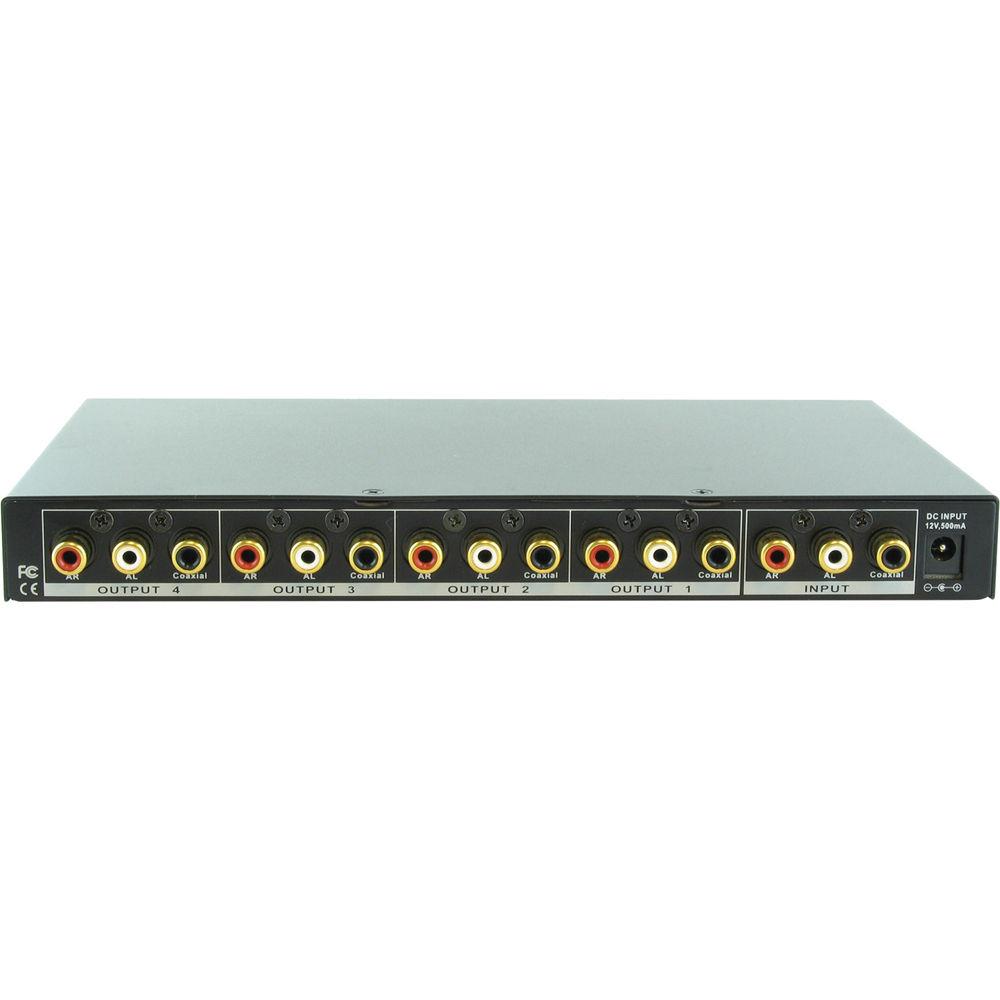

Product description The Shinybow SB-3710 1 x 4 Digital Video Audio Distribution Amplifier features 1 input to 4 outputs and supports a digital audio bandwidth of 110 MHz and an audio bandwidth of 60 MHz. It is a digital (S / PDIF) or video (composite video) and stereo audio (AR / AL) distribution amplifier.
One input is distributed to any 4 outputs thus eliminating the need to constantly move around digital audio or composite video and stereo audio input and output cables.
This distribution amplifier is ideally suited for distributing audio sources from AV signals from VCRs, camcorders, video game console, video CDs, DVDs, satellite receivers, CATV set-top box devices to high-definition TVs and display monitor audio and audio amplifier applications. - Support 1 input to 4 outputs Digital / Video-Audio Distribution Amplifier
- Distributing digital audio S/PDIF (or composite video) and stereo audio (AR / AL)
- Digital Audio Bandwidth: 110 MHz (-3 dB), 200 mVpp, Audio (60 MHz)
- Good distributing with digital audio (S/PDIF) and stereo audio performance
- Audio Frequency Respond: 20 Hz to 20 KHz
- Suitable for distributing audio sources from HD high resolution video player device to LCD / plasma monitor display's audio or audio amplifier
- Direct selection and confirm via front pushbuttons with LED readout
- Enclosure Type: Supports wall 1" (2.54 cm) high rack mountable
- Supports lower power consumed full load under 350 mA
- Power supply offers a universal type 100 to 230 VAC switch
In the Box Shinybow SB-3710 1 x 4 Digital Video Audio Distribution Amplifier 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3710 1 x 4 Digital Video Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3710 Specs | Distribution | Type: 1 input to 4 outputs Digital / Video-Audio Distribution Amplifier | | Signaling System | Type: Digital (S/PDIF) or Composite Video and Stereo Audio (AR / AL) | | Audio Bandwidth | Digital Audio = 110 MHz, (-3 dB), Audio = 60 MHz | | Audio Frequency Response | 20 Hz to 20 KHz | | Differential Phase Error | 0.02, 0.1 dB (RL = 150 W) | | Time | Fast Settling: 15 ns to 0.1% | | Crosstalk | All Hostile: -84 dB @ 5 MHz, -54 dB @ 50 MHZ
Channel: -56 dB @ 100 MHz | | Slew Rate | 1,000 V/us, G = 1.2 V step | | Isolation | High Off: -100 dB @ 10 MHz | | CMOS Sensor | Low Power: 550 uA quiescent current | | Safety Approvals | CE, FCC, RoHS (2002/95/EC) | | Power Voltage Input | 12 VDC @ 0.42 A | | Dimensions (WxDxH) | 9.45 x 5.71 x 1" (240 x 145 x 25 mm) | | Weight | 33.51 oz (950 g) with metal case | | | | Package Weight | 2.9 lb | | Box Dimensions (LxWxH) | 11.2 x 10.1 x 2.9" |
