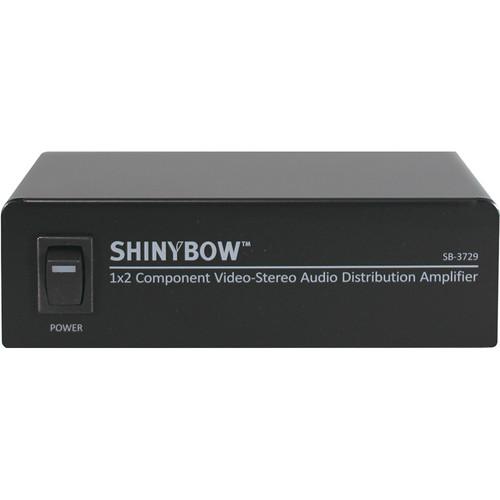

User Manual for Shinybow SB-3729 1 x 2 Component Video Splitter Distribution Amplifier with Stereo Audio Click to enlarge the picture
Contents of the user manual for the Shinybow SB-3729 1 x 2 Component
- Product category: Distribution Amplifiers (DA's) Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Distribution Amplifiers (DA's)
|
User manual for the Shinybow SB-3729 1 x 2 Component contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The SB-3729 1 x 2 Component Video Splitter Distribution Amplifier with Stereo Audio from Shinybow provides multiple video and audio outputs that are identical to the source signal. This is useful for distributing signals from high quality video devices such as camcorders, video game consoles, video CDs, DVDs, satellite receivers, STD set top boxes, and more. The distribution amplifier supports resolutions of 480i, 576i, 480p, 540p, 576p, 540p, 720p, 1080i, and 1080p. In the Box Shinybow SB-3729 1 x 2 Component Video Splitter Distribution Amplifier with Stereo Audio Five Way RCA-to-RCA Cable (Red, White, Green, Blue & Red) AC Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3729 1 x 2 Component Video Splitter Distribution Amplifier with Stereo Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3729 Specs | Inputs | 1 x Component RCA Video (YPrPb)
1 x Stereo RCA Audio (AR/AL) | | Outputs | 2 x Component RCA Video (YPrPb)
2 x Stereo RCA Audio (AR/AL) | | Video Signal | 1 V p-p, 75 W | | Video Bandwidth | 450 MHz @ ±3 dB | | Audio Bandwidth | 20 Hz to 60 kHz (flat) | | Transmission Distance | >164' (50 m) | | Power Consumption | 350 mA maximum | | Power Supply | 12 VDC, 300 mA | | Dimensions | 5.1 x 3.5 x 1.6" (13 x 9 x 4 cm) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 9.9 x 6.5 x 2.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
