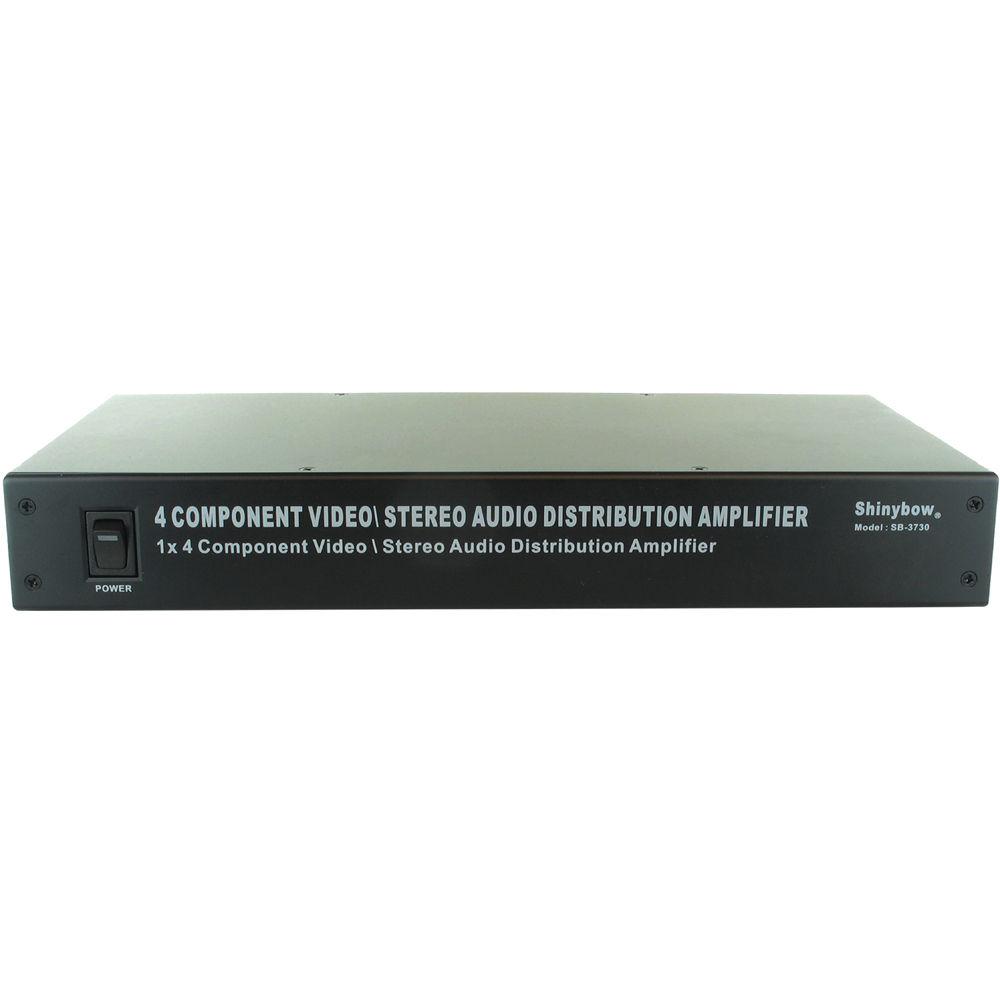

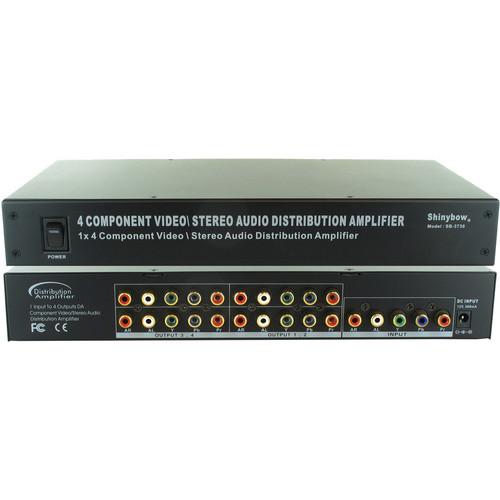

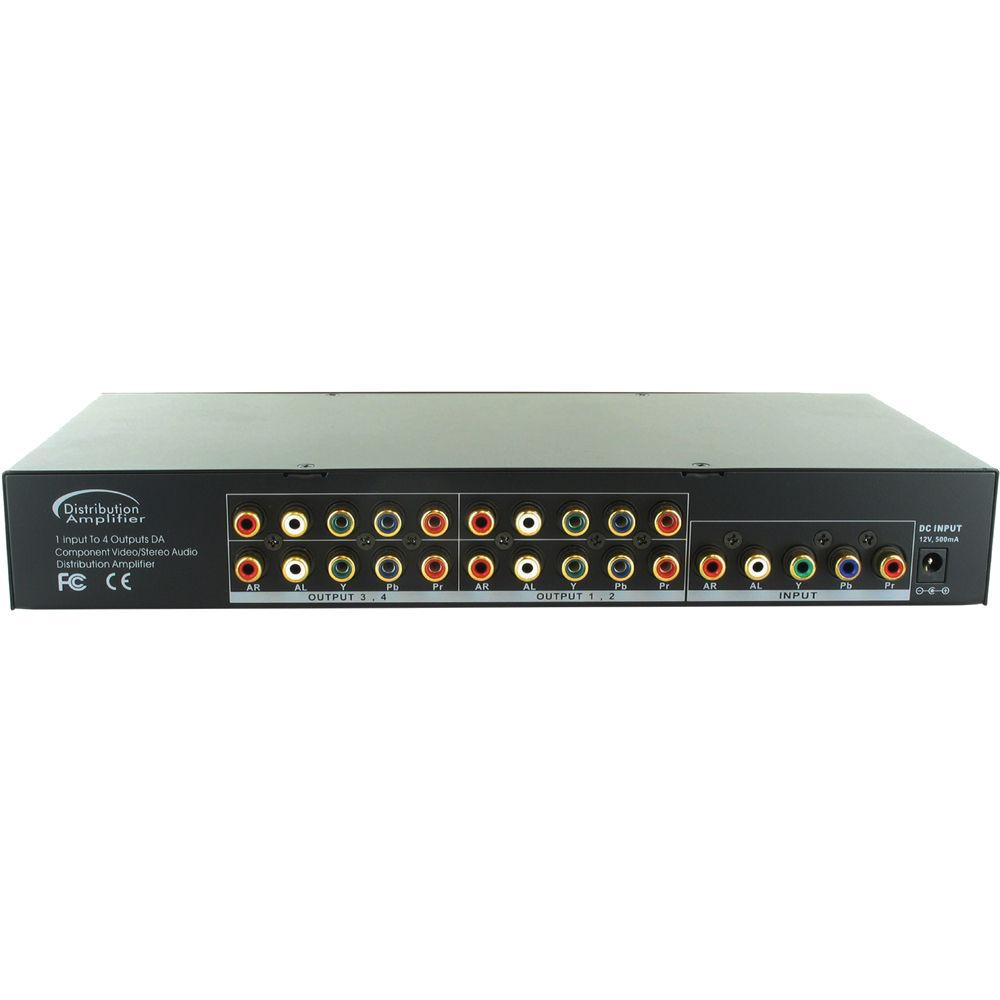

Product description The Shinybow SB-3730 1 x 4 Component-Audio Distribution Amplifier is a 300 to 320 MHz amplifier that features YPBPR (1 input, 4 outputs) and 1 stereo audio (AR/AL) input/output. For mounting, this amplifier is compatible with the 19” (48.26 cm) ear mount pair (part number 1U-304L) and 19” (48.26 cm) MRM 1 RU rack mount.
As it is a component video and audio amplifier, the input may be distributed to any output. It eliminates the need to constantly move around component video and stereo audio input and output cables. This distribution amplifier is ideally suited for HD (high-definition) TVs with 480p, 720p 1080i, and 1080p resolutions, or HD display applications. Control is provided via front pushbuttons with LED readout. - Support 1 input to 4 outputs Component-Audio Distribution Amplifier
- Supports HDTVs with 480i, 480p, 576p, 720p, 1080i, and 1080p
- Video Bandwidth: 300 MHz (-3 dB), 200 mVpp
- Audio Frequency Respond : 20 Hz to 20 KHz
- Low all hostile crosstalk of -83 dB @ 5 MHz
- Signals switch including component video YPBPR, stereo audio (AR / AL) signals
- Suitable for full HD high resolution video player device and LCD / plasma monitor displays
- Direct selection power switch via front pushbuttons with LED readout
- Enclosure Type: Supports 19" (48.26 cm) ears & 1 RU rack mountable panel
- Supports lower power consumed full load under 450 mA
- Power supply offers a universal type 100 to 230 VAC switch
In the Box Shinybow SB-3730 1 x 4 Component-Audio Distribution Amplifier 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3730 1 x 4 Component-Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3730 Specs | Switcher | Type: 1 input to 4 outputs Component-Audio Distribution Amplifier | | Video Bandwidth | 300 MHz, (-3 dB) 200 mVpp, 380 MHz, (-3 dB) 2 Vpp
R = 300 MHz, G = 300 MHz, B = 300 MHz, Audio = 60 MHz | | Audio Bandwidth | 60 MHz, (-3 dB) (Audio-Right = 60 MHz, Audio-Lift = 60 MHz) | | Audio Frequency Response | 20 Hz to 20 KHz | | Crosstalk | All Hostile: -84 dB @ 5 MHz, -54 dB @ 50 MHz
Channel: -56 dB @ 100 MHz | | Slew Rate | 1,000 V/u s, G = 1.2 V step | | Controls | Power switch via front panel selection buttons with LED readout | | Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) | | Power Voltage Input | 12 VDC @ 0.42 A | | Dimensions (W x D x H) | 11.82 x 5.91 x 1.73" (300 x 150 x 44 mm) | | Weight | 47.61 oz (1,350 g) with metal case | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 13.1 x 10.3 x 3.0" |
