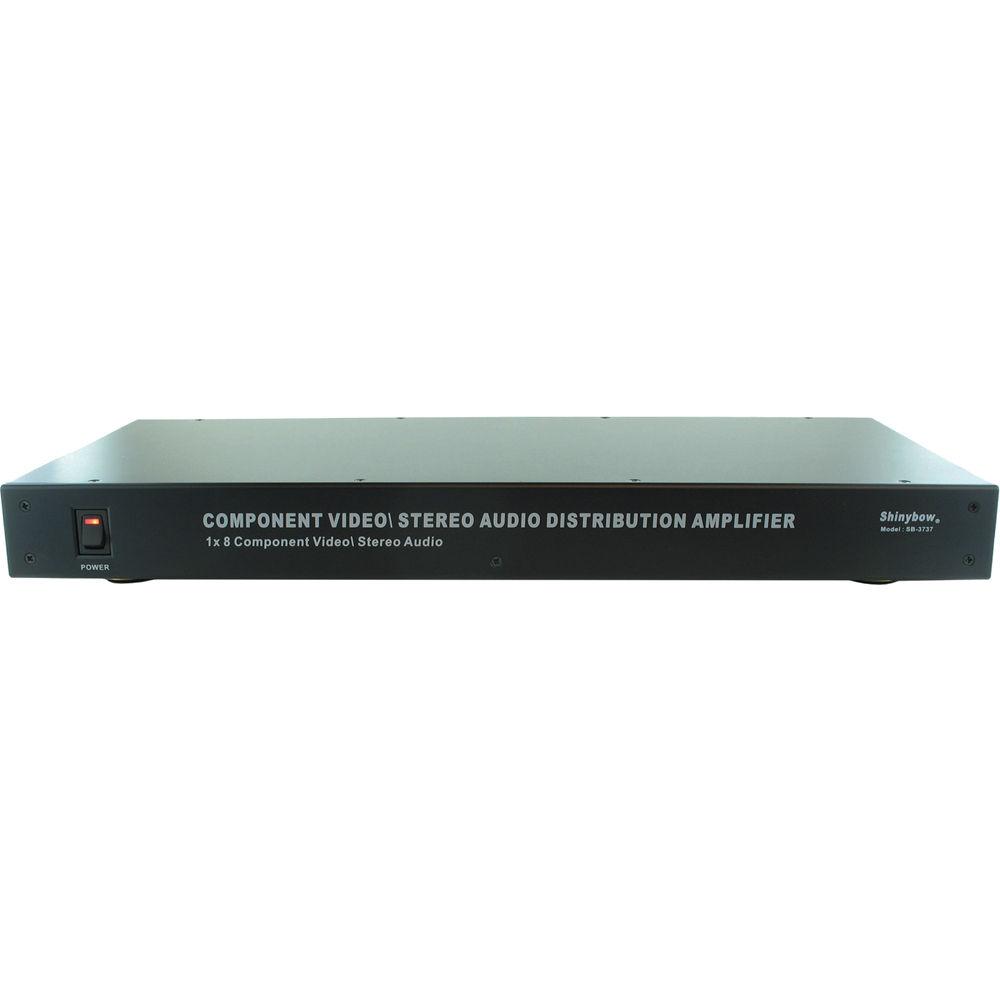

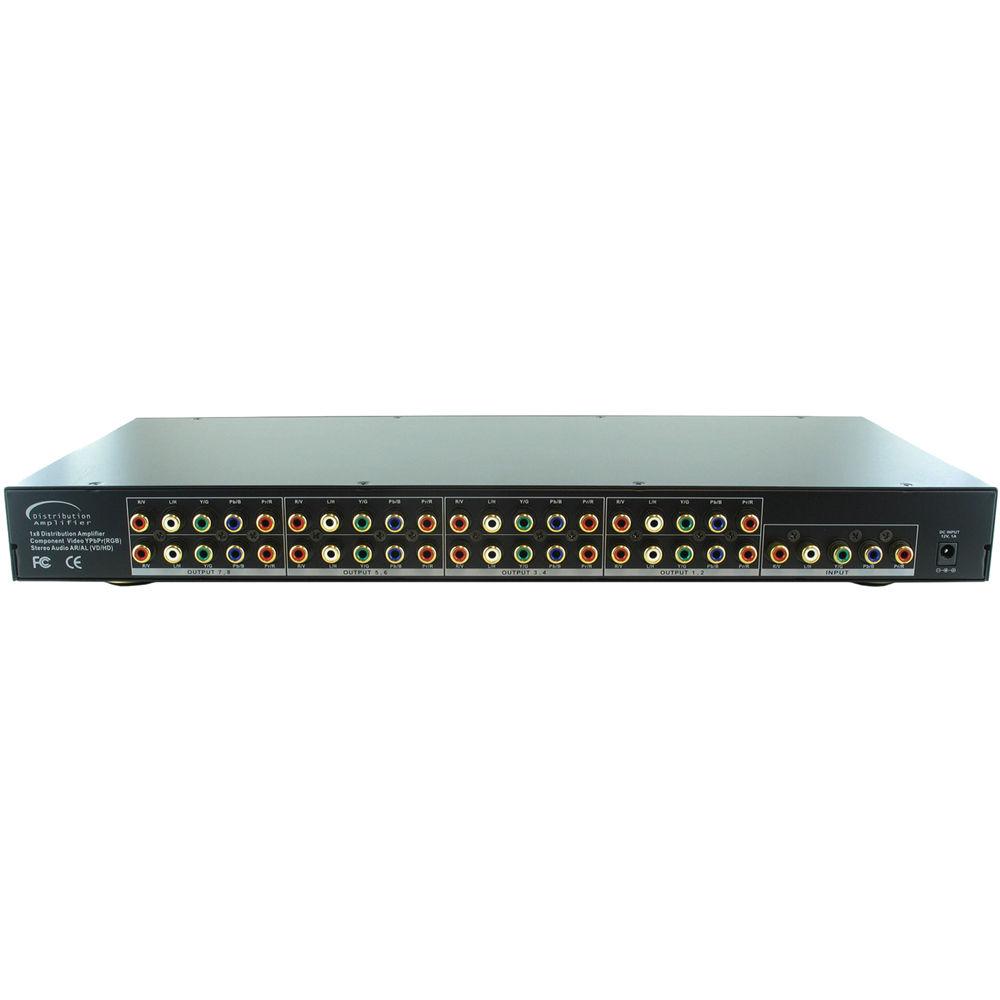

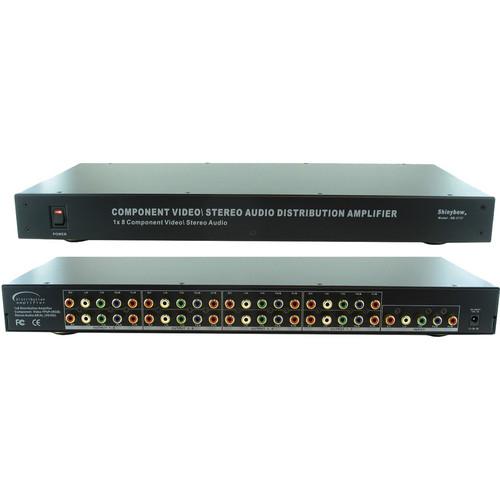

Product description Use the Shinybow SB-3737 1 x 8 Component Video and Audio Distribution Amplifier to distribute one video signal with stereo audio to up to eight destinations via component and stereo audio RCA cables. It can also be used with RGBHV (computer) video without audio. The single input on this compact unit can be routed to all eight outputs, eliminating the need to repatch cables among different display devices. This 700 MHz bandwidth DA features one YPbPr input, eight YPbPr outputs, and one stereo audio (AR/AL) input with eight stereo audio outputs.Supporting up to 1080p60 video resolutions, the SB-3737 is suited for distributing video/audio signals from media players, game consoles, set-top boxes, and display monitors. Inputs and outputs are located at the rear of the unit, with an on/off switch provided on the front panel. A rackmount bracket is included with the SB-3737 unit. - Amplifier distributes one video/stereo audio source to up to eight outputs via component and stereo RCA (AR/AL) connectors
- Supports up to 1080p-resolution video signals
- Small and large-signal video bandwidth, up to 700 MHz
- Rackmount bracket included with unit
In the Box Shinybow SB-3737 1 x 8 Component Video and Audio Distribution Amplifier 12V AC Adapter Rackmount Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3737 1 x 8 Component Video and Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3737 Specs | Type | Component Audio Distribution Amplifier: 1 input to 8 outputs | | Inputs | Video: 1 x Component video, YPbPr/YCbCr/RGB
Audio: 1 x Stereo audio, with standard left/HD, right/VD pairs | | Outputs | Video: 8 x Component video, YPbPr/YCbCr/RGB
Audio: 8 x Stereo audio, with standard left/HD, right/VD pairs | | I/O Connectors | Video: 3-RCA, component
Audio: 2-RCA, stereo | | Video Bandwidth | >700 MHz (+/-2 dB) | | Small Signal Bandwidth | 1 GHz (+/-1 dB), 700 MHz (+/-2 dB) | | Setting Time | 10 ns to 0.1%, 2 VStep (+/-2 dB) | | Audio Frequency Response | 20 Hz to 20 kHz | | Low Distortion SFDR | Second Harmonic: -66 dBc @ 20 MHz
Third Harmonic: -75 dBc @ 20 MHz | | Third Order Intercept (3IP) | 26 dBm @ 70 MHz (+/-10 dB) | | Gain Flatness | 0.1 dB to 75 MHz | | Maximum Power Consumption | 1200 mAh | | Power Supply | 12 VDC @ 1250 mAh | | Dimensions (W x D x H) | 17.5 x 8 x 1.75" (445 x 203 x 45 mm) | | Weight | 4.9 lb (2.2 kg) | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 20.4 x 11.4 x 2.7" |
