User Manual for Shinybow SB-3737SV 1 x 8 S-Video Digital Video Audio Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Shinybow SB-3737SV 1 x 8 S-Video
- Product category: Distribution Amplifiers (DA's) Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Distribution Amplifiers (DA's)
 |
User manual for the Shinybow SB-3737SV 1 x 8 S-Video contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|

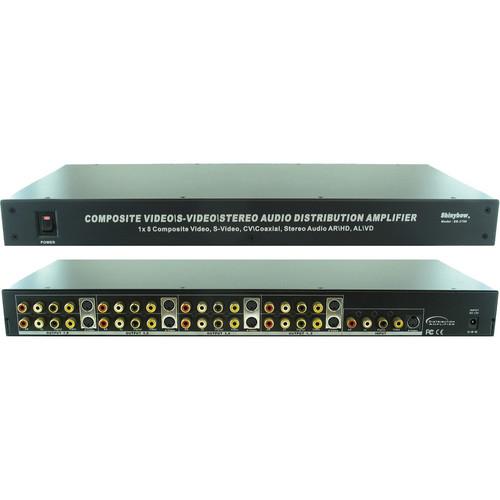

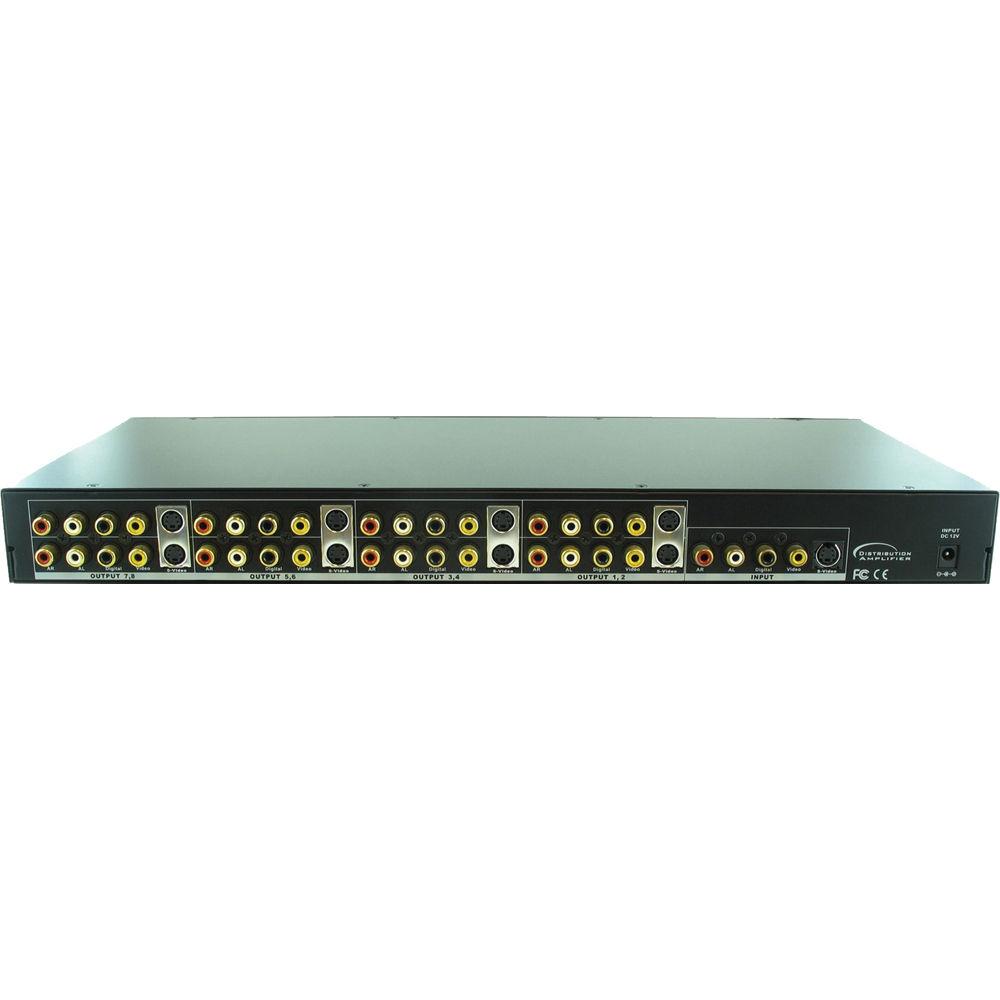

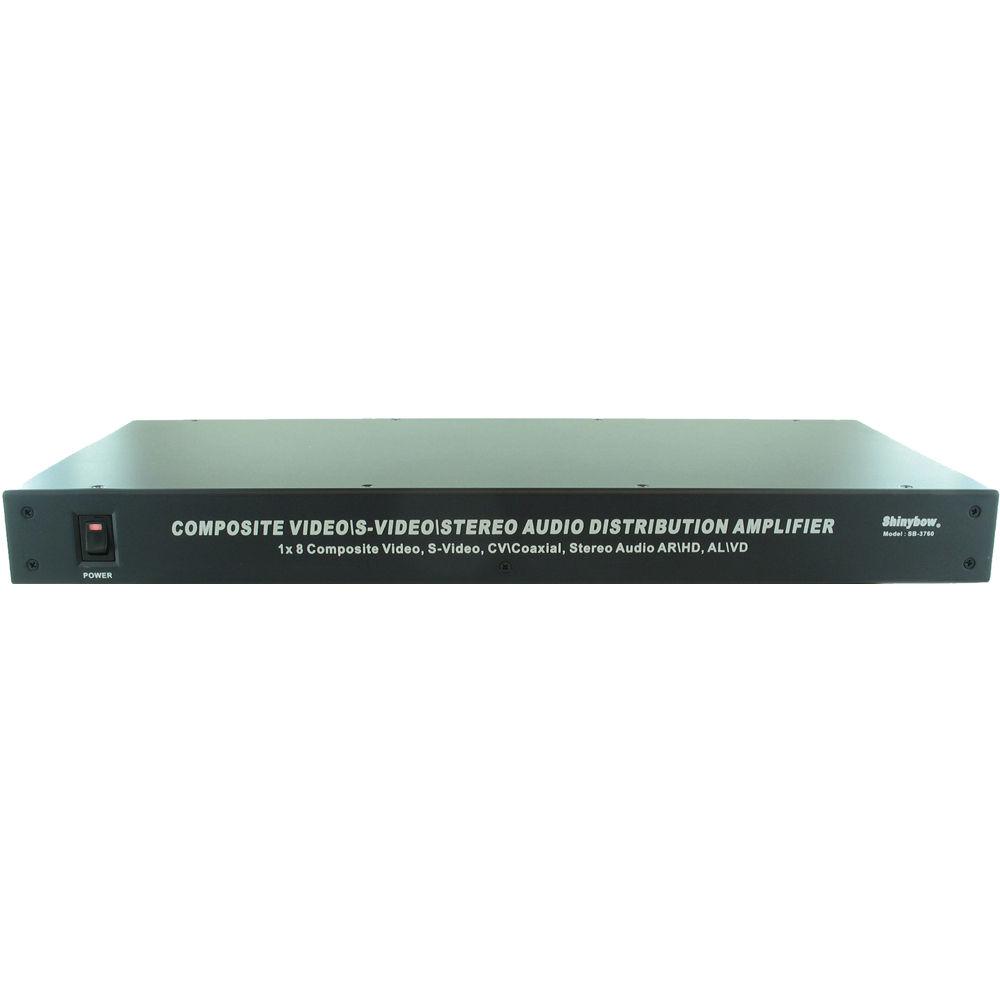

Product description The Shinybow SB-3737SV 1 x 8 S-Video Digital Video/Audio Distribution Amplifier is a 1 input to 8 outputs S-Video, digital audio, composite video, and stereo audio (AR / AL) Distribution Amplifier and supports a video bandwidth of 440 MHz. This amplifier is compatible with the 19” (48.26 cm) ear mount pair (part number 1U-304L) and 19” (48.26 cm) MRM 1 RU rack mount.
It has 1 individual input with 8 individual outputs. As it is a distributor, 1 input may be distributed to any 16 outputs at the same time. It eliminates the need to constantly move around S-Video (Y / C), digital audio, composite video, and stereo audio input and output cables.
This distribution amplifier is ideally suited for distributing AV signals from VCRs, camcorders, video game console, video CDs, DVDs, satellite receivers, CATV set-top box devices to HD (high-definition) TVs with 480p, 720p 1080i, and 1080p resolutions or HD display monitor applications. - Support 1 x 8 S-Video, digital, video, & audio distribution amplifier
- Distributing S-Video (Y / C), digital (S / PDIF), composite video and stereo audio (AR / AL) signals
- Supports HDTVs with 480i, 480p, 576p, 720p, 1080i, and 1080p
- Video Bandwidth: 440 MHz (-3 dB), 200 mVpp
- Audio Frequency Response: 20 Hz to 20 KHz
- Application source devices from VCRs, camcorders, video game console, video CDs, DVDs, satellite receivers, and CATV set-top boxes
- Suitable for distributing to HD high-resolution video player devices, HDTV, TV, and HD monitor displays
- Power switch control via selection pushbuttons with LED readout
- Enclosure Type: Supports 19" (48.26 cm) ears & 1 RU rack mountable panel
- Supports lower power consumed full load under 820 mA
- Power supply offers a universal type 100 to 230 VAC switch
In the Box Shinybow SB-3737SV 1 x 8 S-Video Digital Video/Audio Distribution Amplifier 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3737SV 1 x 8 S-Video Digital Video Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3737SV Specs | Switcher | Type: 1 input to 8 outputs Distribution Amplifier | | Signal | Type: S-Video (Y / C), via 1x Mini-Din 4P female connector
Digital Audio (S / PDIF), via 1x RCA female connector
Composite Video, via 1x RCA female connector
Stereo Audio (AR / AL) via, 2x RCA female connectors | | Video Bandwidth | 440 MHz, (-3 dB) 2 Vpp | | Audio Bandwidth | Digital Audio: 110 MHz, (3 dB), Stereo Audio: 60 MHz, (-3 dB), (Audio-Right = 60 MHz, Audio-Lift = 60 MHz) | | Audio Frequency Response | 20 Hz to 20 KHz | | Crosstalk | All Hostile: -56 dB @ 5 MHz, -45 dB @ 50 MHz | | Scan Rates Accepted | 50 or 60 Hz | | Slew Rate | 1000 V/us, fixed internal gain of 2 | | Controls | Power switch selection via pushbuttons with LED readout | | Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) | | Power Voltage Input | 12 VDC @ 1.25 A | | Dimensions (W x D x H) | 17.32 x 7.87 x 1.73" (440 x 200 x 44 mm) | | Weight | 66.31 oz (1,880 g) with metal case | | | | Package Weight | 7.05 lb | | Box Dimensions (LxWxH) | 20.3 x 11.3 x 3.9" |
