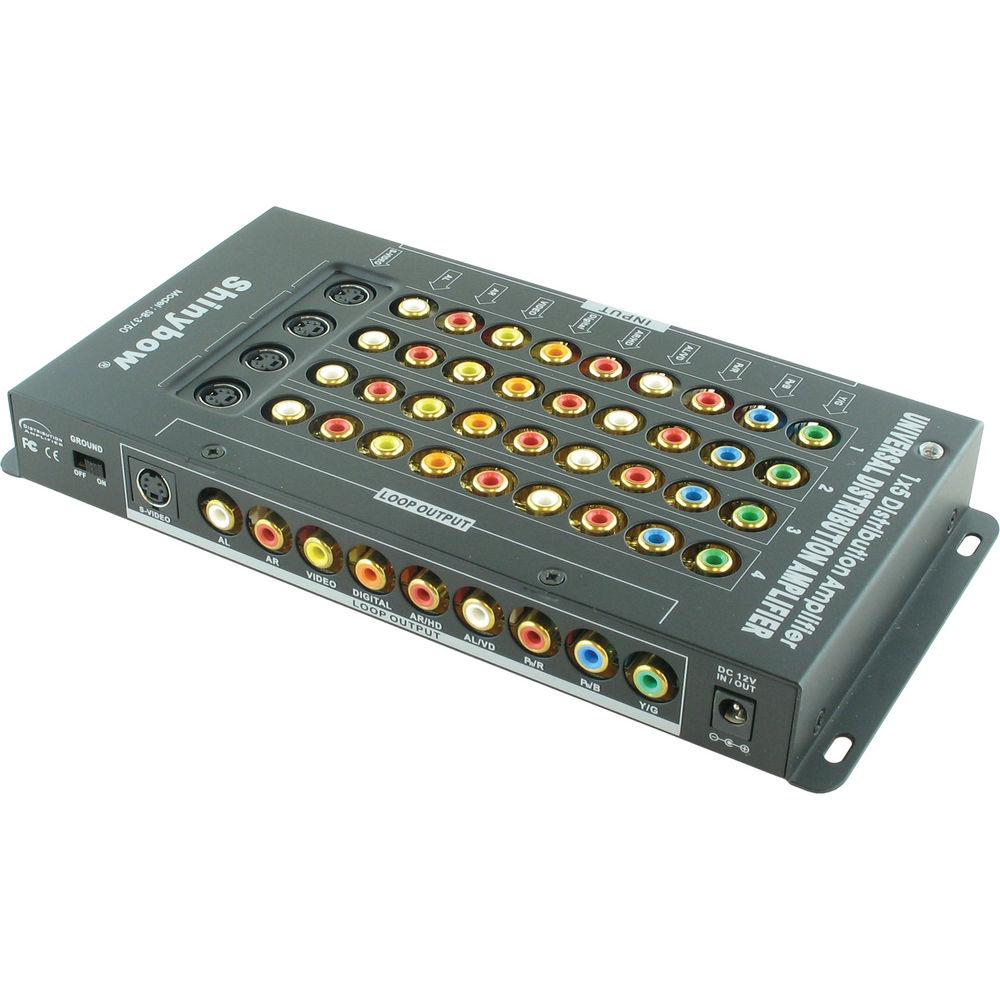

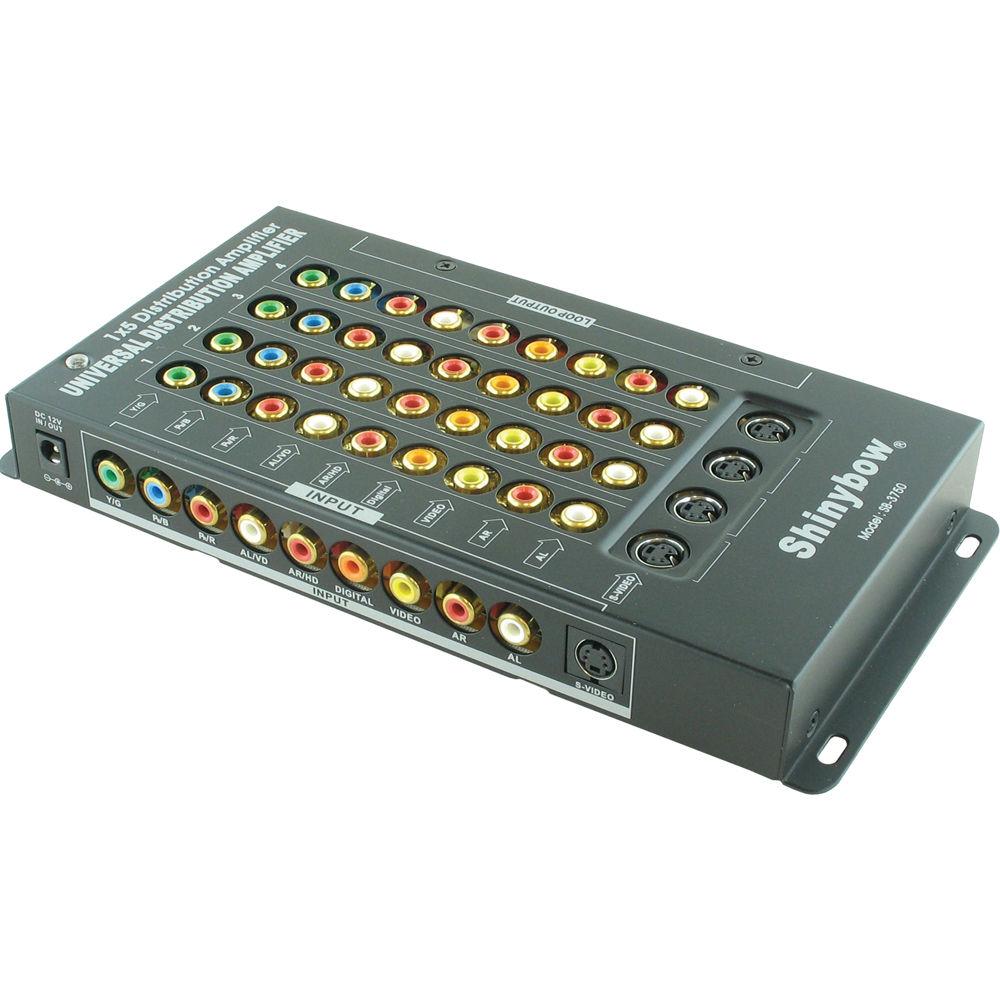

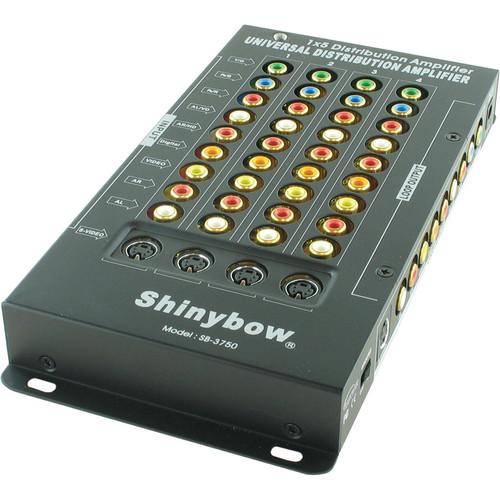

Product description The Shinybow SB-3750 1 x 4 Video/Audio Distribution Amplifier is designed to distribute one video signal to up to four destinations via component, composite, or S-Video cables. The input on this compact unit can be routed to all four outputs, eliminating the need to repatch cables among different display devices. The loop-through output for each signal can be used to connect to a fifth display device, or may be daisy-chained to an additional SB-3750. This >500 MHz bandwidth DA has a 150' cable range, and is compatible with both NTSC and PAL signals. Audio features include one input, four outputs, and one loop-through out each of digital and stereo audio (R/L).Supporting up to 1080p video resolutions, the SB-3750 is suited for distributing video/audio signals from media players, game consoles, set-top boxes, and display monitors. This unit has color-coded connections for quick visual identification and an off/off power switch. Inputs and loop-through outs are located on the sides of the unit, with the outputs located on the top panel. Built-in tabs are included for surface-mounting the Shinybow SB-3750. - Supports up to 1080p video resolution signals; compatible with NTSC and PAL
- Distributes one video source to up to four outputs via component, composite, or S-Video connectors
- One loop-through is provided for each output, and may be used to connect directly to a fifth display unit or daisy-chain to an additional SB-3750 unit
- Digital and stereo audio connectors; up to 150' cable range
- A 12V AC adapter and built-in tabs for surface mounting are included
In the Box Shinybow SB-3750 1 x 4 Video/Audio Distribution Amplifier with Loop-Through Out AC Adapter (12V, 1250mAh) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3750 1 x 4 Video Audio Distribution Amplifier with Loop-Through Out in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3750 Specs | Amplifier | Type: 1 x input to 4 x outputs with 1 x loop-through out | | Input | 1 x Component video (RCA, YPbPr/YCbCr/RGB-HV, 750 Ohms)
1 x S-Video
1 x Composite video
1 x Digital audio
1 x Stereo audio (R/L) | | Outputs | 4 x Component video (RCA, YPbPr/YCbCr/RGB-HV, 750 Ohms)
4 x S-Video
4 x Composite video
4 x Digital audio
4 x Stereo audio (R/L) | | Looping Video Outputs | 1 x Component video (RCA, YPbPr/YCbCr/RGB-HV, 750 Ohms)
1 x S-Video
1 x Composite video
1 x Digital audio
1 x Stereo audio (R/L) | | Video Bandwidth | >500 MHz | | Video Distortion | <0.2 dB (+/-3 dB) | | Audio Bandwidth | >20 Hz to 60 kHz (+/-0.1 dB) | | Audio Distortion | <0.1 dB | | Channel Isolation | >60 dB | | Signal to Noise Ratio | >60 dB | | Video Crosstalk | >-60 dB | | Maximum Cable Distance | 150' (46 m) | | Maximum Power Consumption | 350 mAh | | Power Supply | 12 VDC @ 1250 mAh | | Dimensions (W x D x H) | 8.25 x 4.5 x 1" (21 x 11.4 x 2.5 cm) | | Weight | Unit Only: 1.5 lb (0.7 kg)
Net: 2.9 lb (1.3 kg) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 11.15 x 10.0 x 3.0" |
