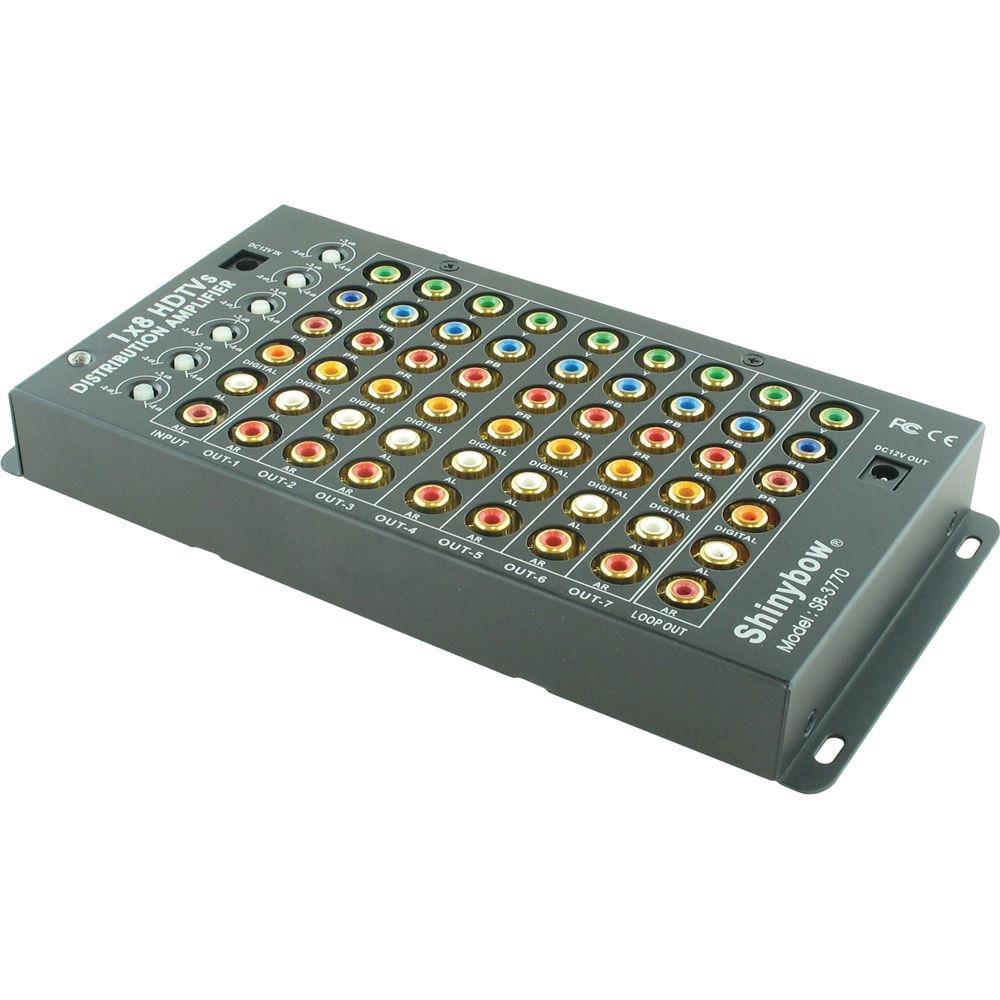

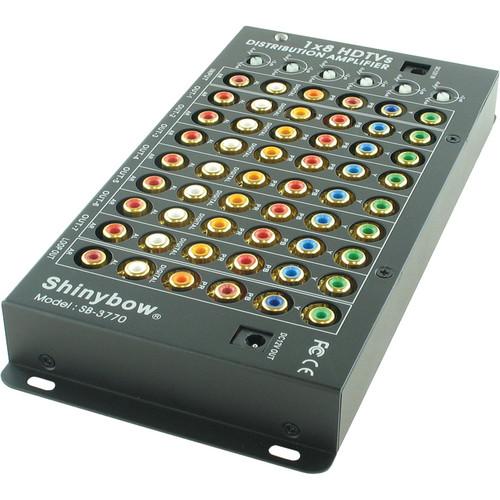

Product description The Shinybow SB-3770 1 x 8 Component Video & Digital Audio Distribution Amplifier features a single Component Video (YPBPR), Digital Audio (PCM), and Stereo Audio (AR / AL) input, 7 individual outputs, and one looping output. It completely eliminates the need to constantly move around component video, digital audio and stereo audio input and output cables.
The distribution amplifier is suitable for full HD (High-Definition) LCD TVs with 480p, 720p, 1080i, and 1080p resolutions, or plasma display applications. You can control this amplifier via the front pushbuttons that have LED readout. - Features one input and 7 individual outputs and 1 loop output
- Supports Component Video (YPBPR), Digital Audio (S / PDIF), S-Video (Y / C), Composite Video, and Stereo Audio (AR / AL) signals
- Suitable for full HD high resolution video player devices and LCD/ plasma displays
- Supports HDTV with 480i, 480p, 576p, 720p, 1080i, and 1080p
- Video Bandwidth: Small signal 700 MHz, (-3 dB), Large signal 380 MHz
- Boost signal: 0 to 6 dB via upper case 6x VR range volume
- Supports one loop output port that allows for connection to 10 other amplifier units
- Enclosure Type: 1" (2.54 cm) wall rack mount
- Low power consumption (full load under 770 mA)
- Universal power supply with a 100 to 230 VAC switch
In the Box Shinybow SB-3770 1 x 8 Component Video & Digital Audio Distribution Amplifier Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3770 1 x 8 Component Video & Digital Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3770 Specs | Distribution | Type: 1 input to 7 individual outputs and 1 loop output | | Signal | Type: Component (YPBPR), Digital (S / PDIF), Stereo Audio signals | | Video Bandwidth | Small signal 700 MHz, (-3 dB), Large signal 380 MHz
R = 380 MHz, G = 380 MHz, B = 380 MHz, Digital = 110 MHz, Audio = 60 MHz | | Audio Bandwidth | 60 MHz, (-3 dB) (Audio-Right = 60 MHz, Audio-Lift = 60 MHz) | | Audio Frequency Response | 20 Hz to 20 KHz | | Crosstalk | All Hostile: -84 dB @ 5 MHz, -54 dB @ 50 MHz
Channel: -56 dB @ 100 MHz | | Volume | Boost: 0 to 6 dB, Amplifier 7 output ports | | Loop Outputs | Supports one extend port to the others 10 amplifier units | | Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) | | Power Voltage Input | 12 VDC @ 1.25 A | | Dimensions (W x D x H) | 8.26 x 3.15 x 1" (210 x 80 x 25 mm) | | Weight | 39.50 oz (1,120 g) with metal case | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 11.4 x 10.1 x 3.0" |
