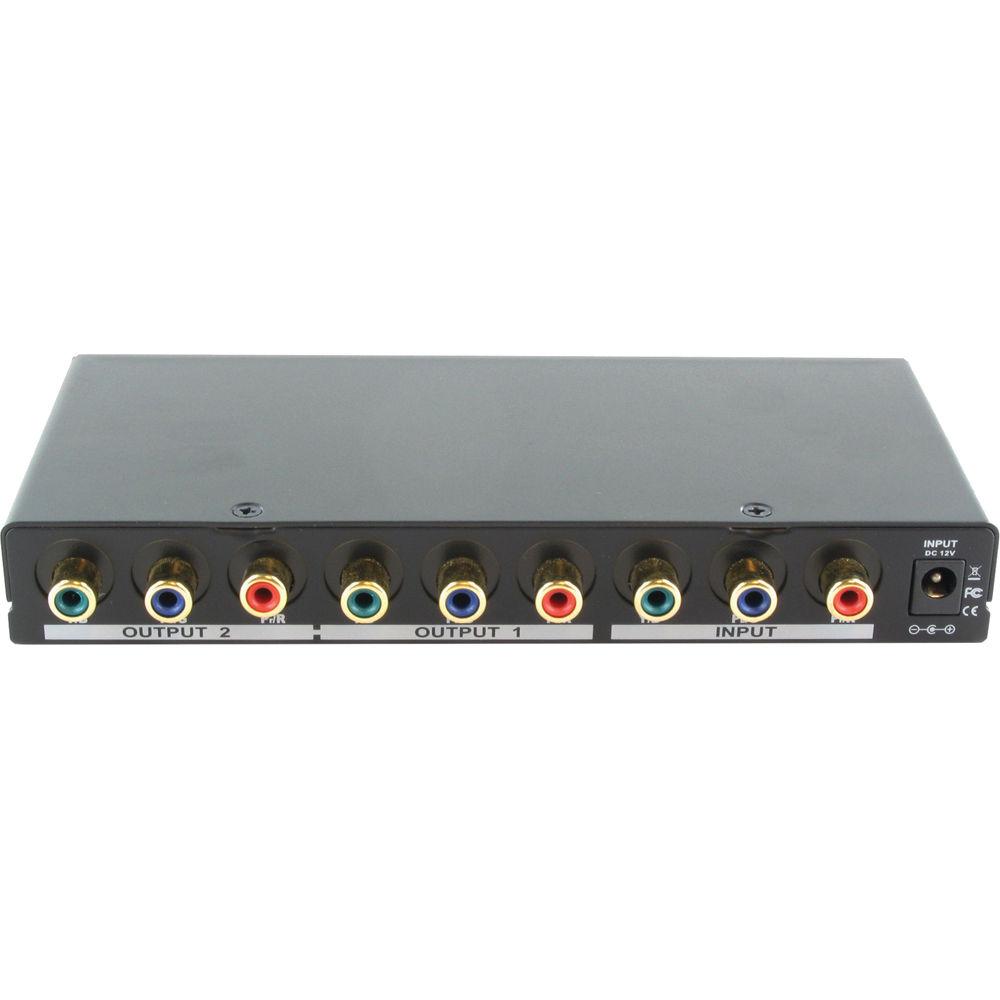

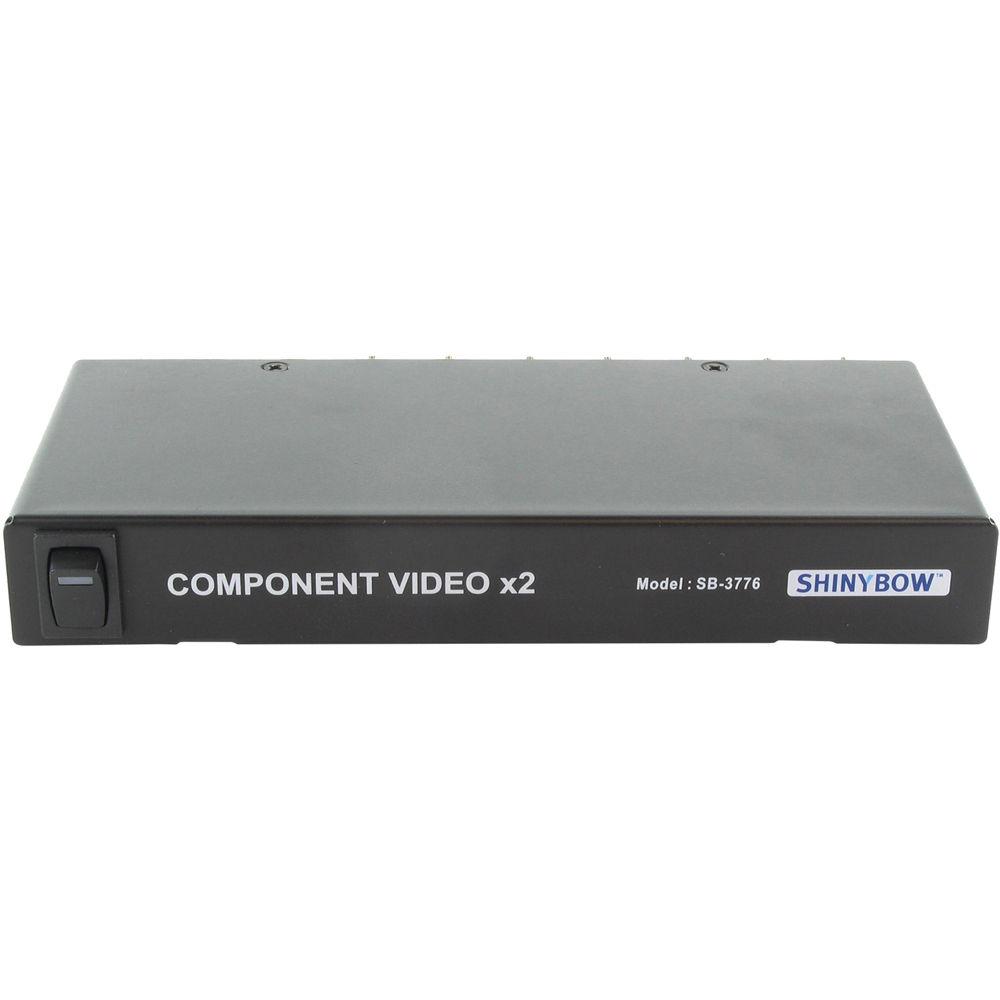

Product description The Shinybow SB-3776 1 x 2 Component Video (RCA) Distribution Amplifier accepts a single component video input and distributes it over 2 individual outputs. It completely eliminates the need to constantly move around component video input and output cables.
The distribution amplifier is ideally suited for full HD (High-Definition) LCD TVs with 480p, 720p 1080i, and 1080p resolutions, or plasma display monitor applications. You can control this amplifier via the front pushbuttons that have LED readout, or via a remote controller. - Features 1 input and 2 outputs
- Supports HDTV with 480i, 480p, 576p, 720p, 1080i, and 1080p
- Video Bandwidth: 250 MHz (-3 dB), 200 mVpp
- Low crosstalk of -83 dB @ 5 MHz
- Compatible with YPBPR signals
- Suitable for full HD high resolution video players and LCD / plasma displays
- Power switch direct On / Off via front pushbuttons with LED readout
- Enclosure Type: Support wall Rack mountable panel
- Low power consumption (full load under 175 mA)
- Universal power supply with 100 to 230 VAC switch
In the Box Shinybow SB-3776 1 x 2 Component Video (RCA) Distribution Amplifier Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3776 1 x 2 Component Video Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3776RCA Specs | Amplifier | Type: 1 input to 2 outputs | | Video Bandwidth | 250 MHz, (-3 dB) 200 mVpp, 300 MHz, (-3 dB) 2 Vpp
R = 250 MHz, G = 250 MHz, B = 250MHz | | Crosstalk | All Hostile: -84 dB @ 5 MHz, -54 dB @ 50 MHz
Channel: -56 dB @ 100 MHz | | Slew Rate | 1000 V/us, G = 1, 2 V step | | Controls | Power switch selection via pushbuttons with LED readout | | Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) | | Power Voltage Input | 12 VDC @ 0.42 A | | Dimensions (W x D x H) | 6.93 x 3.15 x 1" (176 x 80 x 25 mm) | | Weight | 39.97 oz (1,020 g) with metal case | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 9.7 x 6.9 x 2.2" |
