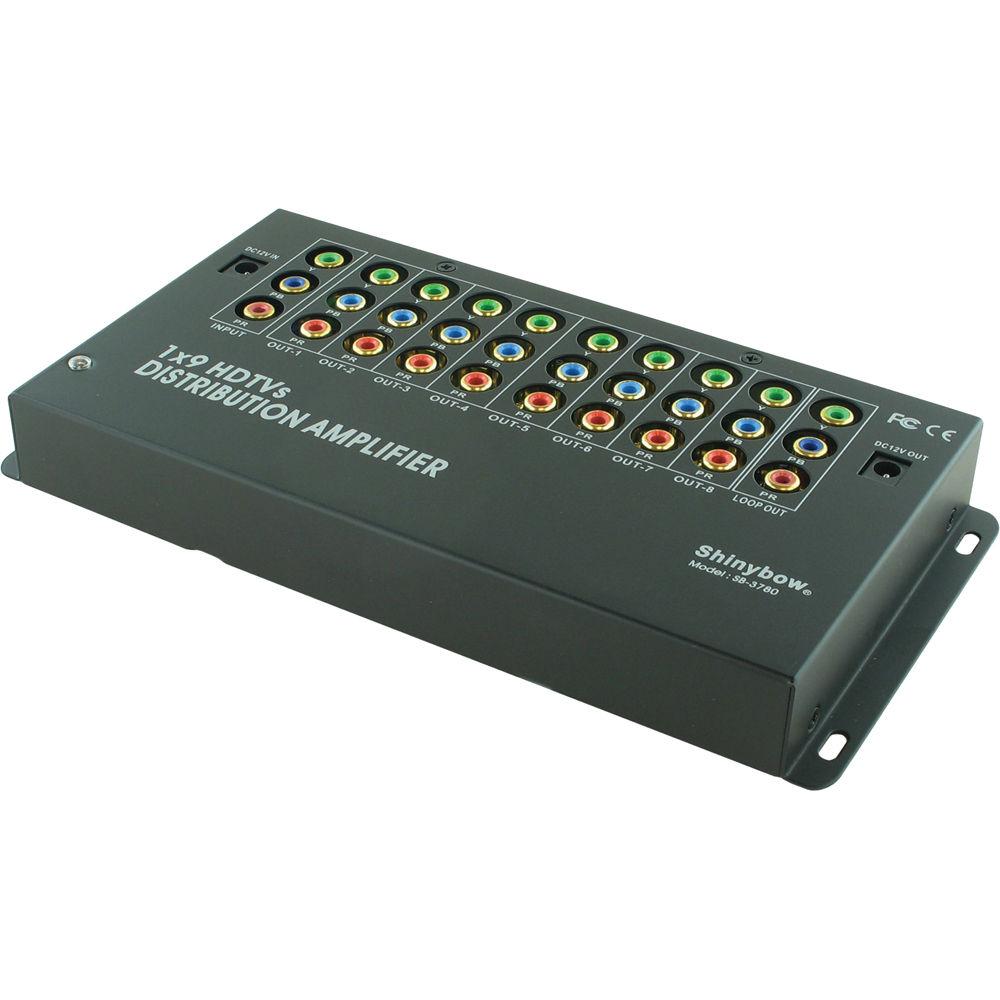

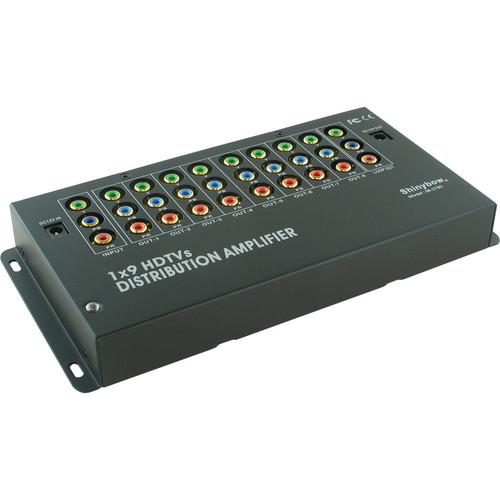

Product description The Shinybow SB-3780 1 x 9 Component Distribution Amplifier with Loop Output is a 700 to 380 MHz amplifier that features component video (YPBPR) input / output. This wall mountable distribution amplifier has 1 individual input with 8 individual outputs and 1 loop output.
As it is a component video and audio amplifier, the input may be distributed to any output. It completely eliminates the need to constantly move around component video cables. This distribution amplifier is suitable for full LCD HDTV television with 480p, 720p 1080i, and 1080p resolutions, or plasma display applications. Control is provided via the power switch with front pushbuttons and LED readout. - 1x Loop Output Distribution Amplifier
- Supports 1 input to 8 outputs
- Signal amplifier includes component video (YPBPR)
- Suitable for full HD high resolution video player devices and LCD / plasma monitor displays
- Supports HDTVs with 480i, 480p, 576p, 720p, 1080i, and 1080p resolutions
- Video Bandwidth: Small signal 1,000 MHz, (-3 dB), Large signal 440 MHz
- Low all hostile crosstalk of -83 dB @ 5 MHz
- Supports 1 loop output port; Linkage connection with 10 other amplifier units
- Enclosure Type: Wall rack mountable, 1" (2.54cm) high
- Low power consumption (800mA) at full load
- Power supply offers a universal type 100 to 230 VAC switch
In the Box Shinybow SB-3780 1 x 9 Component Distribution Amplifier with Loop Output Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3780 1 x 9 Component Distribution Amplifier with Loop Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3780 Specs | Amplifier | Type: 1 input to 8 outputs
1x Loop Output Distribution Amplifier | | Signals | Type: Component video (YPBPR) | | Video Bandwidth | Small signal 700 MHz, (-3 dB), Large signal 380 MHz
R = 380 MHz, G = 380 MHz, B = 380 MHz, Digital = 110 MHz, Audio = 60 MHz | | Crosstalk | All Hostile: -84 db @ 5 MHz, -54 dB @ 50 MHz
Channel: -56 dB @ 100 MHz | | Slew Rate | 1,000 V/u s, G = 1.2 V step | | Loop Outputs | Supports 1 extend port to 10 other amplifier units | | Safety Approvals | CE, FCC, RoHS (2002/95/EC) | | Power Voltage Input | 12 VDC @ 1.25 A | | Dimensions (WxDxH) | 8.26 x 3.15 x 1.00" (210.00 x 80.00 x 25.00 mm) | | Net Weight | 35.97 oz (1,020.00 g) with metal case | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 11.2 x 9.9 x 2.9" |
