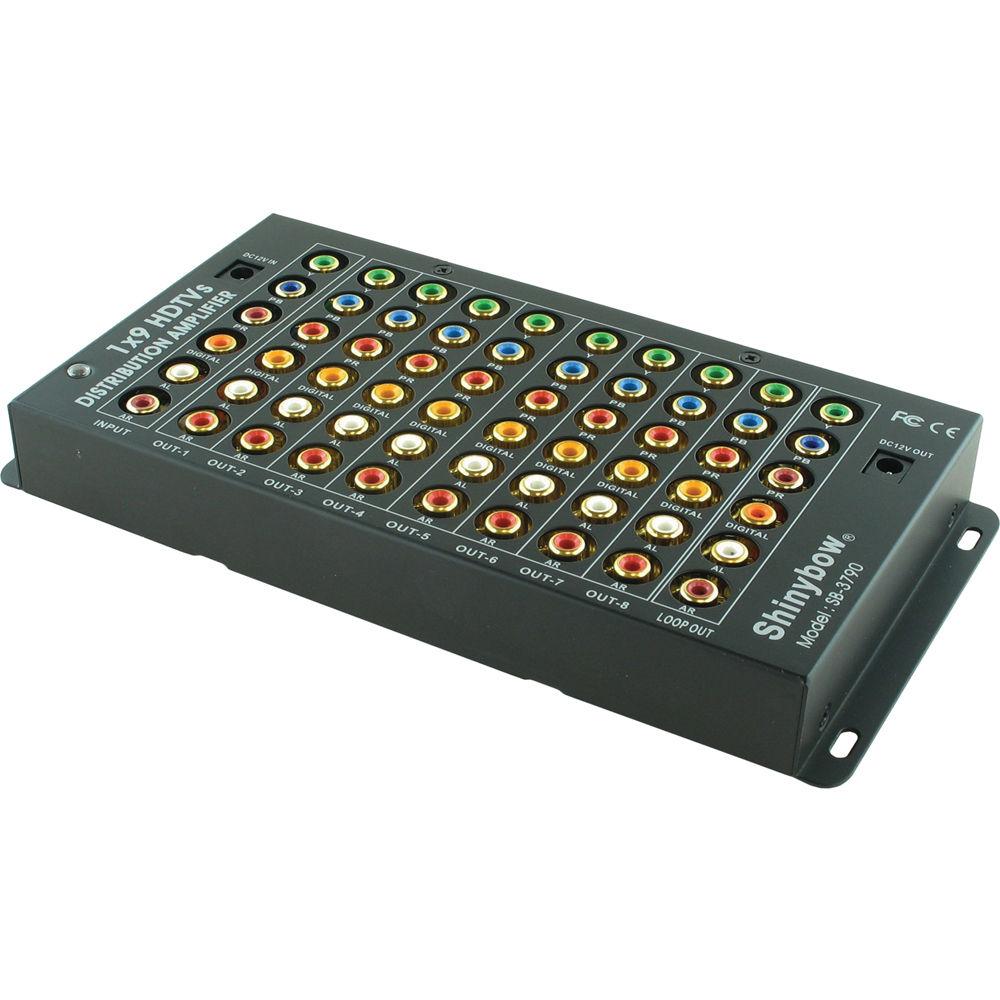

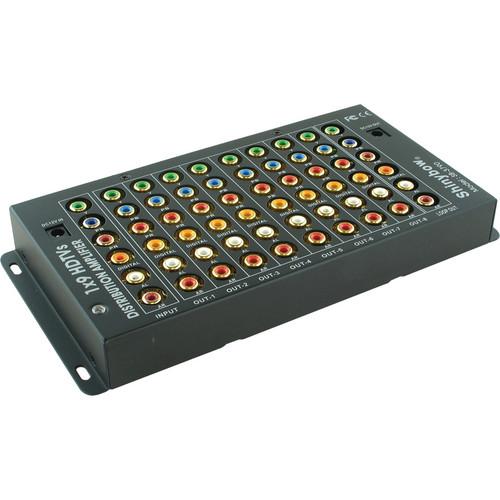

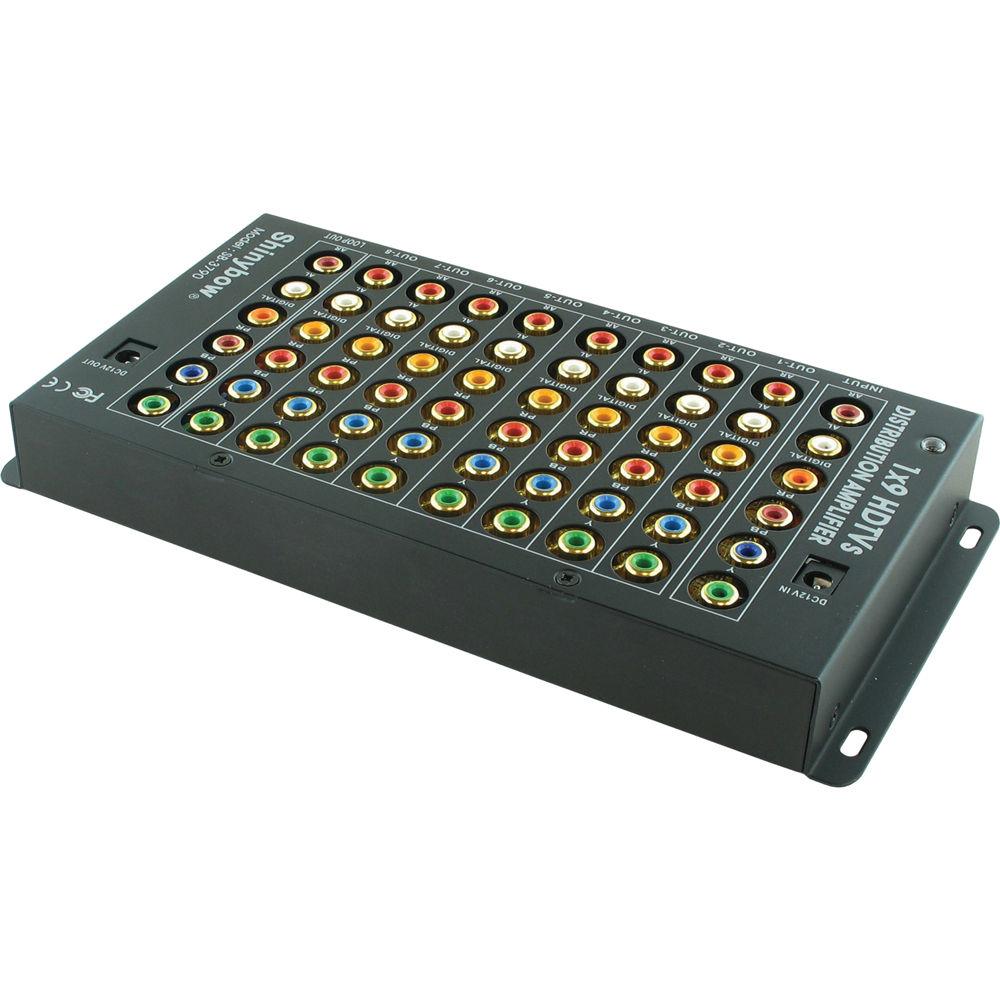

Product description The SB-3790 1 x 9 Component/Digital/Audio Distribution Amplifier with Loop Output from Shinybow is designed to work as a splitter for Audio/Video applications. It is capable of splitting a Component Video and Audio signal from one source to 9 devices with compatible inputs. The presence of a built-in amplifier in this unit helps boost the signal to the needed level, to prevent signal loss and picture degradation. With a maximum bandwidth of 110 MHz, this distribution amplifier supports sharp, HD (high-definition) videos in multiple resolutions of up to 1080p. It is suitable for use with satellite and cable set-top boxes, DVD players, D-VHS players, and all other equipment that is equipped with the proper audio/video connections. - Supports 1x-input to 8x-outputs and 1x loop output distribution amplifier
- Amplifies component video (YPBPR), digital audio (S/PDIF), and stereo audio (AR/AL) signals
- Suitable for full HD (High-Definition) high-resolution video player device and LCD/Plasma monitor displays
- Supports HDTV resolution of 480i, 480p, 576p, 720p, 1080i, and 1080p
- Supports 1 Loop Output port, with a linkage connection to the other 10 amplifier units
- Rack mountable on the wall
- Lower power consumption with full load under 800mA
- Power supply with a universal type 100 to 230VAC switch
In the Box Shinybow SB-3790 1 x 9 Component/Digital/Audio Distribution Amplifier AC-to-DC Adapter (12VDC @ 500mA) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3790 1 x 9 Component Digital Audio Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3790 Specs | Amplifier | Type: 1 input to 8 outputs and 1x loop output distribution amplifier | | Signals | Type: Component (YPBPR), digital(S/PDIF), and stereo audio signals | | Input | 1 x Video:
Component video YPbPr(YCbCr) / RGB
1 x Audio:
Digital audio (COAX) or composite video (CV)
Signal bandwidth of 110 MHz
Liner-phase pass
Band unity-gain
1 Vpp terminated to 75 Ω
Stereo audio (standard left/HD, right VD pairs) | | Output | 9 x Video:
Component video YPbPr(YCbCr) / RGB
9 x Audio:
Digital Audio (COAX) or composite video (CV)
Signal bandwidth of 110 MHz
Liner-phase pass band unity-gain
1 Vpp terminated to 75 Ω
Stereo audio (standard left/HD, right VD pairs) | | Video Bandwidth | 110 MHz | | Bandwidth -3 dB Point | Small Signal: 1 GHz , G= +1, 700 MHz , G= +2 | | Third Order Intercept | 26 dBm @ 70 MHz, G= +10 | | Gain Flatness | 0.1 dB to 75 MHz | | Differential Gain Error | 0.01%, RL = 150 Ω | | Differential Phase Error | 0.01%, RL = 150 Ω | | Input/Output Terminals | Color-coded RCA female connectors | | Audio Bandwidth | 60 MHz, (-3 dB) (Audio-Right = 60 MHz, Audio-Left = 60 MHz) | | Frequency Response | Audio: 20 Hz to 20 kHz | | Crosstalk | -60 dB @ -5 MHz | | Slew Rate | 1,000 V/us, G = +1.2 V, Step | | Loop Outputs | Loop Output Port, extension amplifier about 10 units | | Safety Approvals | CE, FCC, RoHS (2002/95/EC) | | Power Consumption | 350 mA maximum | | Power Voltage Input | 12 VDC @ 1.25 A | | Dimensions (W x D x H) | 9.06 x 4.50 x 1.06" (230.12 x 114.30 x 26.92 mm) | | Net Weight | 1.54 lb (0.7 kg) (only unit) | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 11.1 x 10.0 x 2.8" |
