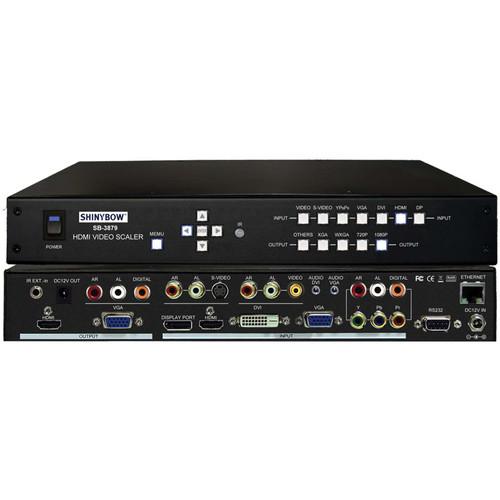

User Manual for Shinybow SB-3879 7 x 2 Mirrored Multi-Format HDMI Video Scaler Selector Switch Click to enlarge the picture
Contents of the user manual for the Shinybow SB-3879 7 x 2 Mirrored
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow SB-3879 7 x 2 Mirrored contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow SB-3879 7 x 2 Mirrored Multi-Format HDMI Video Scaler Selector Switch is a professional high-performance video graphics scaler supporting 7 different signal types. It is able to scale any of its seven inputs to both of its two outputs. The inputs include composite RCA, S-Video, component RCA, VGA, DVI, DisplayPort, and HDMI. All video inputs also have a dedicated audio input. Any of the seven video with audio inputs can be scaled simultaneously to both HDMI and VGA. Along with both stereo RCA and S/PDIF audio outputs.
The scaler supports full HDTV resolution data rates enabling transmission of 480i/p, 576i/P, 720p, or 1080i/p formats, higher DVI resolution (1920 x 1200), HDMI 1080p-60, DP (2550 x 1600), and is suitable for high-definition 3D TV, HDTV, Plasma displays, or monitor applications. Control is provided via front panel buttons with LED readout, RS-232, Ethernet, or by the included IR remote control. An RS-232 interface is provided for interfacing with third party controllers. A windows-based control software package is included to provide complete control of the SB-3879 from a PC. - Video Wall Function
-
- Magnify, scroll, and pan through all inputs
- Image split, cropping, and assigning display location
- Pixel based overlap adjustment in all edges, up to 15 x 15 matrix displays and up to 2560 x 1600 input resolution via display port
- System Control
-
- Box ID for easy independent control through IR, RS-232, and 5 selectable profile settings for difference display
- Ethernet control module with RJ-45 connector
- Code updated through RS-232
- ASCII control protocol over RS-232 and Ethernet using 3rd party controllers
- One 12VDC, 1A trigger output
- Windows based GUI control via RS-232 port
- Front panel push button
- IR wireless remote control
- Via Ethernet with built-in web browser
- Advanced Video Processing
-
- Advanced 3D de-interlace, smooth edge algorithm, and 3:2/2:2 film mode
- High-quality video and graphics scaling up and down
- Frame rate conversion
- Intelligent Color Adjustment
- Discrete RGB, color adjustment, hue, saturation sharpness, contrast, brightness, 4 preset color modes
- 3D Function
-
- Auto-detect standard 3D signals (with 3D index inside) from Blu-ray DVD or STB
- Supports Full HD @ 24 Hz Full HD 3D signals with special algorithm for RH/LH synchronization
- Bypasses XGA & 720p 120Hz 3D signal for DLP link 3D ready projector for active 3D display
- Additional Features
-
- Supports HDMI 1.4a 3D format
- HDMI 1.4, DVI 1.0, HDCP 2.0 compliant
- Scales a wide range of HD resolutions: PC (XGA to WUXGA) and HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i, and 1080p, and any analog video, S-Video (Y/C), component video (YPBPR), PC VGA, DVI, HDMI, or DisplayPort resolutions
- Input port supports composite video, S-Video (Y/C), component video (YPBPR) 480i/p, 576i/p, 720p, 1080i/p, DVI (1920 x 1200), HDMI 1080p-60, DisplayPort (2560 x 1600)
- Output supports PC VGA (XGA to WUXGA) and HDMI 1080P-60 with 36-bit deep color Digital Audio support for SPDIF and Stereo Audio outputs
- Input resolution up to 1080p, 1920 x 1080, 1920 x 1200, and 2560 x 1600 (only in DP)
- Supports 3D Formats: Frame packing, side by side, and top/bottom signal types
- OSD (on-screen display) for menu color, resolution, and input source selections
- Supports IR remote control and IR extension up to 1000’ (300m)
- Desktop mounting with 19” rack mount (included)
- 12VDC power supply, universal switch 100 to 240VAC, 50/50Hz
- Metal chassis
In the Box Shinybow SB-3879 7 x 2 Mirrored Multi-Format HDMI Video Scaler Selector Switch IR Remote Control SB-100 IR Extender Receiver 19" Ear Mount Bracket RS-232 Driver CD (All Windows Operating Systems) RS232 Cable AC/DC Adapter: Power Supply 12VDC, 1000 to 3000mA, 3A Universal Type Switch 50/60Hz, 100 to 230VAC Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-3879 7 x 2 Mirrored Multi-Format HDMI Video Scaler Selector Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-3879 Specs | Type | Scaler: 7 Inputs & 2 Outputs HDMI High Quality Video Scaler | | HDMI Compliance | HDMI 1.4a compliant receiver and output transmitter, DVI 2.0 | | Video Inputs | 1 x Composite RCA
1 x S-Video (y/c)
1 x Component(YPbPr)RCA
1 x VGA
1 x DVI
1 x HDMI Type A
1 x DisplayPort | | Audio Input | 1 x S/PDIF RCA (Digital)
3 x Stereo RCA (Analog)
2 x Stereo 3.5mm (Analog) | | Video Output | 1 x VGA
1 x HDMI Type A | | Audio Output | 1 x S/PDIF RCA (Digital)
1 x Stereo RCA (Analog)
1 x HDMI embedded audio (Digital) | | HDCP Support | DVI / HDMI / DisplayPort compliant with HDCP 2.0 specification | | Input Resolution | Up to 1080p-60, 1920 x 1200, and 2560 x 1600 (only in DP) | | Output Resolution | Up to 1080p-60 and 1920 x 1200 | | Control | IR EXT, select buttons on the front panel & RS-232 | | 3D Support | 3D video format in HDMI 1.4a (225 MHz) | | Source | Status: Automatic scanning of input/output status | | Output | Timing: 480i, 480p, XGA @ 60, 480P, 720P-60, 1080P-60, XGA @ 50, 576P, 720P @ 50, 1080P @ 50, UXGA @ 60, UXGA @ 50, WXGA @ 60, WXGA @ 50, XGA @ 60, XGA @ 50, 1400 x 1500 @ 50, 1400 x 1500 @ 60, 1920 x 1200 @ 60, 1280 x 800 @ 60, SVGA @ 60, 1280 x 800 @ 50, 1080p @ 24, 720p @ 120, 720p @ 100, XGA @ 120 | | Cable Distance | HDMI: 49' (15 m) maximum depending on the cable quality | | Frequency | Infrared: 38 kHz | | Distance | IR Extender: IR extender with cable distance up to 1000' (300 m) maximum | | Safety Approvals | CE, FCC, RoHS (2002/95/EC) | | Power Supply | Input 100 to 240 VAC, 50/60 Hz, Output 12 VDC, 3 A | | Dimensions (L x W x H) | 11.96 x 5.90 x 1.73" (304.00 x 150.00 x 11.00 mm) | | Weight | 3.42 lb (2.05 kg) | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 13.0 x 10.3 x 2.1" |
