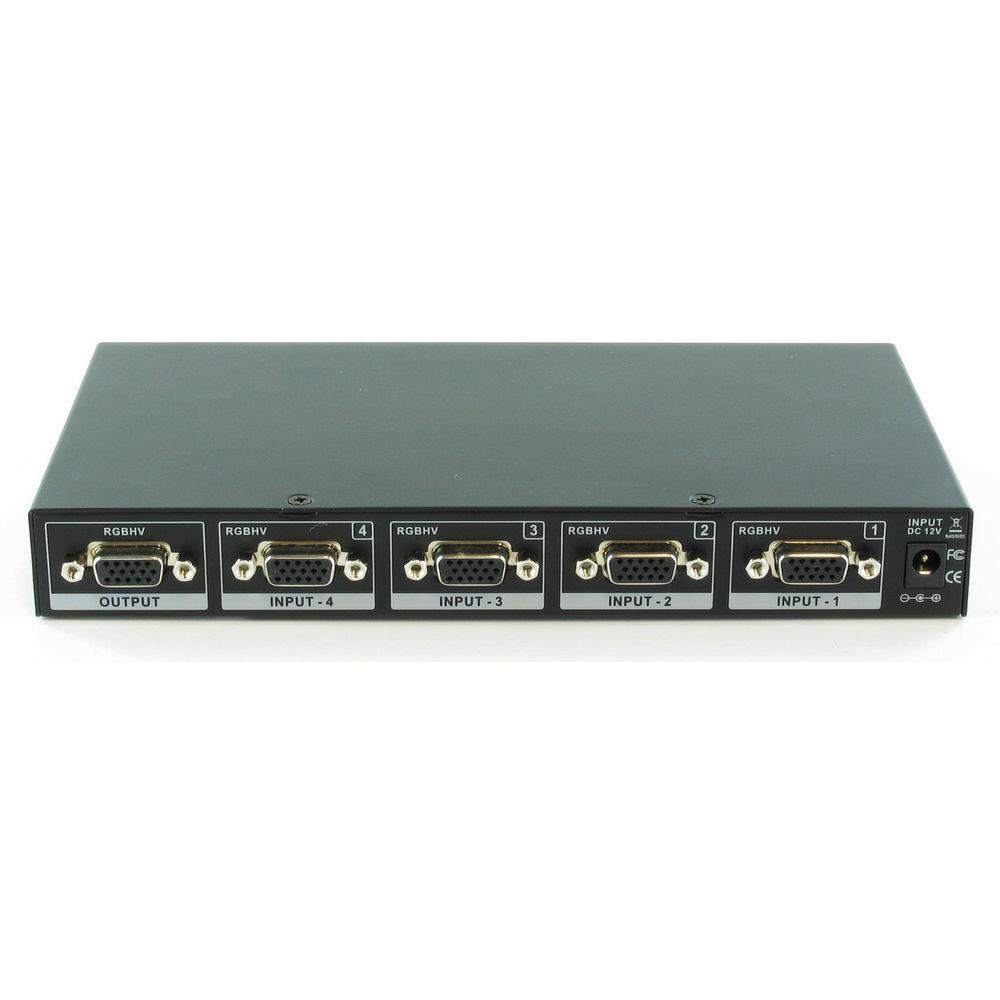

Product description The Shinybow SB-4106 4 x 1 VGA Routing Switcher with IR Control features a video bandwidth of 310 MHz and maximum 380 MHz. It consists of 4 individual inputs with 1 individual output. Because it is a 4 input switcher, any input may be routed to 1 output, eliminating the need to constantly move around VGA input and output cables.

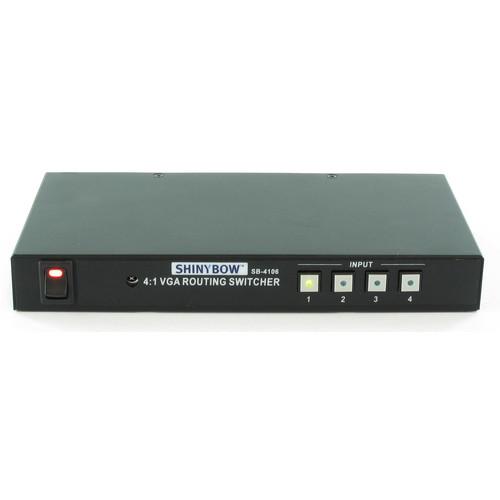

The SB-4106 matrix switcher is ideally suited for full HD high definition LCD television and plasma display monitor applications. This switcher supports 480p, 720p, 1080i, and 1080p HDTV high resolutions, and UXGA (1600 x 1200) VGA high HD resolution. Control is provided via front switch push buttons with LED readout or IR remote controller. - Support 4 inputs to 1 output VGA Switcher
- Supports PC resolutions: VGA (640 x 480), SVGA (800 x 600), XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), and WUXGA (1900 x 1200)
- Good video (VGA to RGBHV) performance
- ESD rating exceeds 4,000 V
- Switches RGBHV in LCD monitors and plasma monitor displays
- Suitable for full HD high-resolution video player devices and LCD / plasma monitor displays

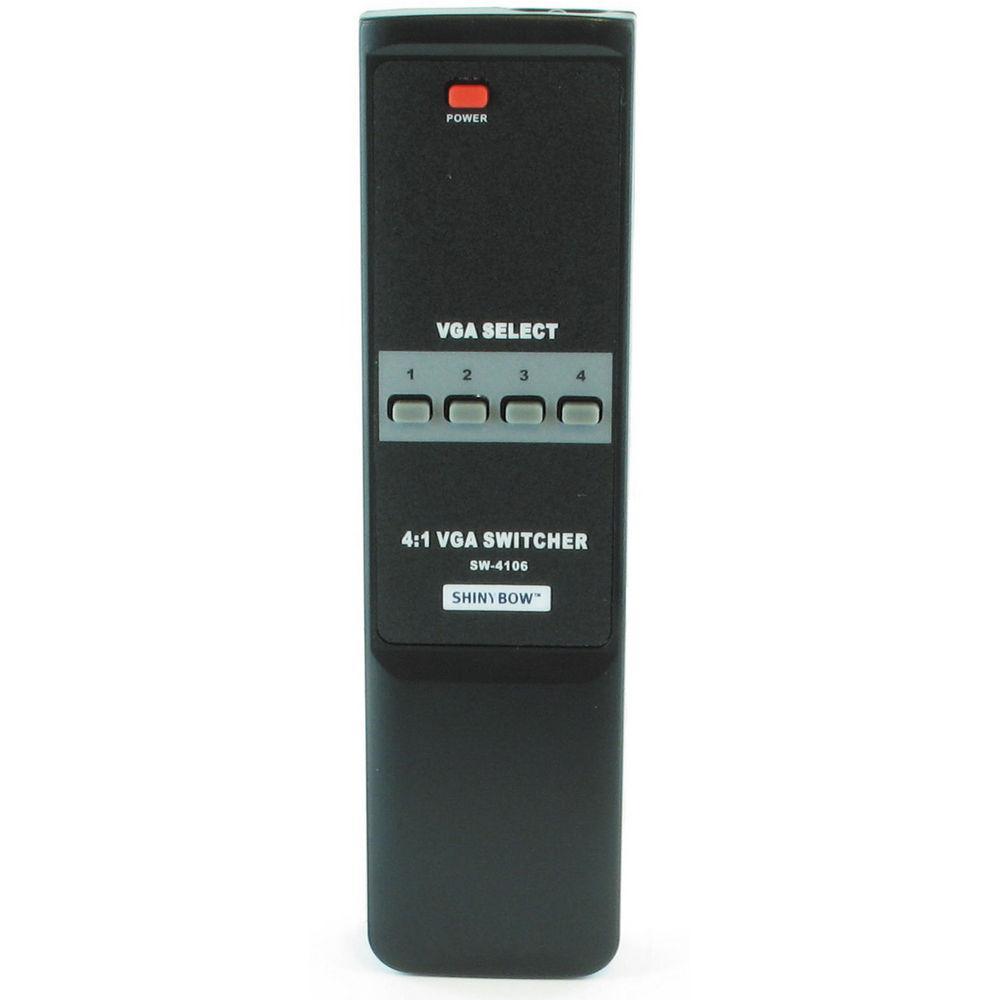

- Infrared IR remote control (38 kHz)
- Enclosure type: Supports 19" (48.26 cm) ear; 1 RU rack mountable panel
- Supports lower power consumed full load under 550 mA
- Power supply offer a universal-type 100 to 230 VAC switch
In the Box Shinybow SB-4106 4 x 1 VGA-RGBHV Matrix Routing Switcher with IR Control IR Remote Control RS-232 Driver CD (All Windows Operating Systems) User Guide AC / DC Adapter (12 VDC, 1,000 to 3,000 mA) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-4106 4 x 1 VGA-RGBHV Matrix Routing Switcher with IR Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-4106 Specs | Type | 4 inputs to 1 output VGA Switcher | | Video Bandwidth | 380 MHz, (-3 dB) 200 mVpp, 310 MHz, (-3 dB) 2 Vpp, R = 325 MHz, G = 325 MHz, B = 325 MHz, H = 110 MHz, V = 110 MHz | | Gain Flatness | 0 MHz, 0.1 dB | | Differential Gain Error | 0.01%, 0.1 dB | | Differential Phase Error | 0.02, 0.1 dB (RL: 150 Ω) | | Settling Time | 15 ns to 0.1% | | All Hostile Crosstalk | -84 dB @ 5 MHz
-54 @ 50 MHz | | Crosstalk | Channel: -56 dB @ 100 MHz | | Slew Rate | 1,000 V/us, G = +1.2 V Step | | Isolation | High Off: -100 dB @ 10 MHz | | Settling Time | 50 ns to 0.1% | | Output Current | 100 mA | | Power | CMOS: 500 uA quiescent current | | Controls | IR remote controller (38 kHz), front panel selection buttons with LED readout | | Power Voltage Input | 12 VDC @ 1.25 A | | Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) | | Dimensions (WxDxH) | 9.05 x 4.72 x 1" (230 x 120 x 25 mm) | | Weight | About 3.86 lb (1.75 kg) (with metal case) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 4.0" |
