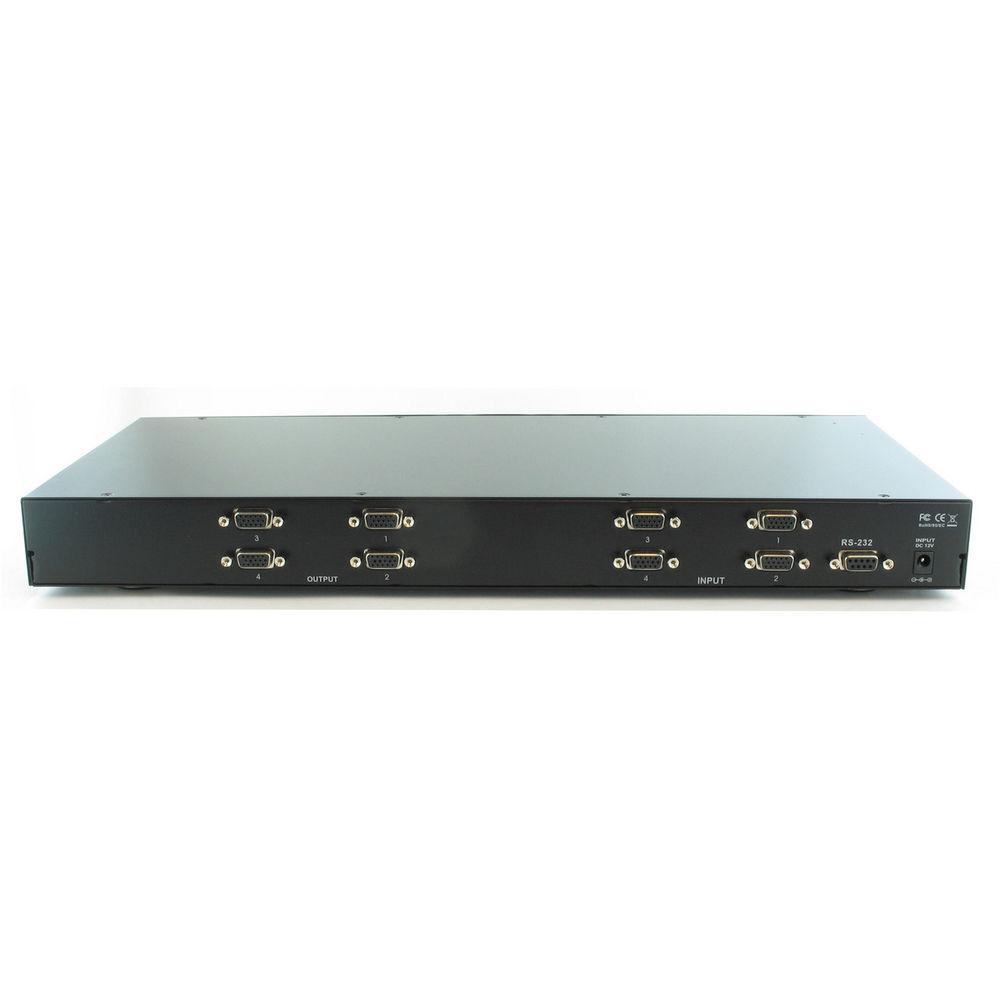

Product description The Shinybow SB-4140 4 x 4 VGA Matrix Switcher with IR & RS-232 Control has a video bandwidth from 310 to 380 MHz. It has a width of 17.32” (43.99 cm) and is rack mountable to a width of 19” (48.26 cm) utilizing a pair of ear mounts (included). There are 4 individual connections for inputs and 4 individual connections for outputs located on the back panel.
The SB-4140 VGA matrix switcher is ideally suited for full HD (high-definition) television or display monitor applications. Functional manual control is achieved through push buttons located on the front panel with a single line LED Display. External functional control is achieved through a RS-232 connection or through the IR remote control. The RS-232 connection allows functions to be controlled by systems like Control4 (drivers included) or any computerized software / hardware control system.
When using this SB-4140 VGA matrix switcher, one-to-many or many-to-one connections can be established. You can easily connect any input device to any output device. You can also establish a single input device to many output devices, eliminating the need to constantly re-route video input and output cables. Any combination of input to output can be achieved. - Supports 4 inputs and 4 outputs
- Supports PC resolutions from 640 x 480 up to 1920 x 1200
- High quality video (VGA to RGBHV) performance
- Low all hostile crosstalk of -83 dB @ 5 MHz
- Switching support for RGBHV in LCD and plasma monitor displays
- ESD rating exceeds 4000 V
- Suitable for Full HD high-resolution video player devices and LCD / plasma monitor displays
- Direct selection via front push buttons with and confirmation data displayed via LED readout

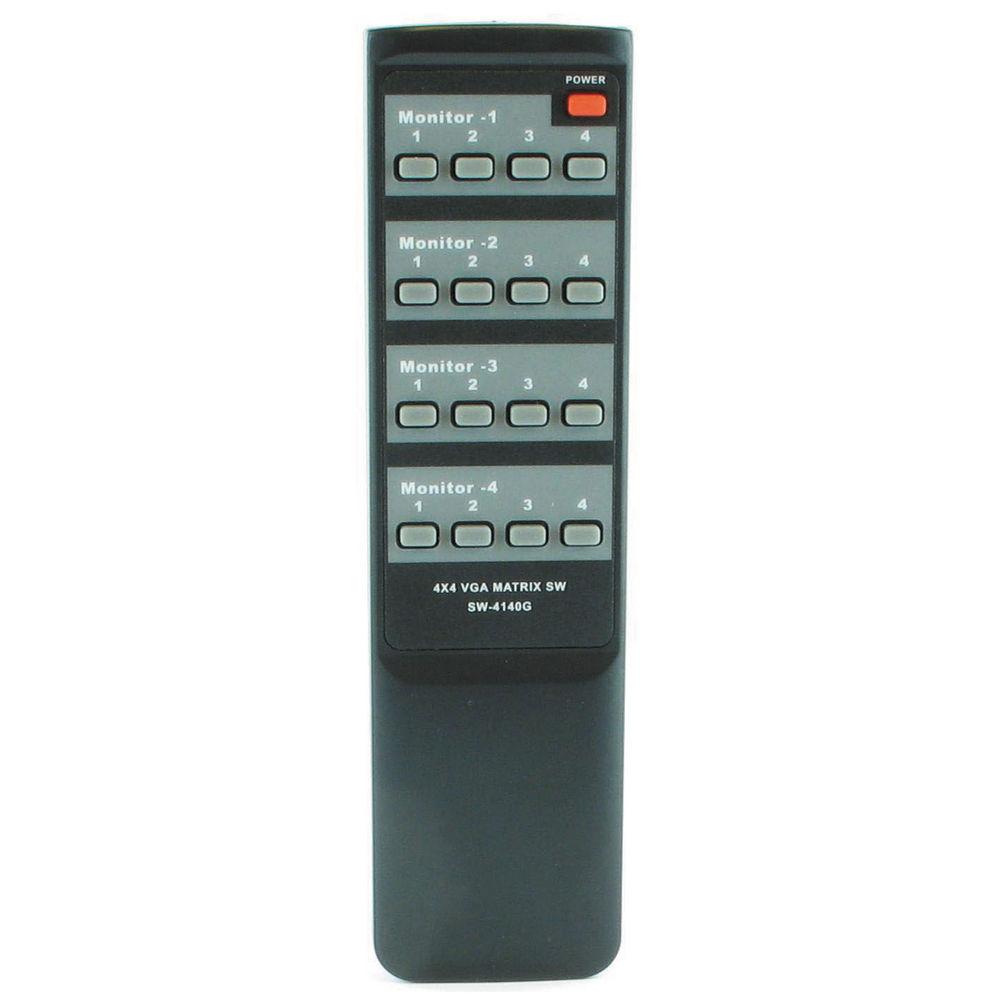

- IR remote control (38 kHz)
- Support RS-232 interface control driver for 95 / 98 / 2000 / XP, A Windows-based control software driver package included
- RS-232 protocol list with user guide is included
- Supports rack mounting to 19" (48.26 cm) width with included ear rack mounts
- Supports lower power consumption with full power load under 950 mA
- Power supply with a universal-type 100 to 230 VAC switch
In the Box Shinybow SB-4140 4 x 4 VGA Matrix Switcher with IR & RS-232 Control IR Remote Control Rack Mounts RS-232 Driver CD (All Windows Operating Systems) User Guide AC / DC Adapter (12 VDC, 500 to 2,000 mA) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-4140 4 x 4 VGA Matrix Switcher with IR & RS-232 Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-4140 Specs | Type | 4 inputs to 4 outputs VGA matrix switcher | | Inputs | 4x VGA (RGBHV) | | Outputs | 4x VGA (RGBHV) | | Video Bandwidth | 380 MHz (-3 dB) 3,200 mVppm
310 MHz (-3 dB) 2 Vpp
R: 325 MHz
G: 325 MHz
B: 325 MHz
H: 110 MHz
V: 110 MHz | | Gain Flatness | 90 MHz, 0.1 dB | | Differential Gain Error | 0.01%, 0.1 dB | | Differential Phase Error | 0.02, 0.1 dB (RL: 150 Ω) | | Settling Time | 15 ns to 0.1% | | All Hostile Crosstalk | -84 dB @ 5 MHz
-54 @ 50 MHz | | Crosstalk | Channel: -56 dB @ 100 MHz | | Slew Rate | 1,000 V/us, G = +1.2 V Step | | Isolation | High Off: -100 dB @ 10 MHz | | Output Current | 100 mA | | Power | CMOS: 500 uA quiescent current | | Controls | IR remote controller (38 kHz), front panel selection buttons with LED readout | | Power Voltage Input | 12 VDC @ 2 A | | Safety Approvals | CE, FCC, RoHS (2002 / 95 / EC) | | Dimensions (WxDxH) | 17.32 x 7.80 x 1.73" (43.99 x 19.81 x 4.39 cm) | | Weight | About 4.3 lb (1.95 kg) with metal case | | | | Package Weight | 8.15 lb | | Box Dimensions (LxWxH) | 20.2 x 11.3 x 3.9" |
