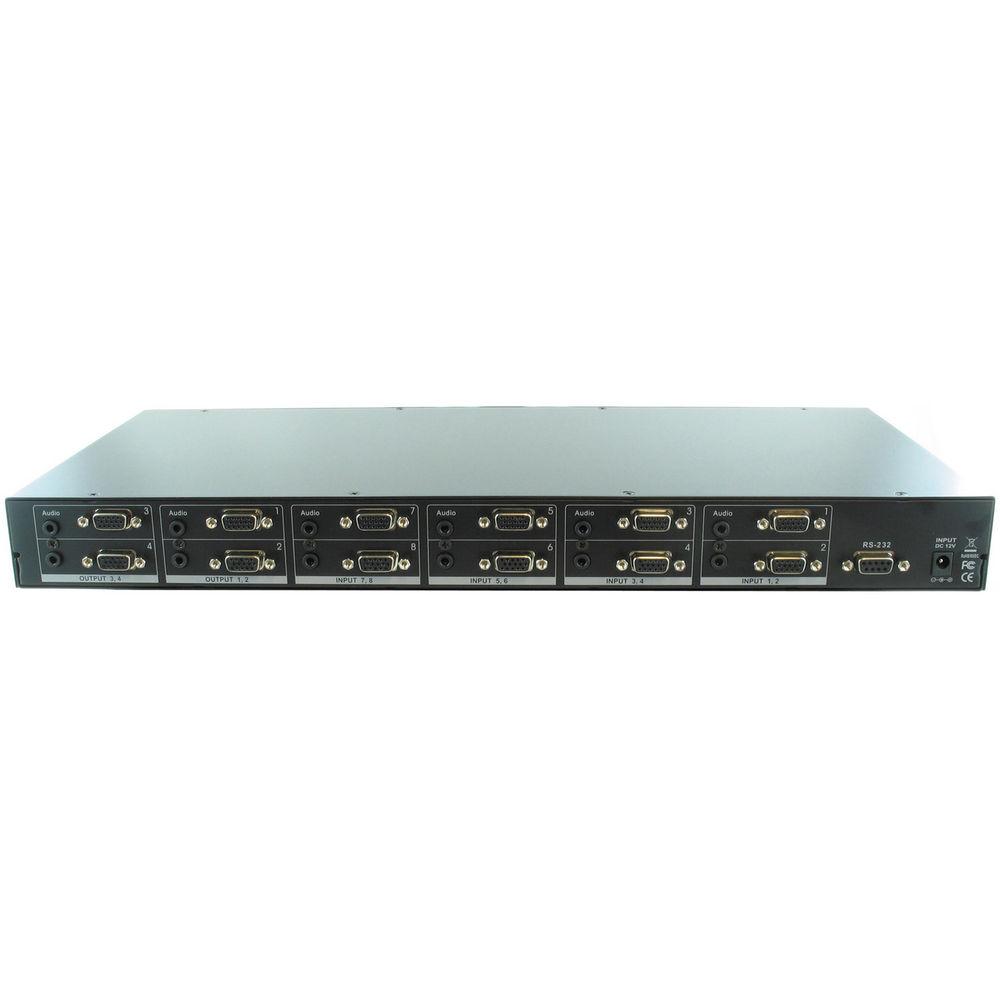

Product description The Shinybow SB-4184 8 x 4 VGA Matrix Routing Switcher is a VGA/RGBHV and stereo audio (AR/AL) switcher with video bandwidth ranging from 310 to 380 MHz. The SB-4184 switcher is rack mountable to a width of 19” utilizing a pair of ear mounts (included). There are 8 individual connections for inputs and 4 individual connections for outputs located on the back panel.
The SB-4184 VGA and audio matrix switch, is suited for full HD (High Definition) LCD TV or plasma display monitor applications. Functional manual control is achieved through push buttons located on the front panel with a single line LED Display. External functional control is achieved through an RS-232 connection or through the IR remote control. The RS-232 connection allows functions to be controlled by a third party controller. A Windows-based control software package is included to provide complete control from a PC.
When using the SB-4184 VGA and audio matrix switch, a one-to-many or many-to-one connection can be established. You can easily connect any input device to any output device. You can also establish a single input device to many output devices, eliminating the need to constantly re-route video/audio input and output cables. Any combination of input to output can be achieved. - Supports 8 inputs and 4 outputs
- Supports PC resolutions from 640 x 480 up to 1920 x 1200
- Video Bandwidth: 380 MHz (-3 dB), 200 mVpp
- Good video (VGA-RGBHV) and stereo audio performance
- Low all hostile crosstalk of -83 dB @ 5 MHz
- Good ESD Rating: Exceeds 4000 V
- Switching support for RGBHV in LCD monitors and plasma displays
- Suitable for Full HD high-resolution video player devices and LCD/plasma monitor displays

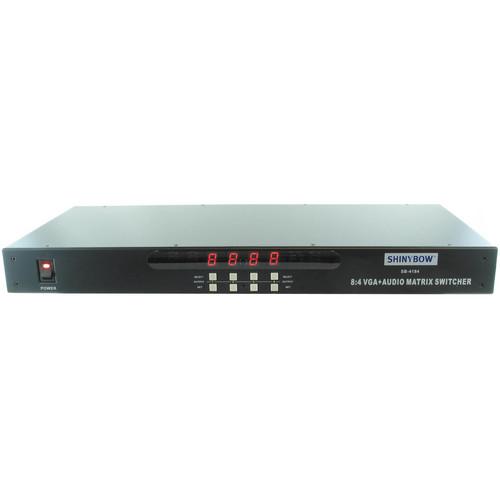

- Direct selection via front push buttons and confirmation data displayed via LED readout

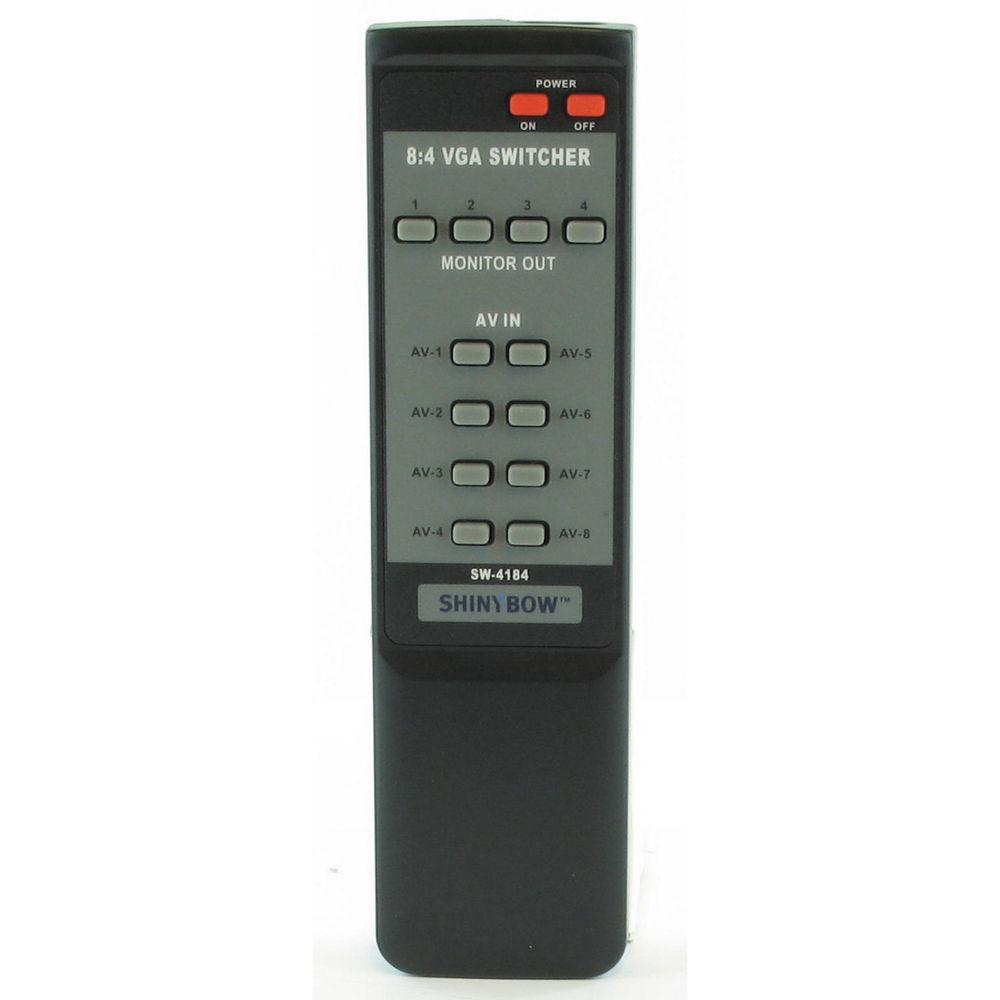

- IR Remote Control (38 kHz) and IR Extender (maximum 984.25' / 300 m)
- Supports RS-232 interface control driver for 95/98/2000/XP; Windows-based control software driver package (included)
- RS-232 protocol list with user guide is included
- Supports rack mounting to 19" (482.6 mm) with ear rack mounts (included)
- Supports lower power consumption with full power load under 550 mA
- Power supply is a universal type 100 to 230 VAC switch
In the Box Shinybow SB-4184 8 x 4 VGA Matrix Routing Switcher IR Remote Control Rack Mounts RS-232 Driver CD (All Windows Operating Systems) Users Guide AC/DC Adapter (12 VDC, 1,000 to 3,000 mA) 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-4184 8 x 4 VGA Matrix Routing Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-4184 Specs | Type | 8 inputs to 4 outputs VGA Matrix Switcher | | Bandwidth | Video
380 MHz (-3 dB) 3,200 mVppm
310 MHz (-3 dB) 2 Vpp
(R: 325 MHz, G: 325 MHz, B: 325 MHz, H: 110 MHz, and V: 110 MHz)
Audio
60 MHz (-3 dB)
(Audio Right: 60 MHz
Audio Left: 60 MHz) | | Audio Frequency Response | 20 Hz to 20 kHz | | Gain Flatness | 90 MHz, 0.1 dB | | Differential Gain Error | 0.01%, 0.1 dB | | Differential Phase Error | 0.02, 0.1 dB (RL: 150 Ω) | | Settling Time | 15 ns to 0.1% | | Crosstalk | All Hostile: -84 dB @ 5 MHz, -54 @ 50 MHz
Channel: -56 dB @ 100 MHz | | Slew Rate | 1,000 V/us, G: +1.2 V step | | Isolation | -100 dB @ 10 MHz | | Output Current | 100 mA | | Power | CMOS: 550 uA quiescent current | | Controls | IR remote controller (38 kHz), front panel selection buttons with LED readout, and RS-232 PC control | | Power Voltage Input | 12 VDC @ 2 A | | Safety Approvals | CE, FCC, and RoHS (2002/95/EC) | | Dimensions (W x D x H) | 17.32 x 7.80 x 1.73" (440 x 200 x 44 mm) | | Weight | 5.2 lb (2.36 kg) with metal case | | | | Package Weight | 8.1 lb | | Box Dimensions (LxWxH) | 20.3 x 11.5 x 3.6" |
