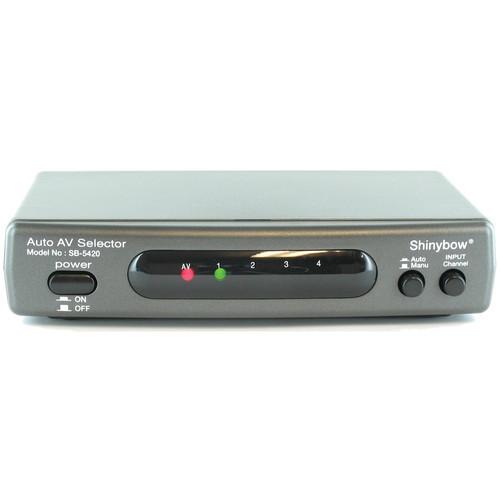

Product description The Shinybow SB-5420 Auto Composite Video/Stereo Audio Switcher is an auto-switching router for composite video and stereo audio signals. The SB-5420 switches from up to four individual composite video inputs to produce two identical composite video outputs. This router is useful for sending signals from source devices such as camcorders, game consoles, DVD players, satellite receivers, set-top boxes, etc., to display devices such as monitors and video projectors. The SB-5420 can eliminate the need to switch cables or to run cables from individual input sources to each display device. The switcher can operate in both automatic and manual modes. When in automatic mode, the SB-5420 will automatically switch to the signal input from the highest-number connected source (when multiple sources are connected). The switcher can be further controlled by selectively turning power on and off to the input devices as needed. Input AV1 is the default and should be used when only a single signal source is connected. When in manual mode, the switcher input can be chosen by toggling through the channel button selections. Note: The SB-5420 switcher does not offer IR remote control - Switches from up to 4 inputs to 2 identical outputs
- Supports composite video and stereo audio signals (R/L)
- Suitable for camcorders, DVD players, set-top boxes, and satellite-device sources and monitor or projector displays
- Push button controls are on the front panel of the switcher
In the Box Shinybow SB-5420 4x2 Automatic Composite Video/Stereo Audio Switcher AC Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5420 4x2 Automatic Composite Video Stereo Audio Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5420 Specs | Type | Switcher: 4 inputs to 2 outputs
Signal: Composite video | | Video Amplifier Bandwidth | 10 MHz | | Input Connectors | 4 x composite video, 4 x stereo audio (R/L) | | Output Connectors | 2 x composite video, 4 x stereo audio (R/L) | | Distortion | Video: <1.2 dB (standard +/- 3 dB)
Audio: <0.6 dB (standard +/- 3 dB) | | Channel Isolation | >50 dB | | Power Consumption | 300 mAh | | DC Power Input | 12 VDC, 420 mAh | | Dimensions (W x D x H) | 7.8 x 5.1 x 1.5" (198 x 130 x 38 mm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 11.25 x 10.1 x 3.1" |
