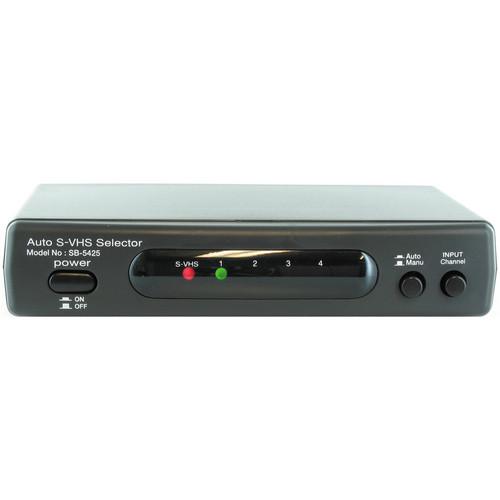

User Manual for Shinybow SB-5425 4x2 Automatic S-Video Stereo Audio Switcher Click to enlarge the picture
Contents of the user manual for the Shinybow SB-5425 4x2 Automatic S-Video Stereo
- Product category: Routers & Switchers Shinybow
- Brand: Shinybow
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Shinybow Routers & Switchers
|
User manual for the Shinybow SB-5425 4x2 Automatic S-Video Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Shinybow product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Shinybow user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Shinybow product will considerably shorten its lifespan!
|
Product description The Shinybow SB-5425 Auto S-Video/Stereo Audio Switcher is an auto-switching router for S-video and stereo audio signals. The SB-5425 switches from up to four individual S-video inputs to produce two identical S-video outputs. This router is useful for sending signals from source devices such as camcorders, game consoles, DVD players, satellite receivers, set-top boxes, etc., to display devices such as monitors and video projectors. The SB-5425 can eliminate the need to switch cables or to run cables from individual input sources to each display device. The switcher can operate in both automatic and manual modes. When in automatic mode, the SB-5425 will automatically switch to the signal input from the highest-number connected source (when multiple sources are connected). The switcher can be further controlled by selectively turning power on and off to the input devices as needed. Input AV1 is the default and should be used when only a single signal source is connected. When in manual mode, the switcher input can be chosen by toggling through the channel button selections. Note: The SB-5425 switcher does not offer IR remote control - Switches from up to 4 inputs to 2 identical outputs
- Supports S-video and stereo audio signals (R/L)
- Suitable for camcorders, DVD players, set-top boxes, and satellite-device sources and monitor or projector displays
- Push button controls are on the front panel of the switcher
In the Box Shinybow SB-5425 4x2 Automatic S-Video/Stereo Audio Switcher AC Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Shinybow SB-5425 4x2 Automatic S-Video Stereo Audio Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersShinybow SB-5425 Specs | Type | Switcher: 4 inputs to 2 outputs
Signal: S-video | | Video Amplifier Bandwidth | 80 MHz | | Input Connectors | 4 x S-video, 4 x stereo audio (R/L) | | Output Connectors | 2 x S-video, 4 x stereo audio (R/L) | | Power Consumption | 300 mAh | | DC Power Input | 12 VDC, 420 mAh | | Dimensions (W x D x H) | 7.8 x 5.1 x 1.5" (198 x 130 x 38 mm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 14.0 lb | | Box Dimensions (LxWxH) | 11.0 x 3.0 x 3.0" |
